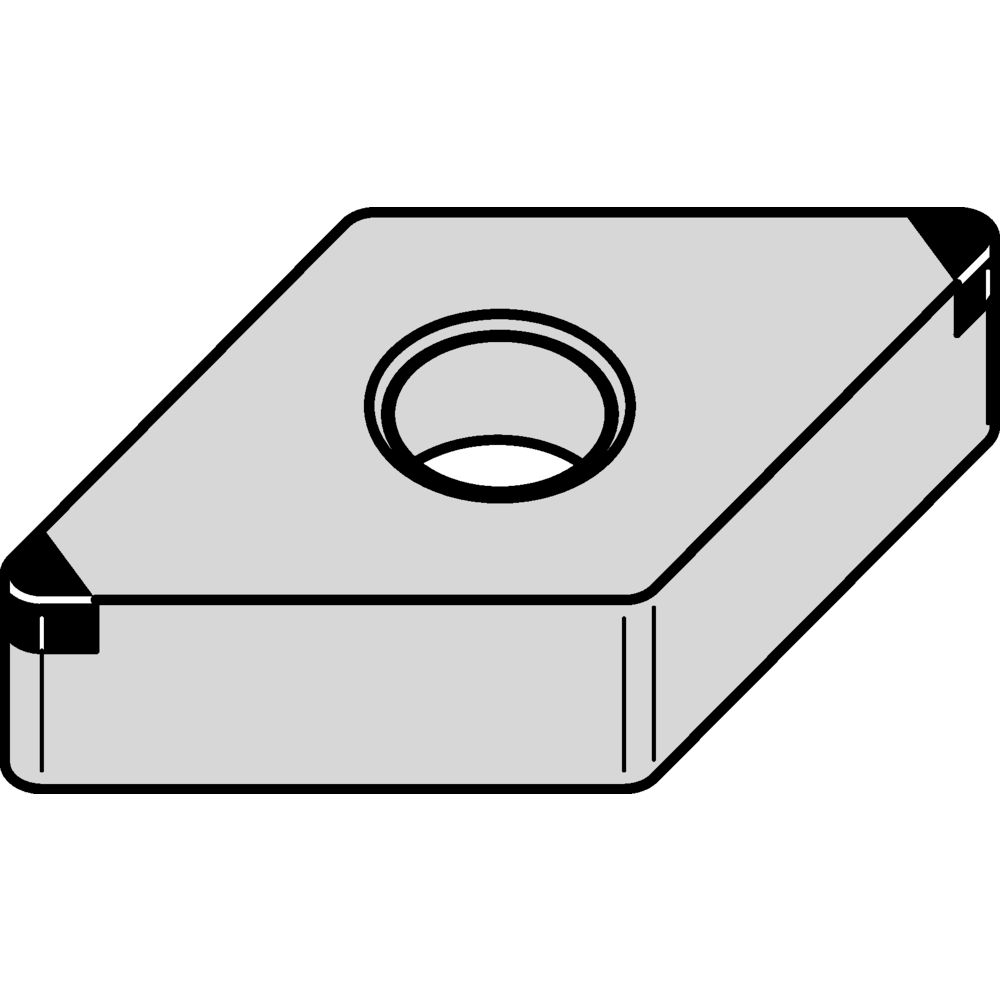

Kennametal • DNGA-FW/MW MT • DNGA150404EFWMT KBH20
Kennametal • DNGA-FW/MW MT • DNGA150404EFWMT KBH20 - Image 2

Kennametal • DNGA-FW/MW MT • DNGA150404EFWMT KBH20

SKU: KEN6904786S/C: 6904786
Usually ships in 5 daysExcluding weekends / Subject to availability

$231.11inc
GST

Price Match

Kenloc™ Inserts

This product doesn't have any features.

More Info
View all:
Technical Details
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
CoatingTiN
Corner Facet Length Inch [BS]0.0170
Corner Facet Length Metric [BS]0.4300
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015625
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialBN-Low CBN
Engineering Insert GeometryNGA_E_FW
Ins Cut Edge Length Inch [L10]0.6104
Ins Cut Edge Length Metric [L10]15.5040
Ins Effect Cut Length Inch [Leff]0.0670
Ins Effect Cut Length Metric [Leff]1.7000
Insert Gage Dimension Inch [M]0.2707
Insert Gage Dimension Metric [M]6.8750
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.2031
Insert Hole Size Metric [D1]5.1600
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting2-Cylindrical Fixing Hole
Insert Num of Cutting Edges2
Insert Num of Indexes2
Insert ShapeD-Diamond/Rhombic 55
Insert Thickness Fraction [S]3/16
Insert Thickness Inch [S]0.1875
Insert Thickness Metric [S]4.7620
Lead Angle ANSI [KRA]32.000
Lead Angle ISO [KRI]23.000
Wiper Radius Inch [RW]0.150000
Wiper Radius Metric [RW]3.8100

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
