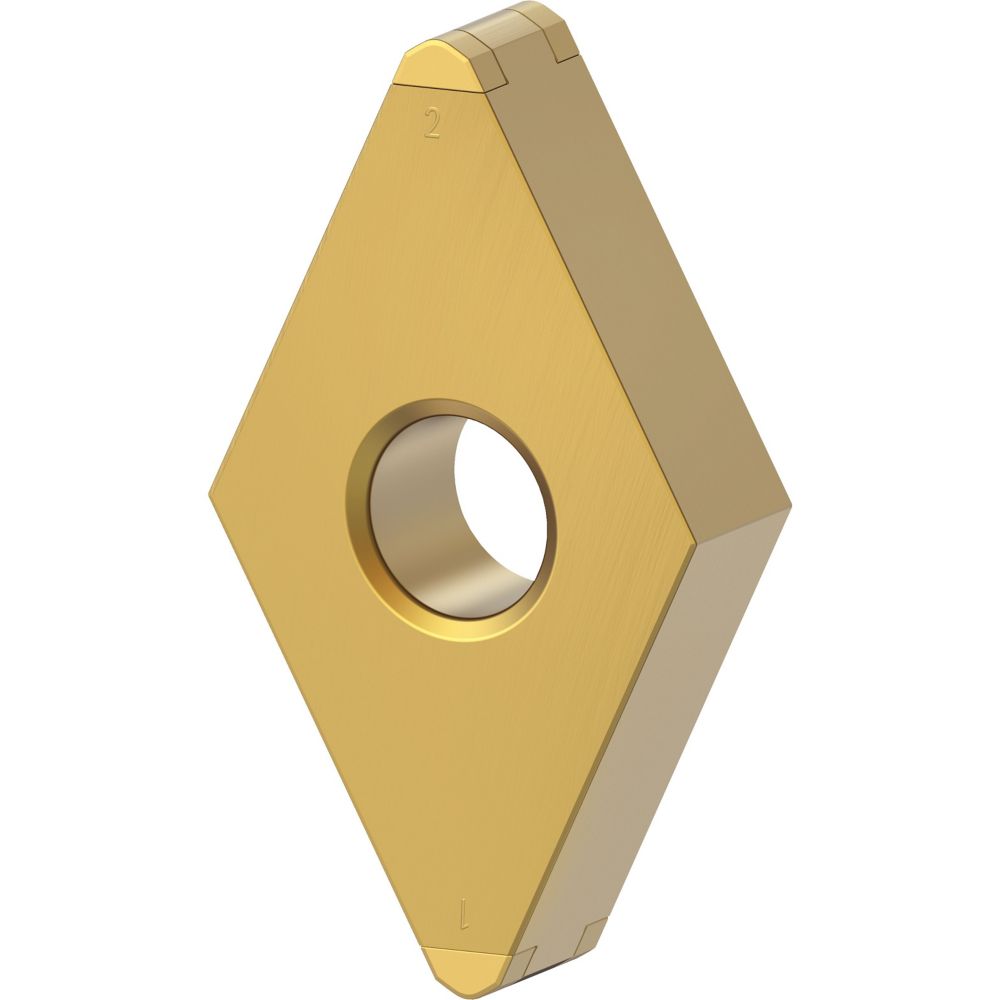

Kennametal • Kenloc™ • Negative Inserts • DNGA • Wiper • Double-Sided Mini Tip • DNGA150608S01515GWDMT KBH10B
Kennametal • Kenloc™ • Negative Inserts • DNGA • Wiper • Double-Sided Mini Tip • DNGA150608S01515GWDMT KBH10B - Image 2

Kennametal • Kenloc™ • Negative Inserts • DNGA • Wiper • Double-Sided Mini Tip • DNGA150608S01515GWDMT KBH10B

SKU: KEN6813701S/C: 6813701
Usually ships in 5 daysExcluding weekends / Subject to availability

$267.41inc
GST

Price Match

ISO Turning Insert • Negative D-Style • GWDMT

This product doesn't have any features.

More Info
View all:

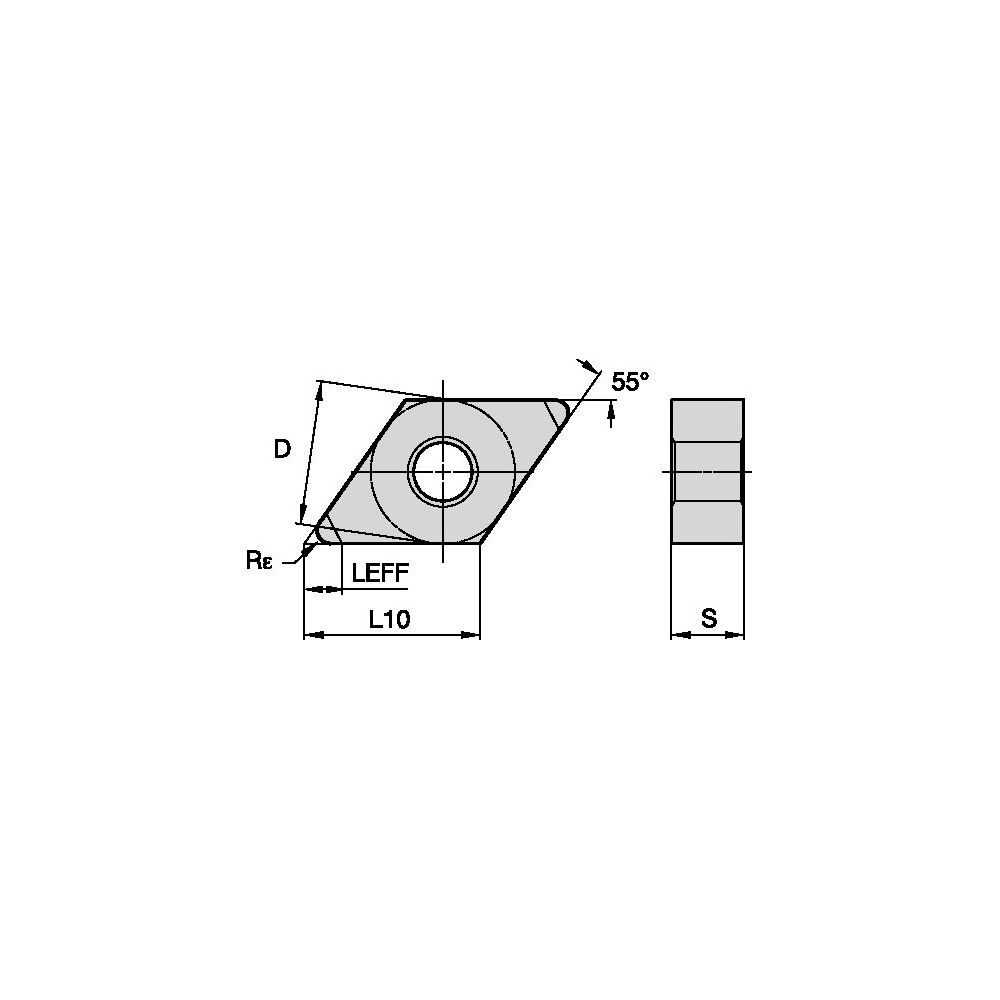

Technical Details
B Gamma Inch [BGAMMA]0.0059
B Gamma Metric [BGAMMA]0.1500
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
CoatingUncoated
Corner Facet Length Inch [BS]0.0264
Corner Facet Length Metric [BS]0.6700
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialBN-Low CBN
Engineering Insert GeometryGA_S01515GWDMT
Ins Cut Edge Length Inch [L10]0.6104
Ins Cut Edge Length Metric [L10]15.5040
Ins Effect Cut Length Inch [Leff]0.0734
Ins Effect Cut Length Metric [Leff]1.8650
Insert Gage Dimension Inch [M]0.2366
Insert Gage Dimension Metric [M]6.0110
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.2031
Insert Hole Size Metric [D1]5.1600
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting2-Cylindrical Fixing Hole
Insert Num of Cutting Edges4
Insert ShapeD-Diamond/Rhombic 55
Insert Thickness Fraction [S]1/4
Insert Thickness Inch [S]0.2500
Insert Thickness Metric [S]6.3500
Lead Angle ANSI [KRA]32.000
Lead Angle ISO [KRI]23.000
Wiper Radius Inch [RW]0.300000
Wiper Radius Metric [RW]7.6200
