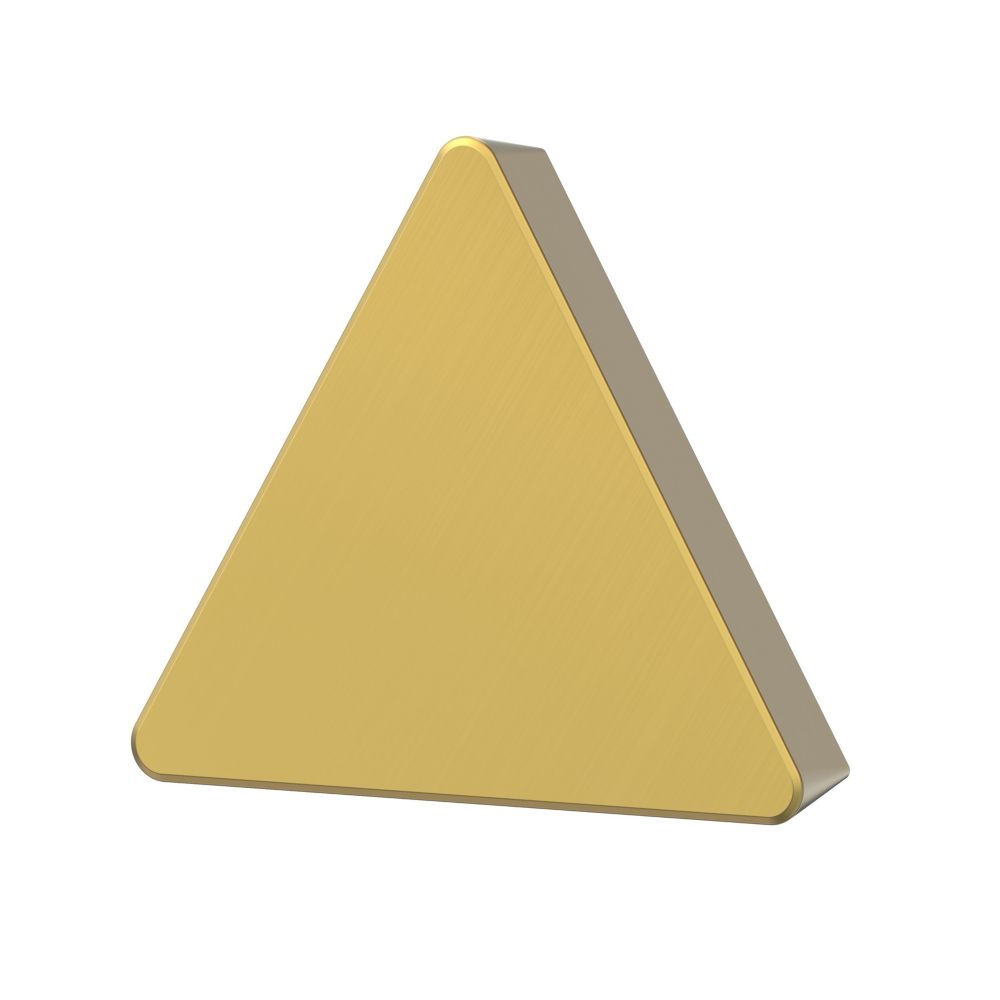

Kennametal • Kendex™ • Positive Inserts • TPGN • TPGN110308T01020 KYHK15B
Kennametal • Kendex™ • Positive Inserts • TPGN • TPGN110308T01020 KYHK15B - Image 2

Kennametal • Kendex™ • Positive Inserts • TPGN • TPGN110308T01020 KYHK15B

SKU: KEN6770886S/C: 6770886
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$17.79inc
GSTEACH

Price Match

ISO Turning Insert • Positive T-Style

This product doesn't have any features.

More Info
View all:

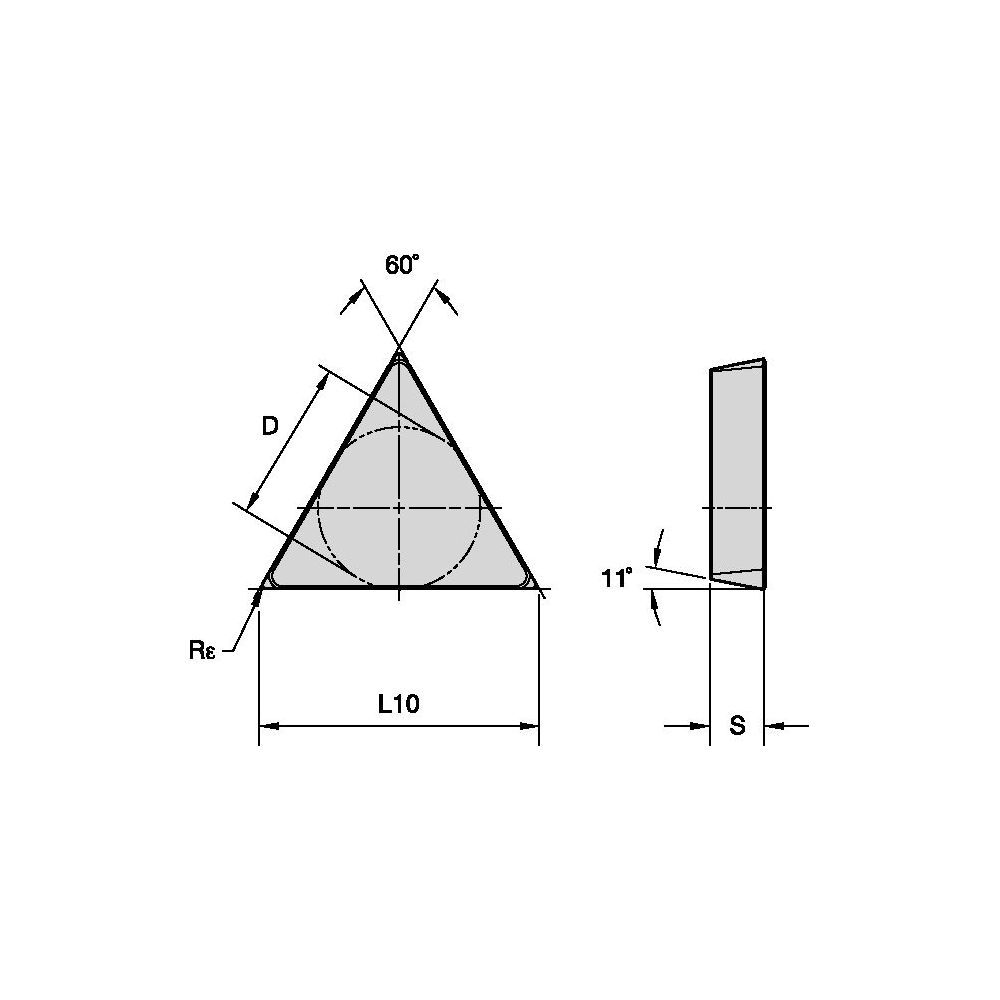

Technical Details
B Gamma Inch [BGAMMA]0.0039
B Gamma Metric [BGAMMA]0.1000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]11.000
Clearance Angle Minor [ALPHANM]11.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.7940
Cutting Tool MaterialCeramic-Si
Engineering Insert GeometryPGN_T01020
Ins Cut Edge Length Inch [L10]0.4330
Ins Cut Edge Length Metric [L10]10.9990
Insert Gage Dimension Inch [M]0.3438
Insert Gage Dimension Metric [M]8.7310
Insert HandN - Neutral
Insert IC Size Fraction [D]1/4
Insert IC Size Inch [D]0.2500
Insert IC Size Metric [D]6.3500
Insert Mounting1-Without Fixing Hole
Insert Num of Cutting Edges3
Insert ShapeT-Triangle 60
Insert Thickness Fraction [S]1/8
Insert Thickness Inch [S]0.1250
Insert Thickness Metric [S]3.1750

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
