Kennametal • Kendex™ • Negative Inserts • ENGN • ENGN130708S02025 KYHK15B

Name: Kennametal • Kendex™ • Negative Inserts • ENGN • ENGN130708S02025 KYHK15B
SKU: KEN6770762
Availability: InStock

SKU: KEN6770762S/C: 6770762

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$20.33inc
GSTEACH

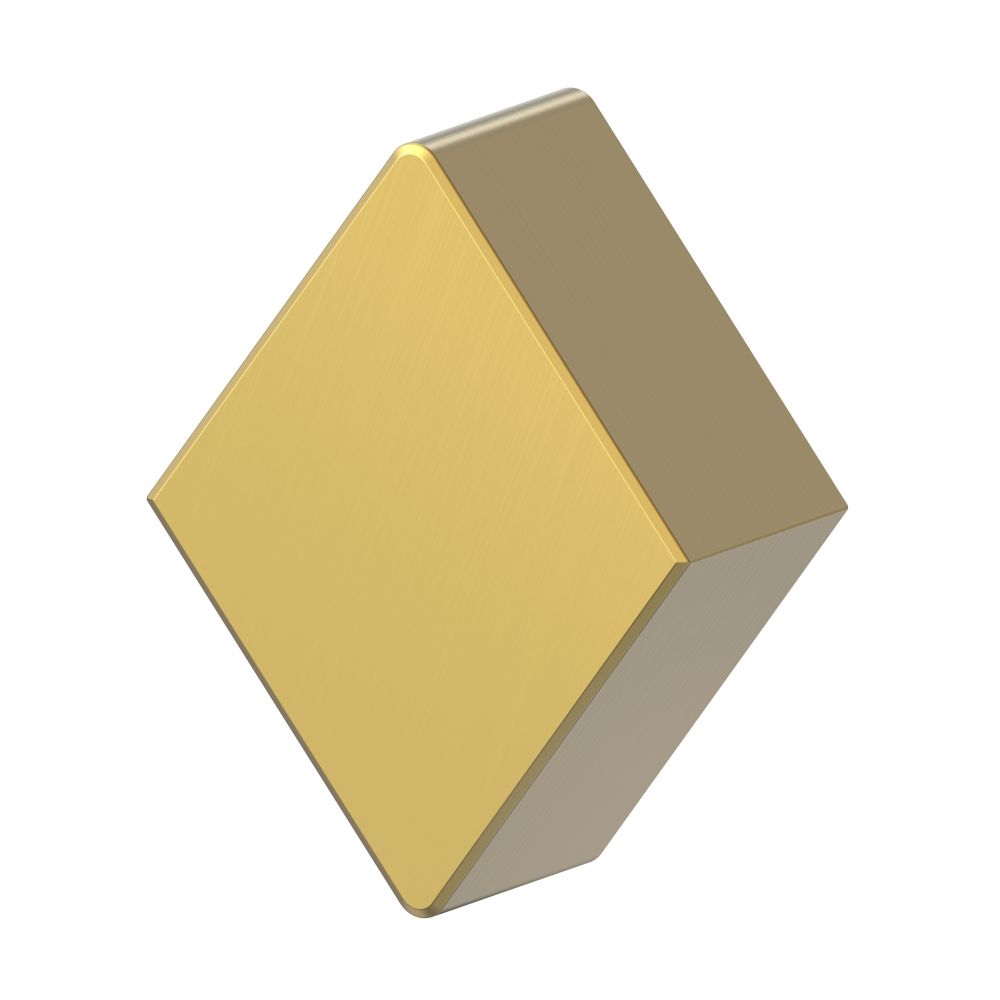

ISO Turning Insert • Negative E-Style

This product doesn't have any features.

Technical Details

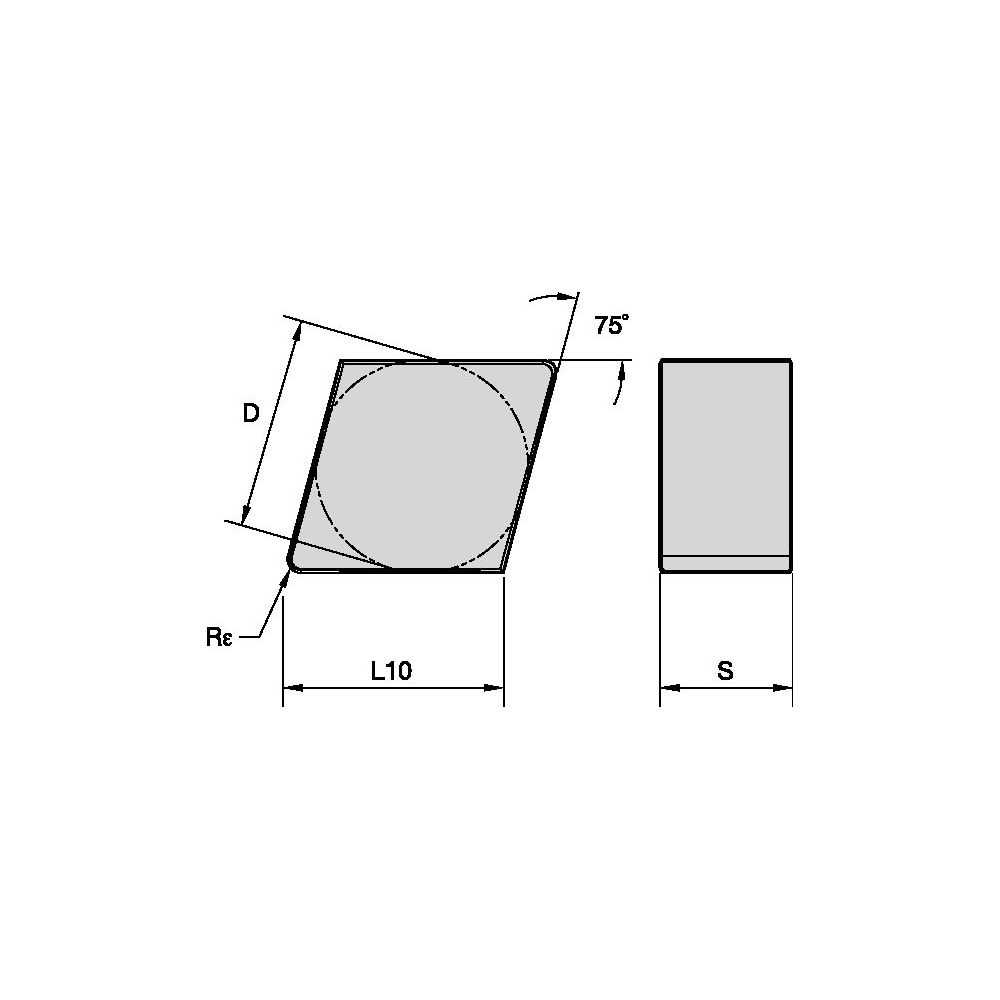

B Gamma Inch [BGAMMA]	0.0079
B Gamma Metric [BGAMMA]	0.2000
Chipbreaker	0-No Chipbreaker
Clearance Angle Major [ALPHAN]	0.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	1/32
Corner Radius Inch [REPSILON]	0.031250
Corner Radius Metric [REPSILON]	0.8000
Cutting Tool Material	Ceramic-Si
Engineering Insert Geometry	NGN_S02025
Ins Cut Edge Length Inch [L10]	0.5176
Ins Cut Edge Length Metric [L10]	13.1480
Insert Gage Dimension Inch [M]	0.1406
Insert Gage Dimension Metric [M]	3.5710
Insert Hand	N - Neutral
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	1-Without Fixing Hole
Insert Num of Cutting Edges	4
Insert Shape	E-Diamond/Rhombic 75
Insert Thickness Fraction [S]	5/16
Insert Thickness Inch [S]	0.3125
Insert Thickness Metric [S]	7.9400
