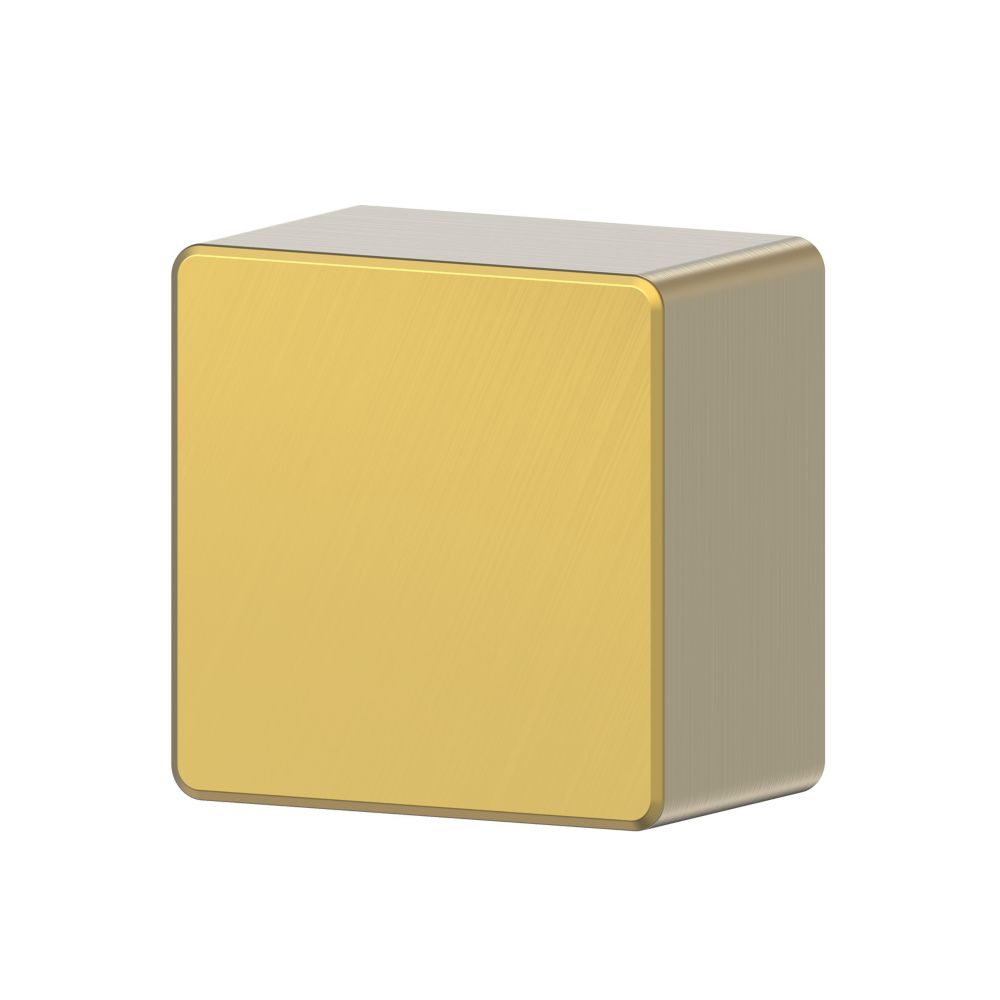

Kennametal • Kendex™ • Negative Inserts • SNGN • SNGN120716S20015 KYHK15B
Kennametal • Kendex™ • Negative Inserts • SNGN • SNGN120716S20015 KYHK15B - Image 2

Kennametal • Kendex™ • Negative Inserts • SNGN • SNGN120716S20015 KYHK15B

SKU: KEN6770756S/C: 6770756
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$20.77inc
GSTEACH

Price Match

ISO Turning Insert • Negative S-Style

This product doesn't have any features.

More Info
View all:

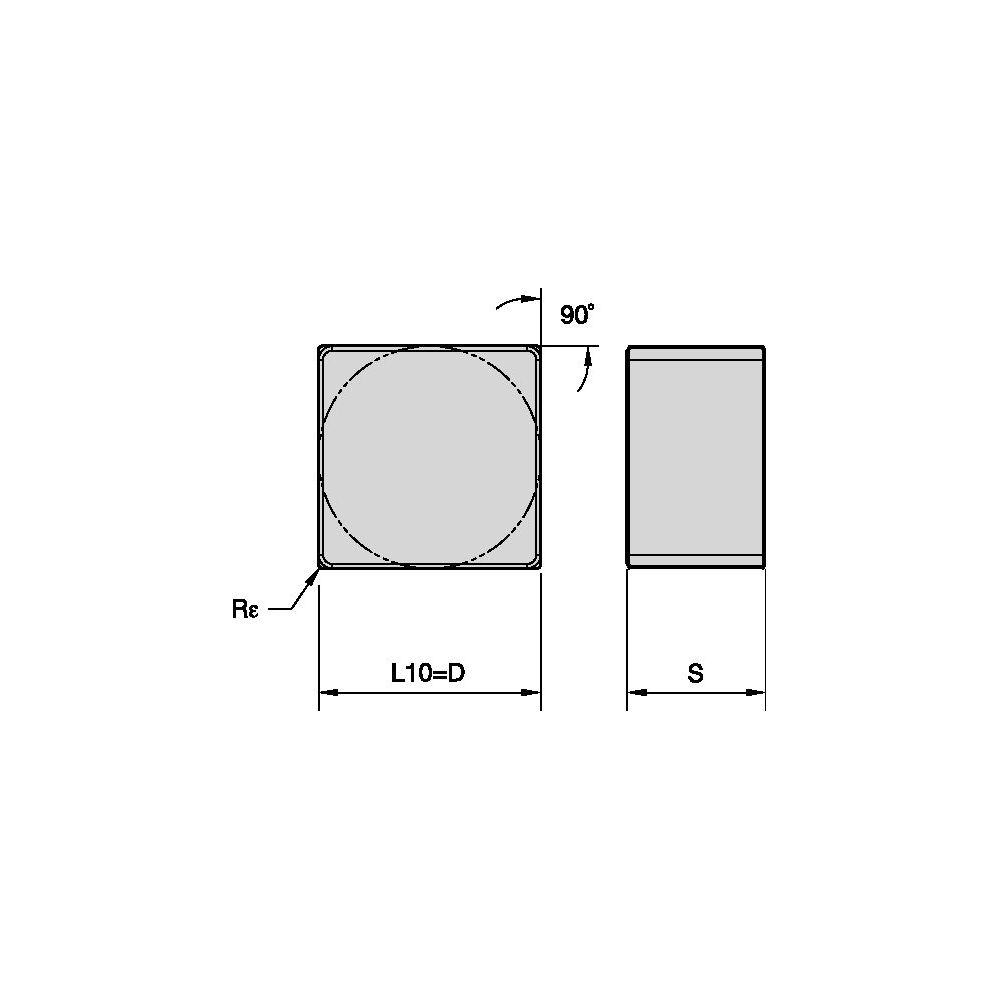

Technical Details
B Gamma Inch [BGAMMA]0.0787
B Gamma Metric [BGAMMA]0.2000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/16
Corner Radius Inch [REPSILON]0.062500
Corner Radius Metric [REPSILON]1.5880
Cutting Tool MaterialCeramic-Si
Engineering Insert GeometryNGN_S20015
Ins Cut Edge Length Inch [L10]0.5000
Ins Cut Edge Length Metric [L10]12.7000
Insert Gage Dimension Inch [M]0.0777
Insert Gage Dimension Metric [M]1.9730
Insert HandN - Neutral
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Length Inch [LI]0.5000
Insert Length Metric [LI]12.7000
Insert Mounting1-Without Fixing Hole
Insert Num of Cutting Edges8
Insert ShapeS-Square 90
Insert Thickness Fraction [S]5/16
Insert Thickness Inch [S]0.3125
Insert Thickness Metric [S]7.9380
Insert Width Inch [W]0.5000
Insert Width Metric [W]12.7000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
