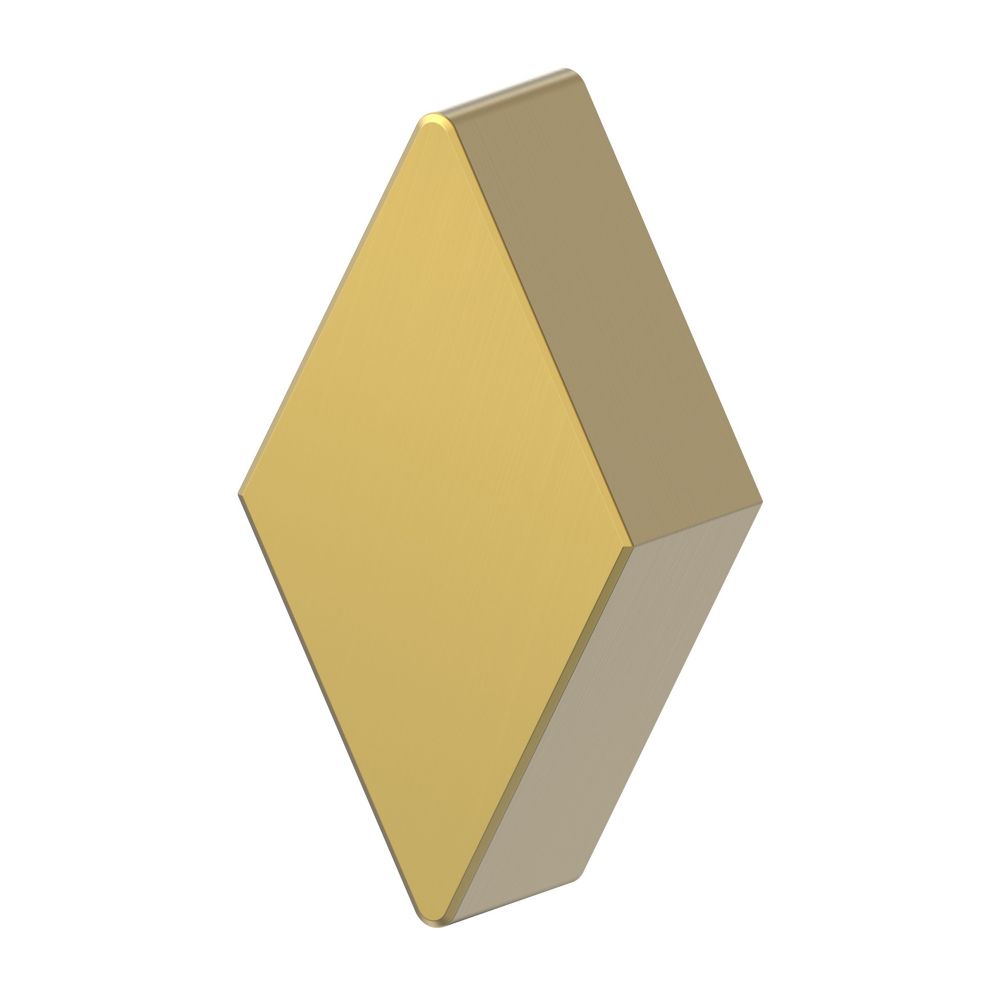

Kennametal • Kendex™ • Negative Inserts • DNGN • DNGN150708S02025 KYHK15B
Kennametal • Kendex™ • Negative Inserts • DNGN • DNGN150708S02025 KYHK15B - Image 2

Kennametal • Kendex™ • Negative Inserts • DNGN • DNGN150708S02025 KYHK15B

SKU: KEN6770734S/C: 6770734
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$22.79inc
GSTEACH

Price Match

ISO Turning Insert • Negative D-Style

This product doesn't have any features.

More Info
View all:
Technical Details

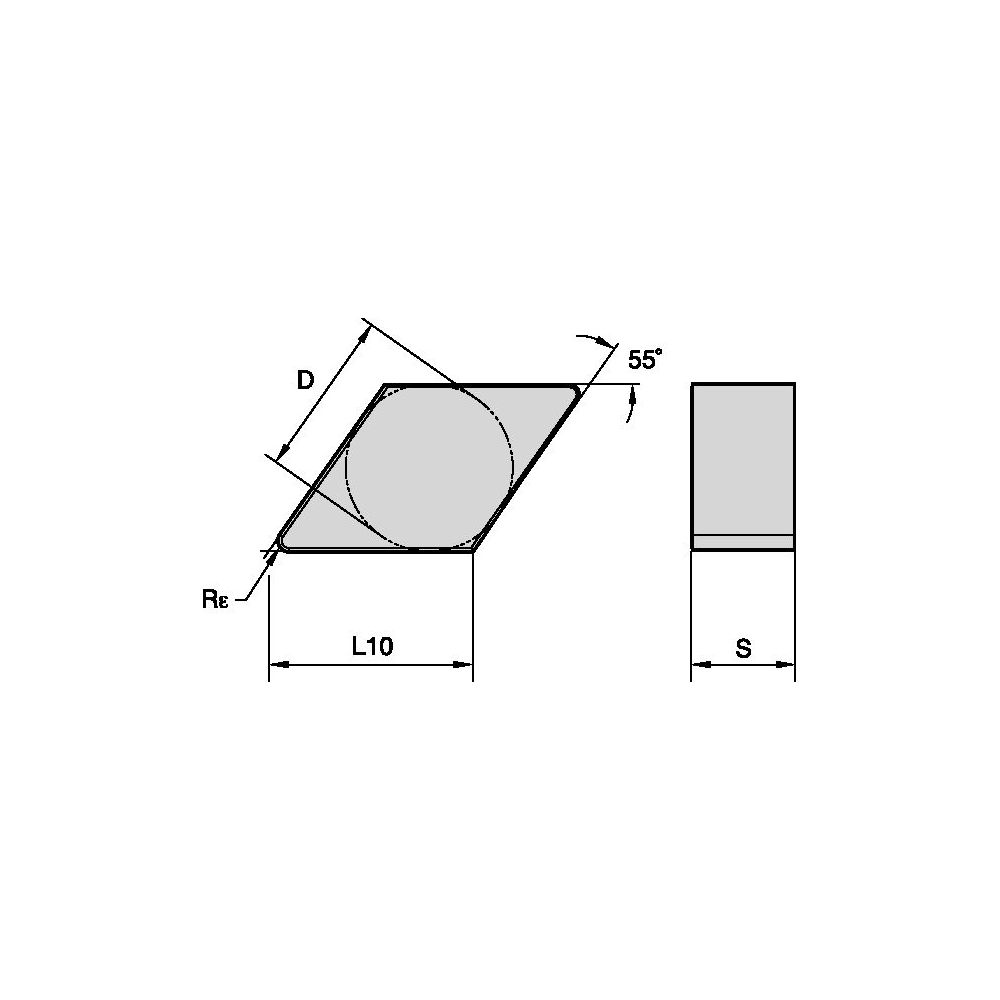

B Gamma Inch [BGAMMA]0.0079
B Gamma Metric [BGAMMA]0.2000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialCeramic-Si
Engineering Insert GeometryNGN_S02025
Ins Cut Edge Length Inch [L10]0.6104
Ins Cut Edge Length Metric [L10]15.5040
Insert Gage Dimension Inch [M]0.2550
Insert Gage Dimension Metric [M]6.4770
Insert HandN - Neutral
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting1-Without Fixing Hole
Insert Num of Cutting Edges4
Insert ShapeD-Diamond/Rhombic 55
Insert Thickness Fraction [S]5/16
Insert Thickness Inch [S]0.3125
Insert Thickness Metric [S]7.9400

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
