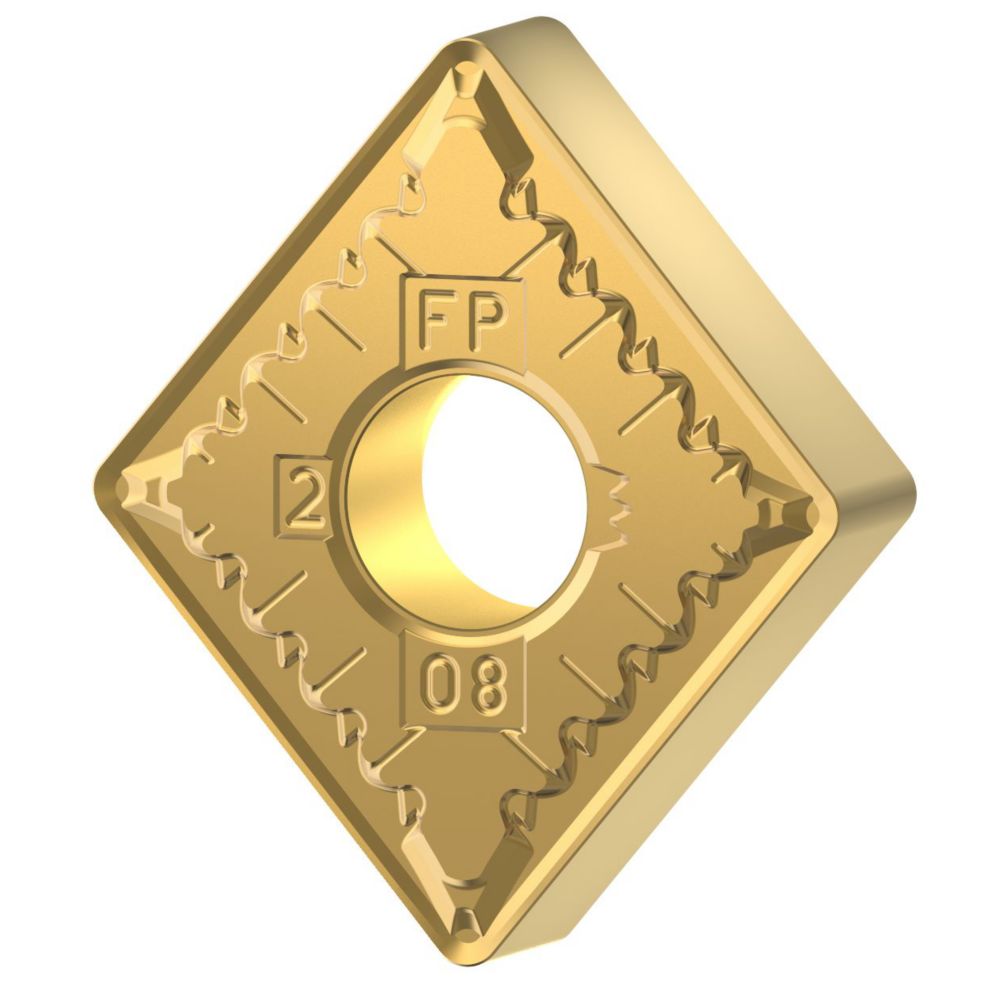

Kennametal • Negative Inserts • CNMG-FP • CNMG120412FP KCS10B

Name: Kennametal • Negative Inserts • CNMG-FP • CNMG120412FP KCS10B
SKU: KEN6687083
Availability: InStock

SKU: KEN6687083S/C: 6687083

Usually ships in 5 days

$14.14inc
GST

Kenloc™ Inserts

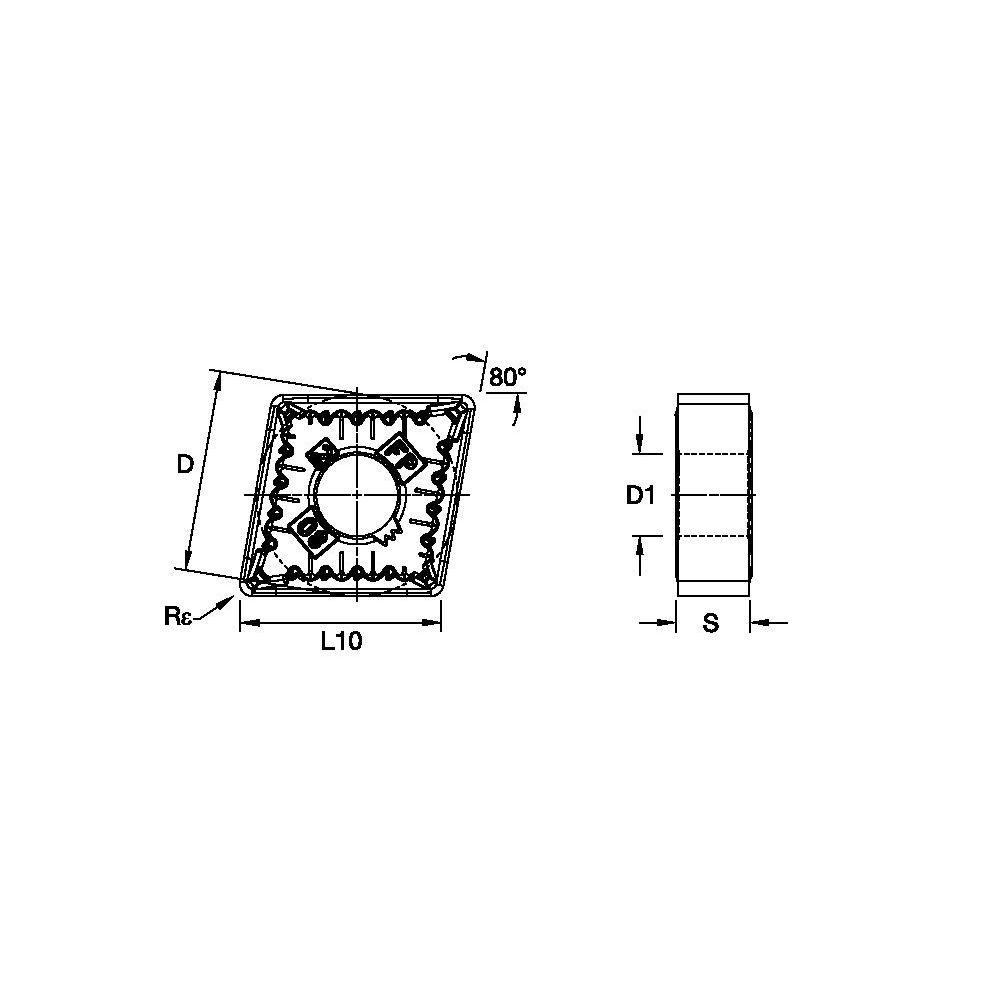

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	FP
Clearance Angle Major [ALPHAN]	0.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	3/64
Corner Radius Inch [REPSILON]	0.046875
Corner Radius Metric [REPSILON]	1.2000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MG_FP
Ins Cut Edge Length Inch [L10]	0.5077
Ins Cut Edge Length Metric [L10]	12.8960
Insert Gage Dimension Inch [M]	0.1129
Insert Gage Dimension Metric [M]	2.8670
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.2030
Insert Hole Size Metric [D1]	5.1560
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	8
Insert Rake Angle [GAMMA]	15.000
Insert Shape	C-Diamond/Rhombic 80
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7630
