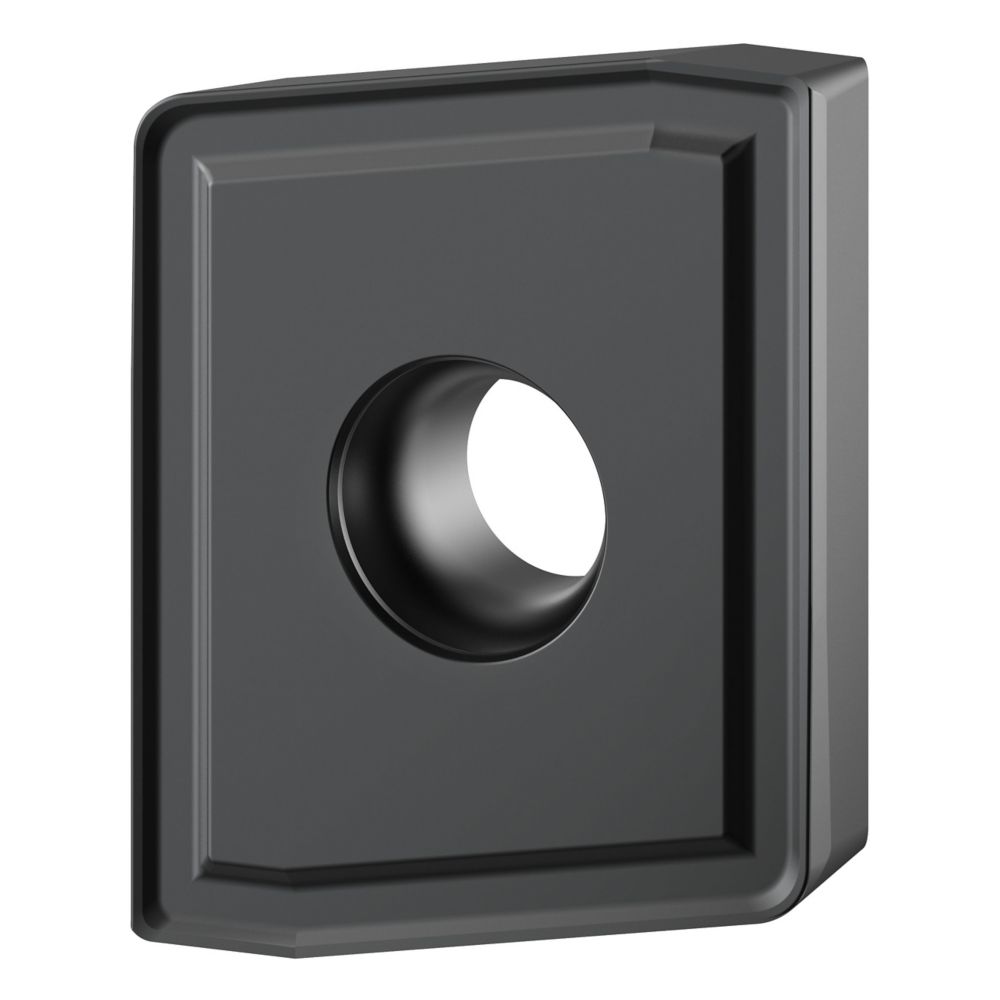

Kennametal • KSEM PLUS™ • Outboard Insert • DFC-HPF Geometry • DFC05T312D32HPF KCU40
Kennametal • KSEM PLUS™ • Outboard Insert • DFC-HPF Geometry • DFC05T312D32HPF KCU40 - Image 2

Kennametal • KSEM PLUS™ • Outboard Insert • DFC-HPF Geometry • DFC05T312D32HPF KCU40

SKU: KEN6379469S/C: 6379469
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$25.16inc
GSTEACH

Price Match

Modular Drilling • Carbide Insert for KSEM PLUS™ B1 Heads

  • Drilling insert for primary application in steels and high temperature alloys
  • DFC inserts provide lateral guidance and good hole quality
  • HPF geometry for higher hole quality
  • Two cutting edges
  • Primary workpiece materials include: Steel, Stainless Steel, Cast Iron, High-Temp Alloys
  • Secondary workpiece materials include: Non-Ferrous Materials
More Info
View all:

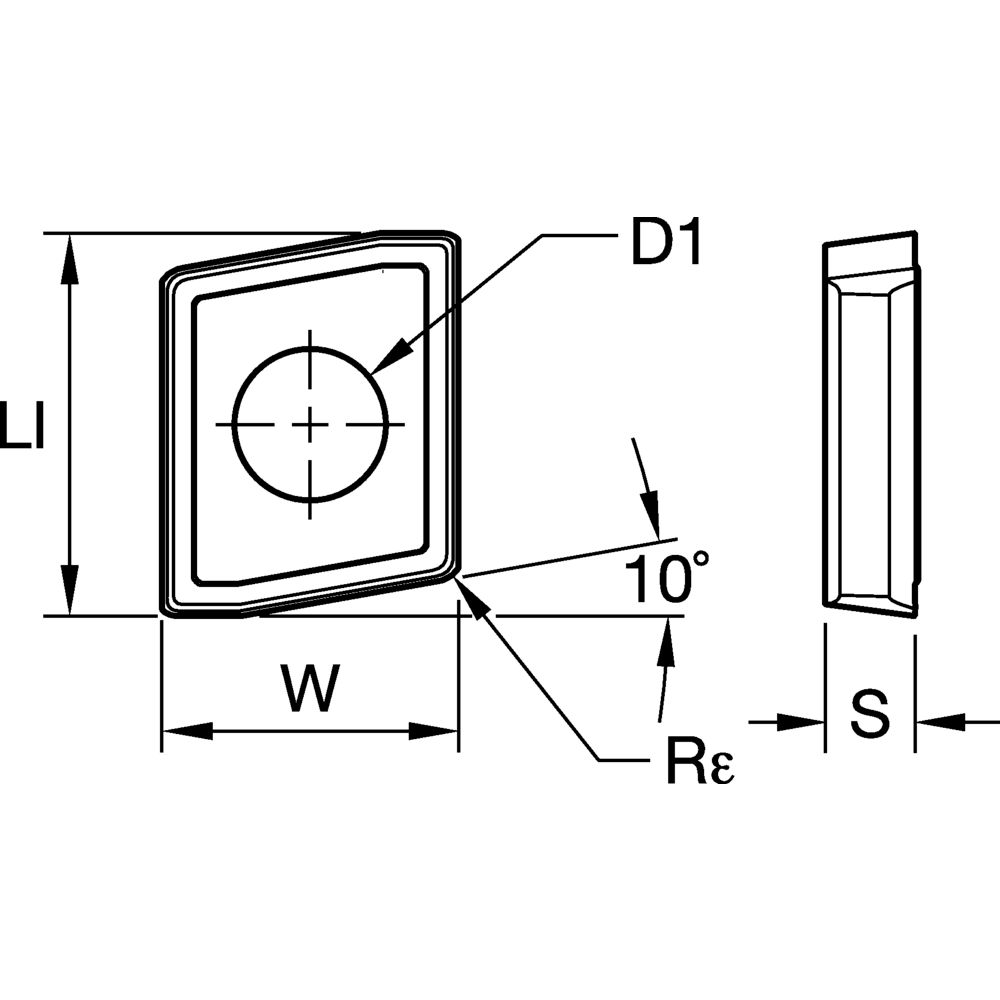

Technical Details
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationHPF
Clearance Angle Major [ALPHAN]7.5000
CoatingTiAlN
Corner Facet Length Inch [BS]0.1070
Corner Facet Length Metric [BS]2.7250
Corner Radius Frac [REPSILON]3/64
Corner Radius Inch [REPSILON]0.046875
Corner Radius Metric [REPSILON]1.2000
Cutting Tool MaterialCarbide
Engineering Insert GeometryDFC-HPF
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1339
Insert Hole Size Metric [D1]3.4000
Insert Length Inch [LI]0.4724
Insert Length Metric [LI]12.0000
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert ShapeD-Diamond/Rhombic 90
Insert Thickness Inch [S]0.1476
Insert Thickness Metric [S]3.7500
Insert Width Inch [W]0.3720
Insert Width Metric [W]9.4500

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
