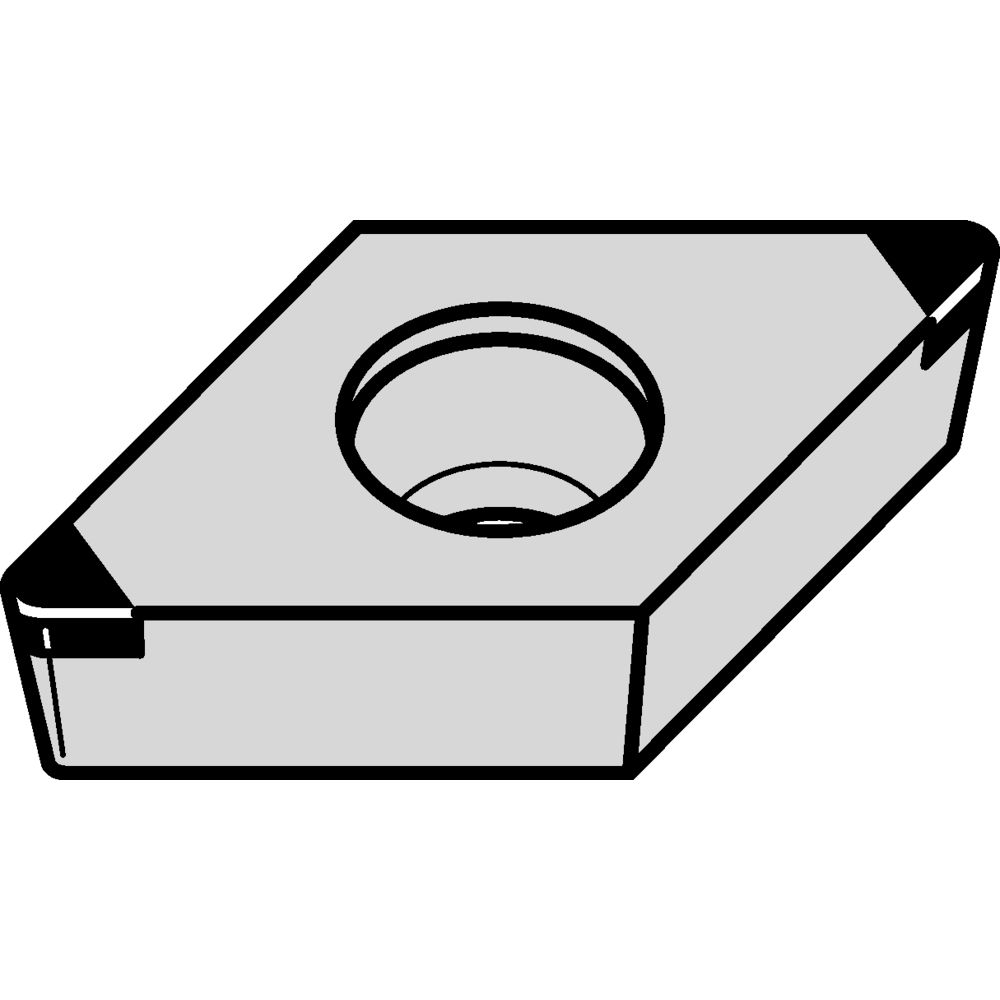

Kennametal • DCGW • Light Machining • DCGW11T308S01015FWMT KBH10

Name: Kennametal • DCGW • Light Machining • DCGW11T308S01015FWMT KBH10
SKU: KEN6296010
Availability: InStock

SKU: KEN6296010S/C: 6296010

Usually ships in 5 days

$153.67inc
GST

Hard Turning Materials

This product doesn't have any features.

Technical Details
B Gamma Inch [BGAMMA]	0.0040
B Gamma Metric [BGAMMA]	0.1000
Chipbreaker	0-No Chipbreaker
Clearance Angle Major [ALPHAN]	7.000
Clearance Angle Minor [ALPHANM]	7.000
Coating	Uncoated
Corner Facet Length Inch [BS]	0.0320
Corner Facet Length Metric [BS]	0.8100
Corner Radius Frac [REPSILON]	1/32
Corner Radius Inch [REPSILON]	0.031500
Corner Radius Metric [REPSILON]	0.8000
Cutting Tool Material	BN-Low CBN
Engineering Insert Geometry	CGW_S01015_FW_MT
Ins Cut Edge Length Inch [L10]	0.4578
Ins Cut Edge Length Metric [L10]	11.6280
Ins Effect Cut Length Inch [Leff]	0.1470
Ins Effect Cut Length Metric [Leff]	3.7300
Insert Gage Dimension Inch [M]	0.1790
Insert Gage Dimension Metric [M]	4.5470
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1730
Insert Hole Size Metric [D1]	4.4000
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges	2
Insert Shape	D-Diamond/Rhombic 55
Insert Thickness Fraction [S]	5/32
Insert Thickness Inch [S]	0.1563
Insert Thickness Metric [S]	3.9700
Lead Angle ANSI [KRA]	32.000
Lead Angle ISO [KRI]	23.000
Wiper Radius Inch [RW]	0.200000
Wiper Radius Metric [RW]	5.0800
