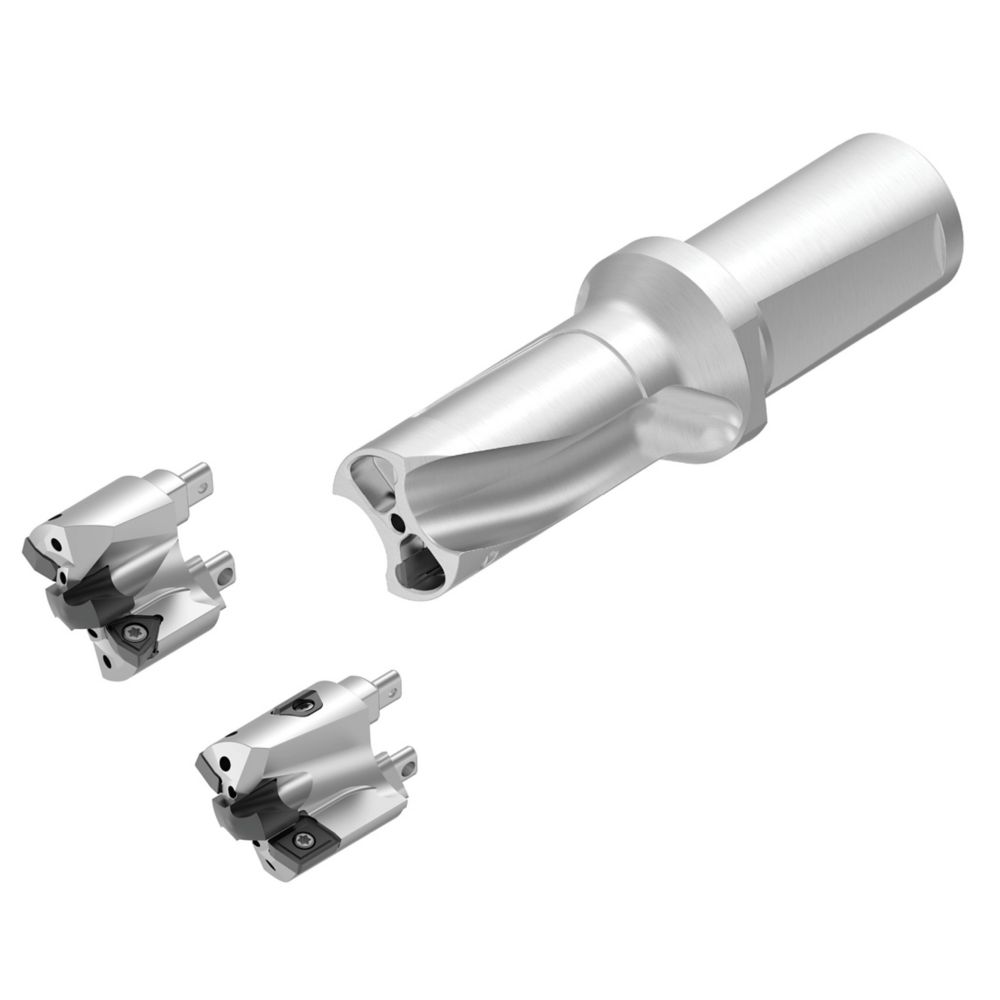

Kennametal • KSEM PLUS™ • Drill Body • 1.5 x D • WD Shank • Metric • WD32FDS32082M

Name: Kennametal • KSEM PLUS™ • Drill Body • 1.5 x D • WD Shank • Metric • WD32FDS32082M
SKU: KEN6123571
Availability: InStock

SKU: KEN6123571S/C: 6123571Barcode: 4056544450425

Usually ships in 5 days

$871.20inc
GST

Modular Drilling • Whistle Notch™ Shank (WD)

Use KSEM PLUS™ A1 head for lowest cost per hole.
Use KSEM PLUS™ B1 head for challenging conditions like stacked plates, cross holes, and inclined exits.

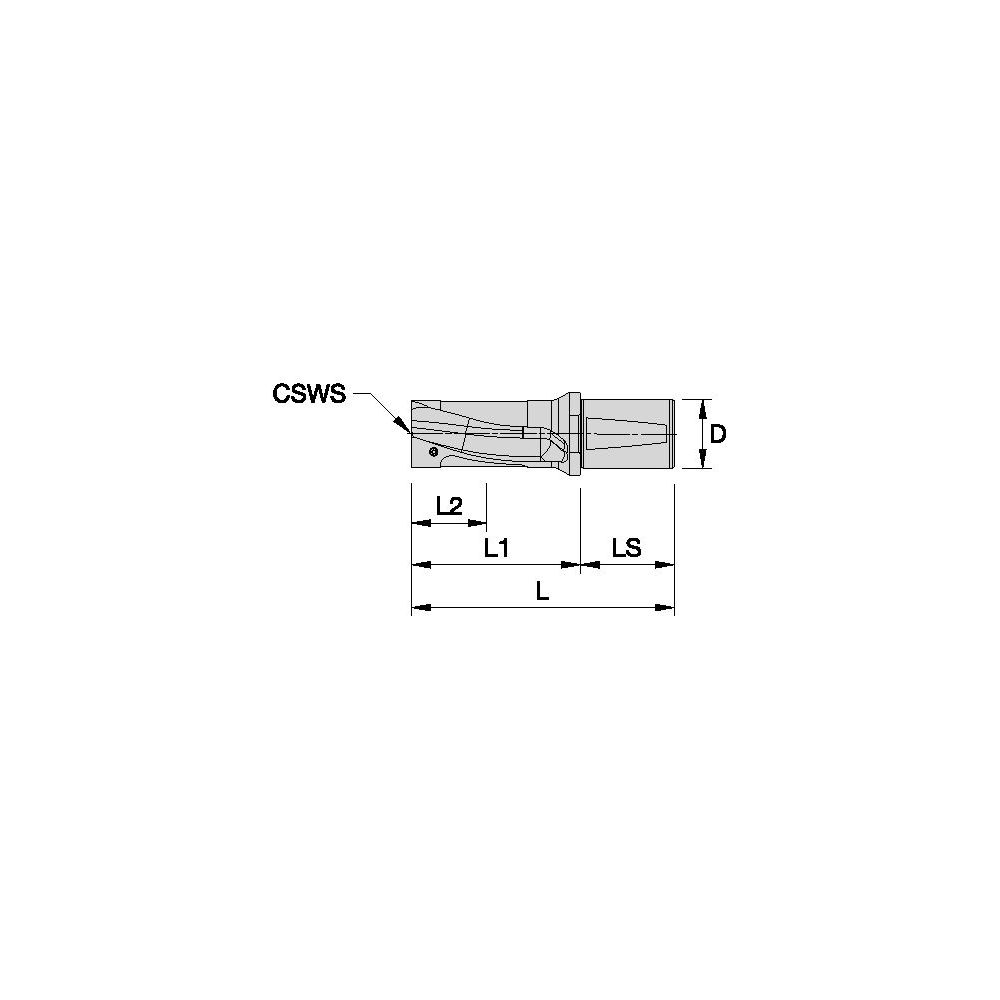

Technical Details
Adapter Style Machine Side	Whistle Drive 2
Adapter Type Machine Side	Cylindrical
Adapter Type Workpiece Side	FDS - Flexible Drill System
Adapter/Shank/Bore Dia Inch [D]	1.2600
Adapter/Shank/Bore Dia Metric [D]	32.0000
Body Dia 1 Workpiece Side Inch [D2]	1.2010
Body Dia 1 Workpiece Side Metric [D2]	30.5000
Body Dia Machine Side Inch [D5]	1.6500
Body Dia Machine Side Metric [D5]	41.9000
Centreline Height Inch [H1]	0.0000
Centreline Height Metric [H1]	0.0000
Clamping LG Mach Side Inch [L9MS]	2.2830
Clamping LG Mach Side Metric [L9MS]	58.0000
Coolant Hole Dia Inch [A]	0.2360
Coolant Hole Dia Metric [A]	6.0000
Coolant Supply	Yes
Front End Tool Type	Modular Adapter
Functional Length Inch [LF]	3.2280
Functional Length Metric [LF]	82.0000
Gage Length 1 Inch [L1]	3.2280
Gage Length 1 Metric [L1]	82.0000
Hand of Tool	N - Neutral
Overall Length Inch [L]	5.5120
Overall Length Metric [L]	140.0000
Protruding Length Inch [LPR]	3.2280
Protruding Length Metric [LPR]	82.0000
Shank Length Inch [LS]	2.2830
Shank Length Metric [LS]	58.0000
System Size Workpiece Side [CSWS]	FDS32
Tool Assembly Length Inch [LTA]	3.2280
Tool Assembly Length Metric [LTA]	82.0000
Usable Length Inch [L2]	1.3390
Usable Length Metric [L2]	34.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
