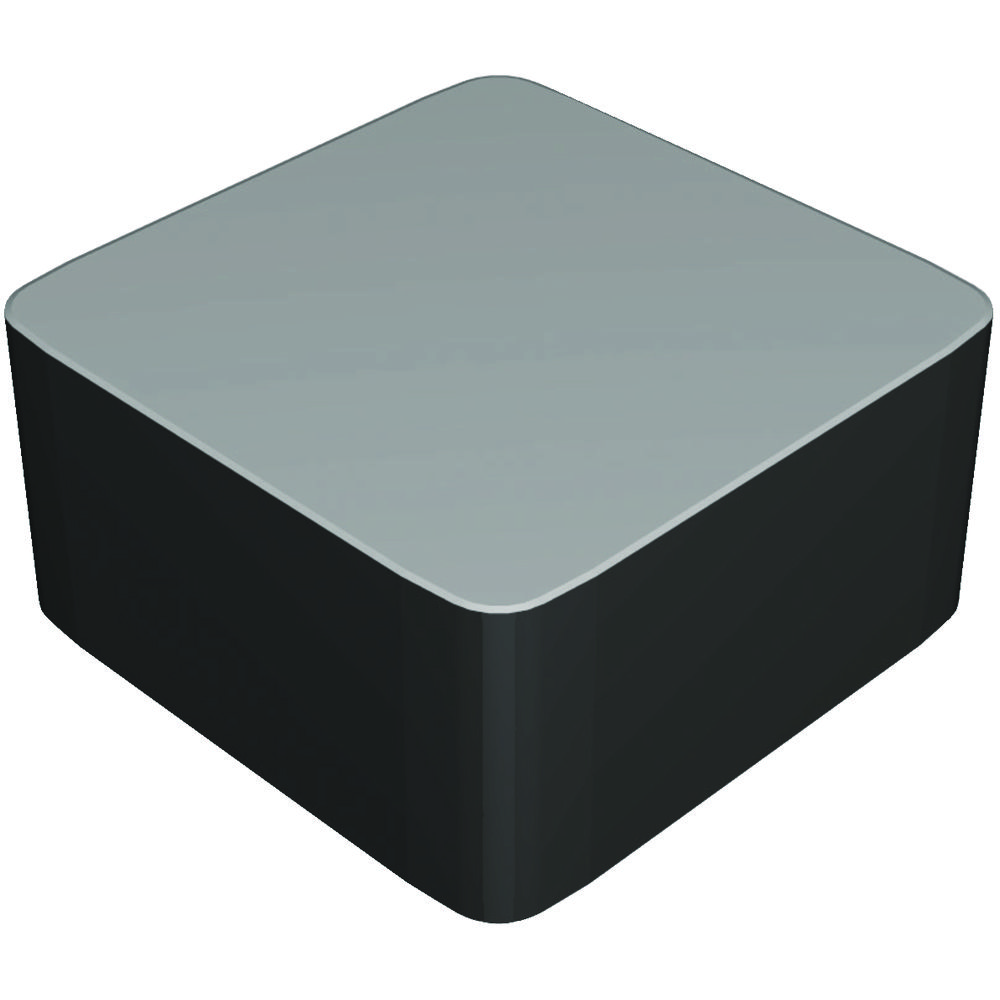

Kennametal • SCGN-WCB • SCGN090408S01015WCB KBK45

Name: Kennametal • SCGN-WCB • SCGN090408S01015WCB KBK45
SKU: KEN6082241
Availability: InStock

SKU: KEN6082241S/C: 6082241Barcode: 4056544353122

Usually ships in 5 days

$250.47inc
GST

Kendex™ Negative Wiper Inserts

This product doesn't have any features.

Technical Details
B Gamma Inch [BGAMMA]	0.0040
B Gamma Metric [BGAMMA]	0.1000
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	CB
Clearance Angle Major [ALPHAN]	7.000
Clearance Angle Minor [ALPHANM]	7.000
Coating	TiN
Corner Facet Length Inch [BS]	0.0220
Corner Facet Length Metric [BS]	0.5700
Corner Radius Frac [REPSILON]	1/32
Corner Radius Inch [REPSILON]	0.031200
Corner Radius Metric [REPSILON]	0.7940
Cutting Tool Material	Carbide
Engineering Insert Geometry	SCGN_WCB

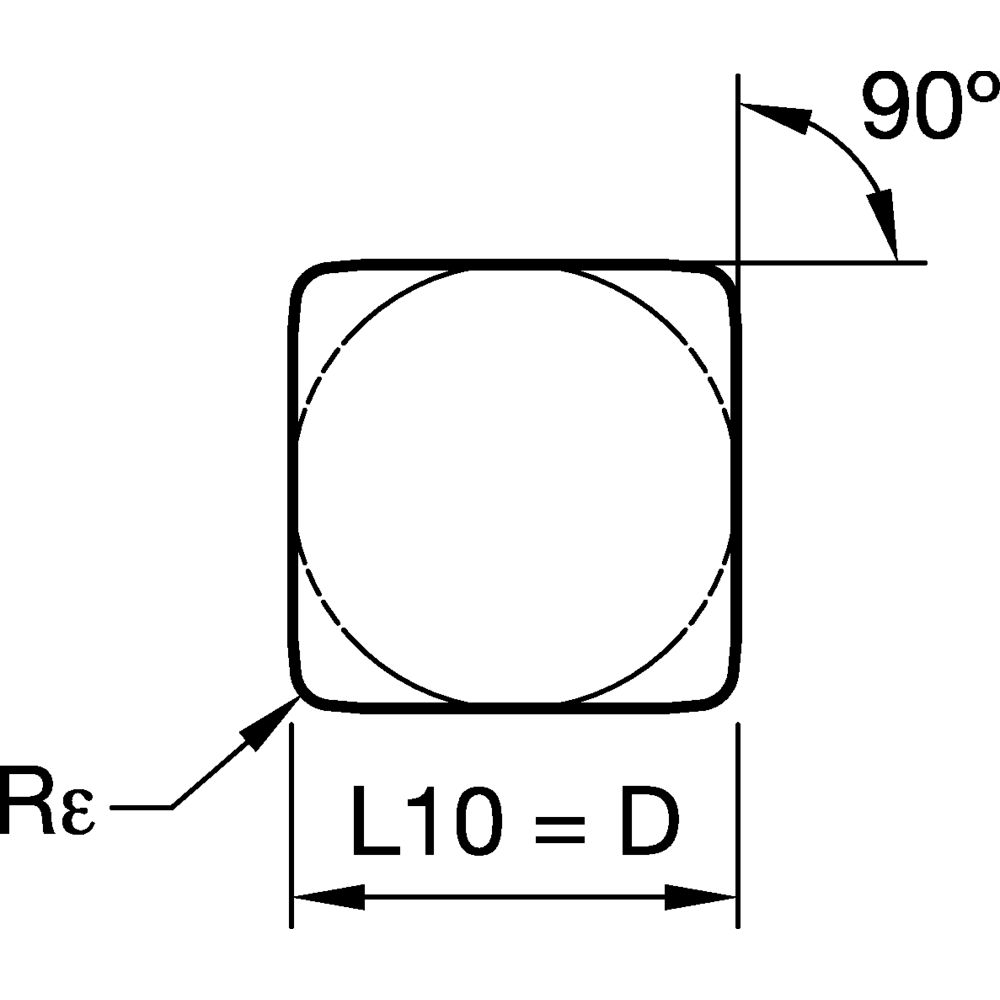

Ins Cut Edge Length Inch [L10]	0.3750
Ins Cut Edge Length Metric [L10]	9.5250
Insert Gage Dimension Inch [M]	0.0625
Insert Gage Dimension Metric [M]	1.5880
Insert Hand	N - Neutral
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	1-Without Fixing Hole
Insert Num of Cutting Edges	8
Insert Shape	S-Square 90
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7620
Lead Angle ANSI [KRA]	5.000
Lead Angle ISO [KRI]	85.000
Wiper Radius Inch [RW]	0.157000
Wiper Radius Metric [RW]	4.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
