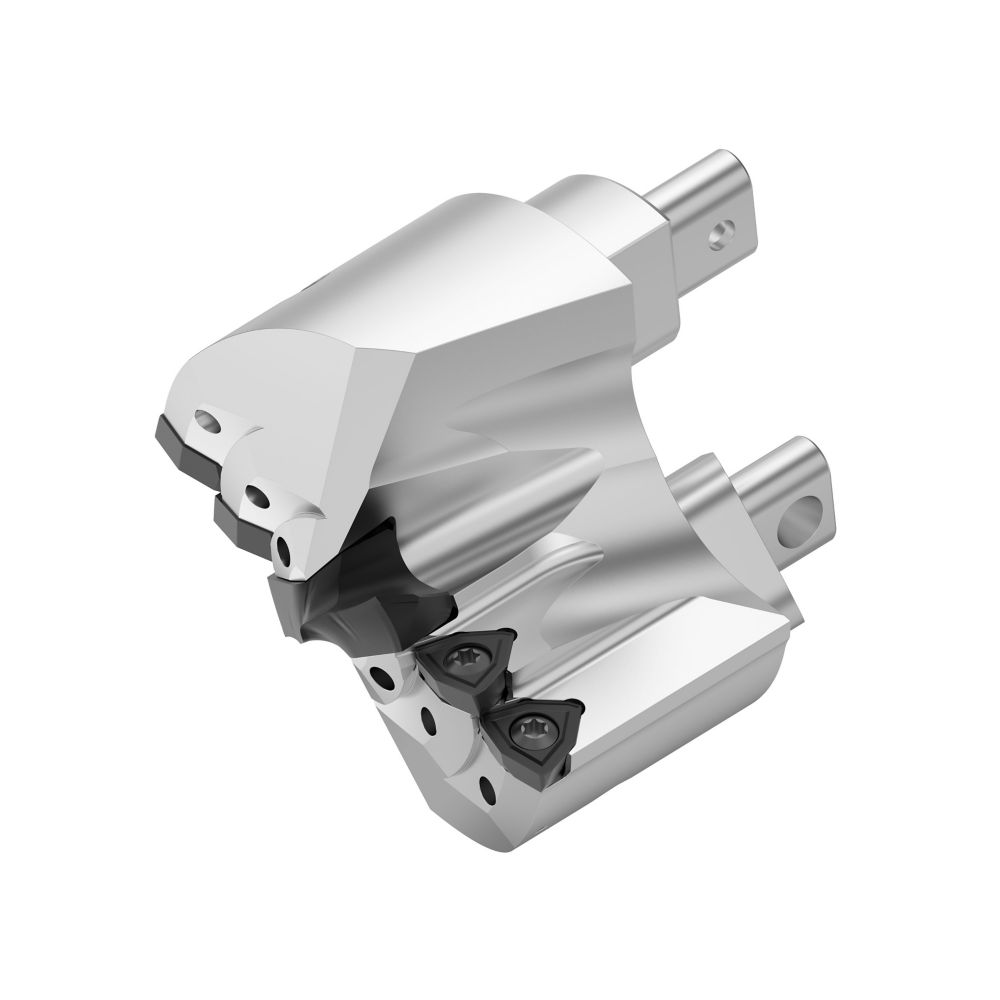

Kennametal • KSEM PLUS™ • A1 Head • Diameter 71.00 - 93.34mm / 2.795 - 3.674" • KSEMP7500FDS71A1M
Kennametal • KSEM PLUS™ • A1 Head • Diameter 71.00 - 93.34mm / 2.795 - 3.674" • KSEMP7500FDS71A1M - Image 2

Kennametal • KSEM PLUS™ • A1 Head • Diameter 71.00 – 93.34mm / 2.795 – 3.674″ • KSEMP7500FDS71A1M

SKU: KEN6041907S/C: 6041907Barcode: 4056544213389
Usually ships in 5 daysExcluding weekends / Subject to availability

$1,421.75inc
GST

Price Match

Modular Drilling • Drill Head with DFT inserts

  • KSEM PLUS™ A1 modular drill head for lowest cost per hole.
  • Insert screws and wrenches are included.
  • Use four DFT style inserts for this drill head.
  • Inserts to be ordered separately.
More Info
View all:

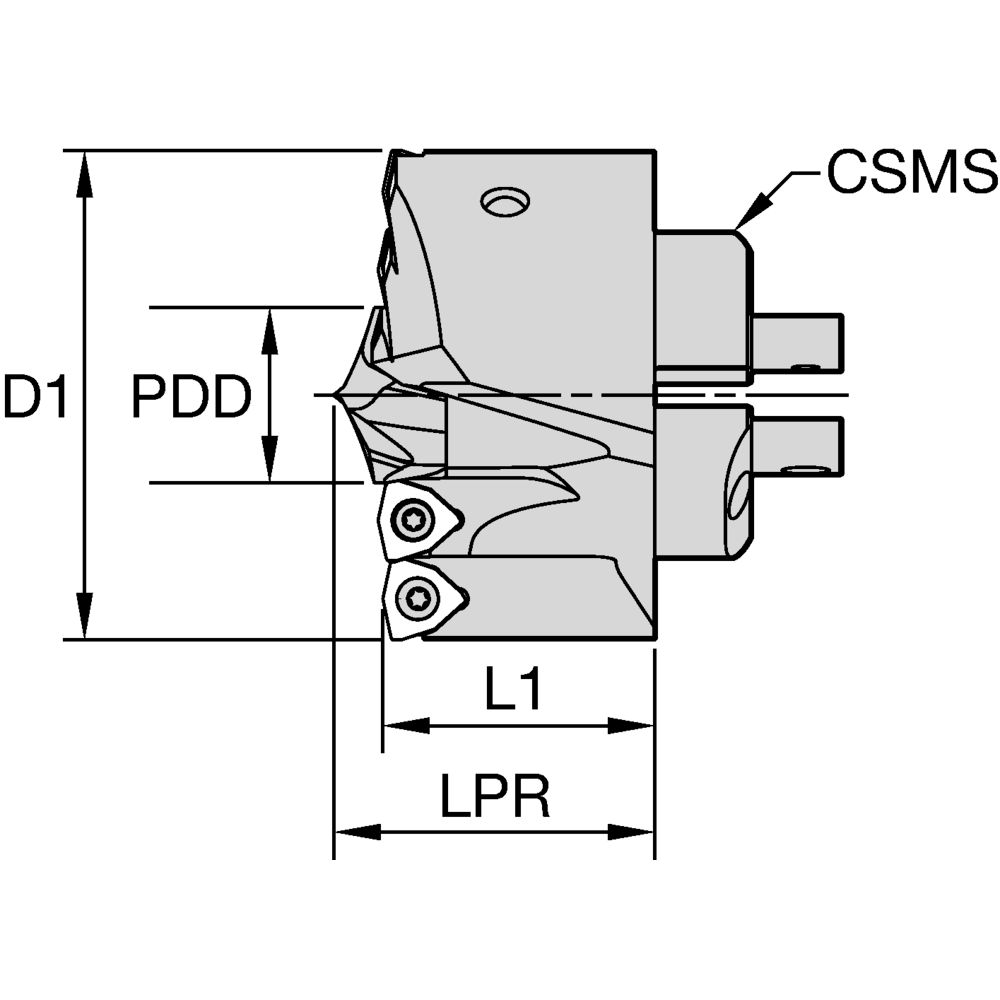

Technical Details
Adapter Style Machine SideFDS Connection
Adapter Type Machine SideFlexable Drill System
Body Dia Workpiece Side Inch [D2]2.9330
Body Dia Workpiece Side Metric [D2]74.5000
Body Material GroupSteel
Clamping TypeS - Screw Clamping
Coolant Hole Dia Exit Inch [A1]0.1380
Coolant Hole Dia Exit Metric [A1]3.5000
Coolant SupplyYes
Drill Diameter Min Inch [D1]2.9530
Drill Diameter Min Metric [D1]75.0000
Drill Flute DesignHelical Flute
Drill Tol Range Calc (inch)-0.004000 to 0.004000
Drill Tol Range Calc (mm)-0.100000 to 0.100000
Drill Tool StyleIndexable Drill
FamilyKSEM PLUS
Flute Length Inch [L3]1.5170
Flute Length Metric [L3]38.5300
Functional Length Inch [LF]1.5170
Functional Length Metric [LF]38.5300
Gage Ins 1 First Dia OutsideDFT06T308D44
Gage Ins 2 First Dia InsideDFT06T308D44
Gage Length Inch [L1]1.5170
Gage Length Metric [L1]38.5300
Hand of ToolR - Right
Helix HandR - Right Hand Helix/Flute
Insert/Blade Seat Size [SSC]7
Num of Insert Cutting Dia 15
Number of Flutes2
Pilot Drill Cut Dia Inch [PDD]1.1810
Pilot Drill Cut Dia Metric [PDD]30.0000
Protruding Length Inch [LPR]1.8690
Protruding Length Metric [LPR]47.4800
System Size Machine Side [CSMS]FDS71
Tool Assembly Length Inch [LTA]1.5170
Tool Assembly Length Metric [LTA]38.5300

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
