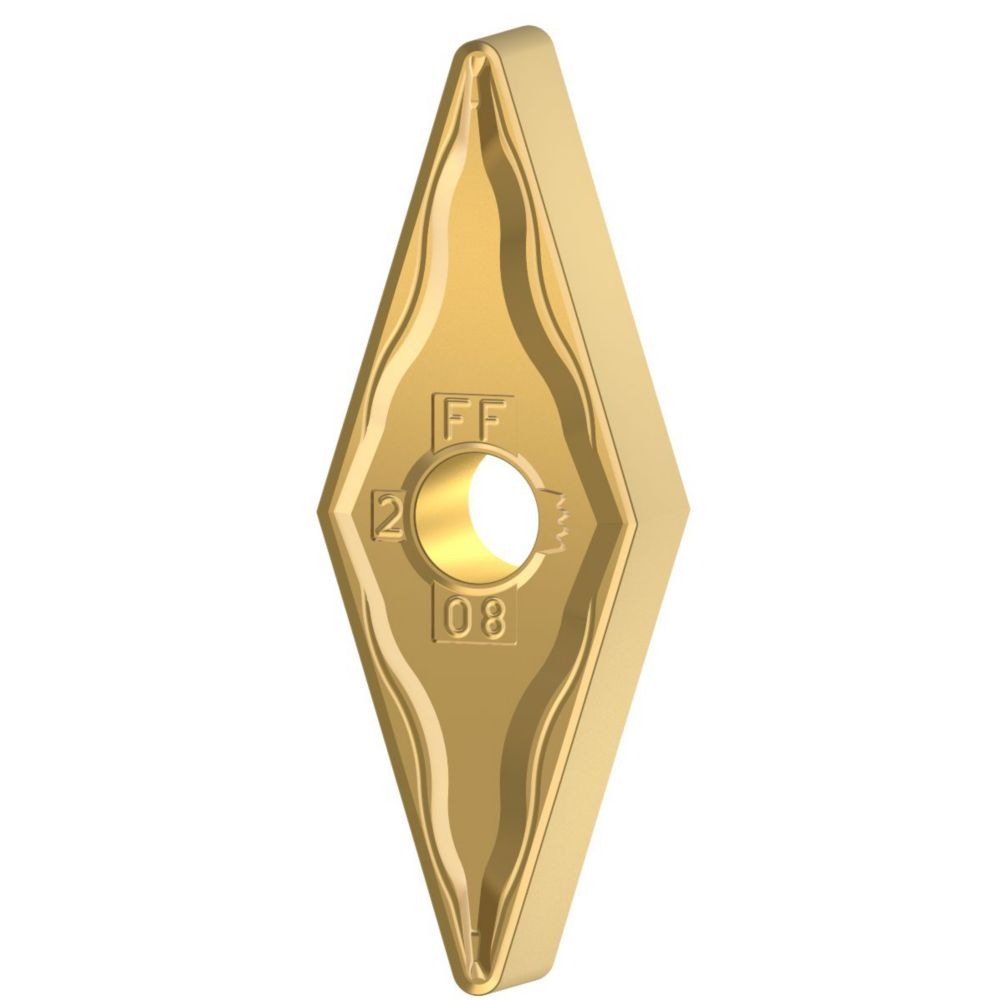

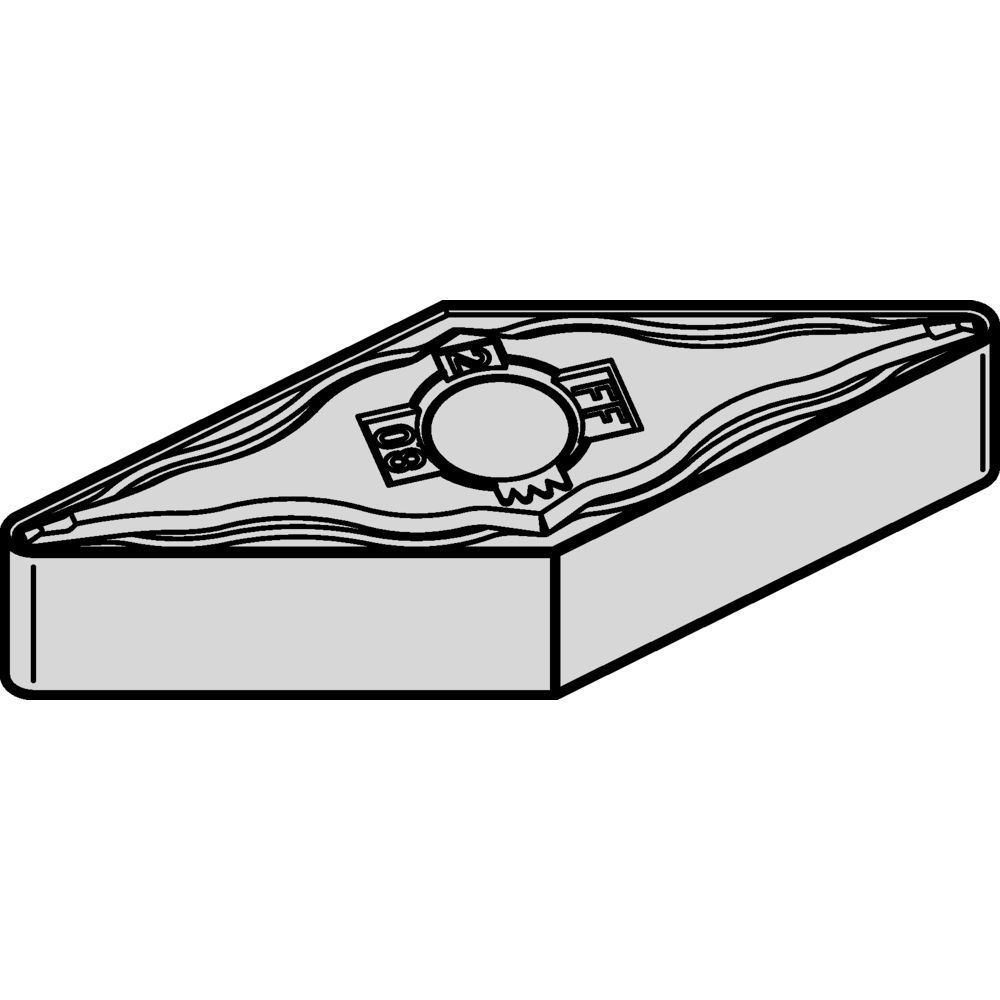

Kennametal • VNMG-FF • VNMG160404FF KCP10B
Kennametal • VNMG-FF • VNMG160404FF KCP10B - Image 2
Kennametal • VNMG-FF • VNMG160404FF KCP10B - Image 3

Kennametal • VNMG-FF • VNMG160404FF KCP10B

SKU: KEN5697185S/C: 5697185Barcode: 5697185
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$22.55inc
GSTEACH

Price Match

Kenloc™ Inserts

  • Finishing geometry for high-surface finish demands.
  • Beyond™ Drive™ grades included.
More Info
View all:

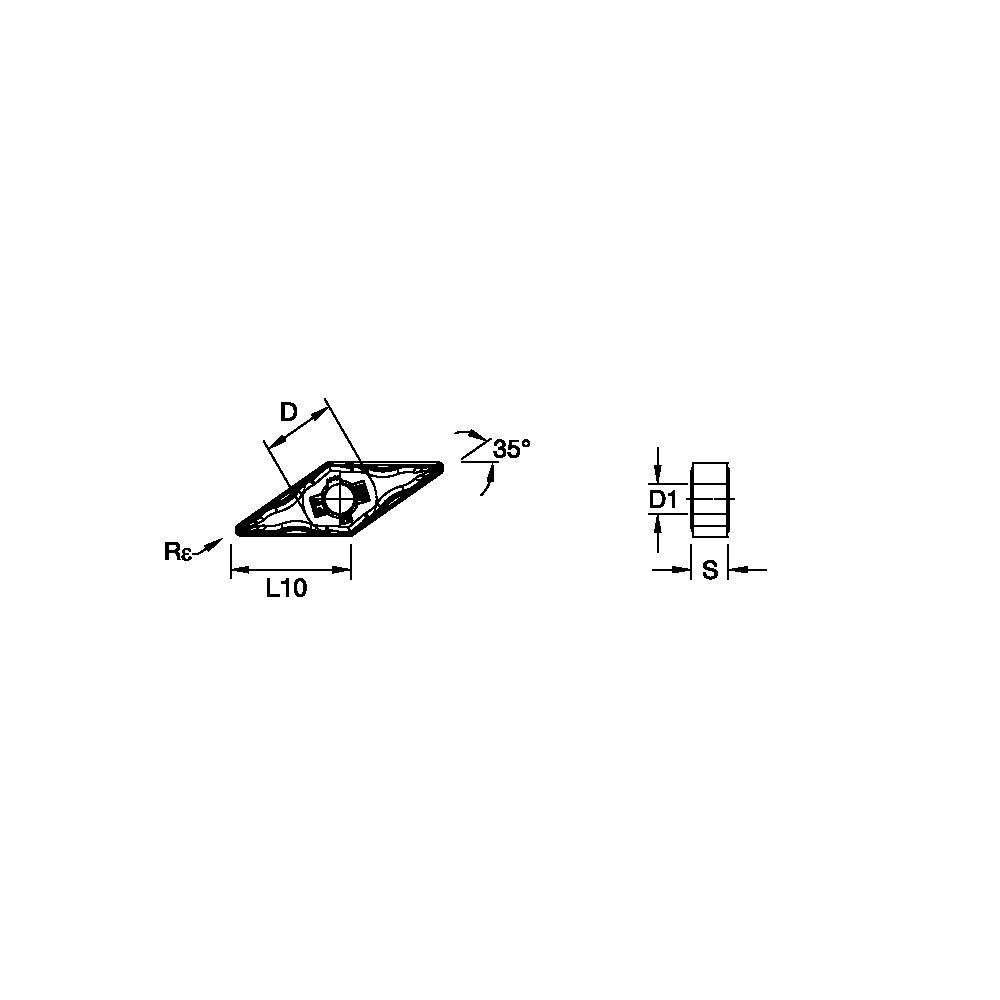

Technical Details
Chipbreaker2-Chipbreaker On Two Sides
Chipbreaker Mfgr DesignationFF
Clearance Angle Major [ALPHAN]0.000
CoatingTiOCN
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015625
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialCarbide
Engineering Insert GeometryMG_FF
Ins Cut Edge Length Inch [L10]0.6538
Ins Cut Edge Length Metric [L10]16.6060
Insert Gage Dimension Inch [M]0.3997
Insert Gage Dimension Metric [M]10.1520
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1500
Insert Hole Size Metric [D1]3.8100
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting2-Cylindrical Fixing Hole
Insert Num of Cutting Edges4
Insert Rake Angle [GAMMA]25.0000
Insert ShapeV-Diamond/Rhombic 35
Insert Thickness Fraction [S]3/16
Insert Thickness Inch [S]0.1875
Insert Thickness Metric [S]4.7630

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
