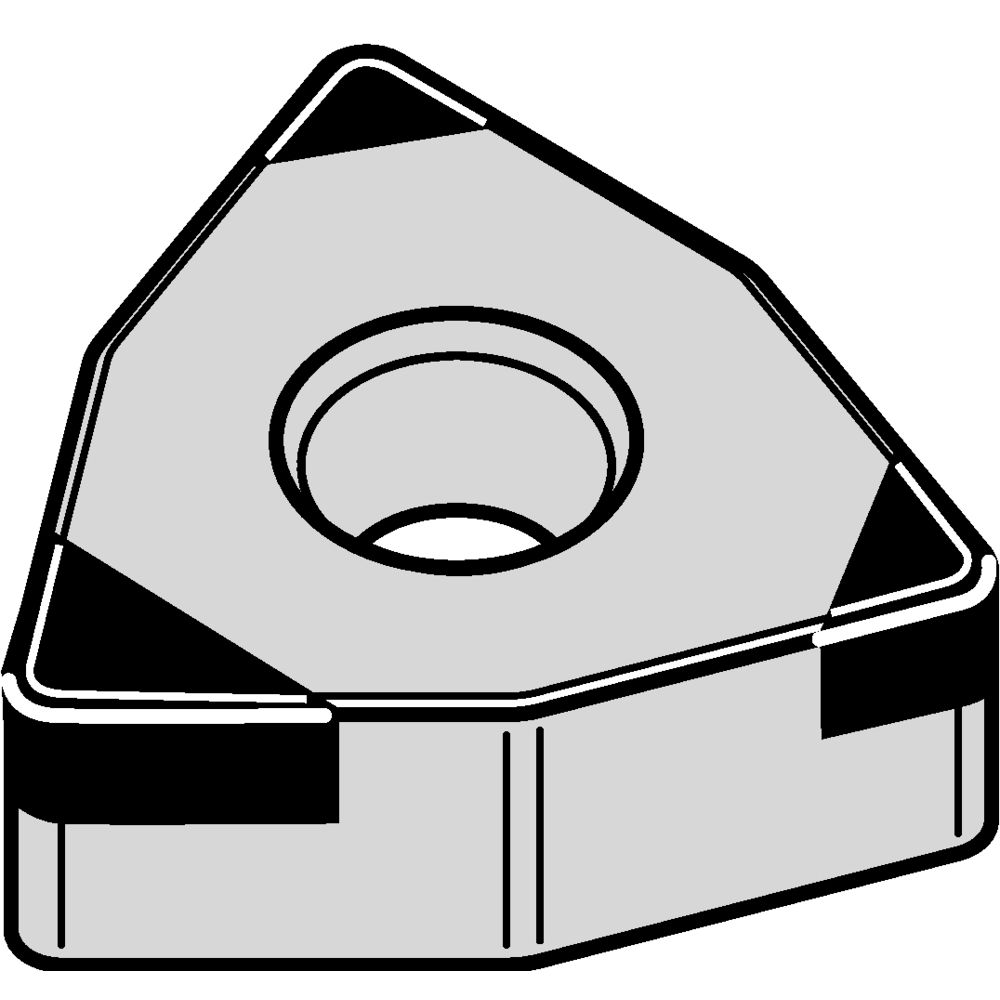

Kennametal • WNGA-FW/MW MT • Light Machining • WNGA080408S01015FWHBMT KBH20

Name: Kennametal • WNGA-FW/MW MT • Light Machining • WNGA080408S01015FWHBMT KBH20
SKU: KEN5640997
Availability: InStock

SKU: KEN5640997S/C: 5640997

Usually ships in 5 days

$283.14inc
GST

Kenloc™ Inserts

This product doesn't have any features.

Technical Details
B Gamma Inch [BGAMMA]	0.0040
B Gamma Metric [BGAMMA]	0.1000
Chipbreaker	0-No Chipbreaker
Clearance Angle Major [ALPHAN]	0.000
Coating	AlTiN
Corner Facet Length Inch [BS]	0.0260
Corner Facet Length Metric [BS]	0.6600

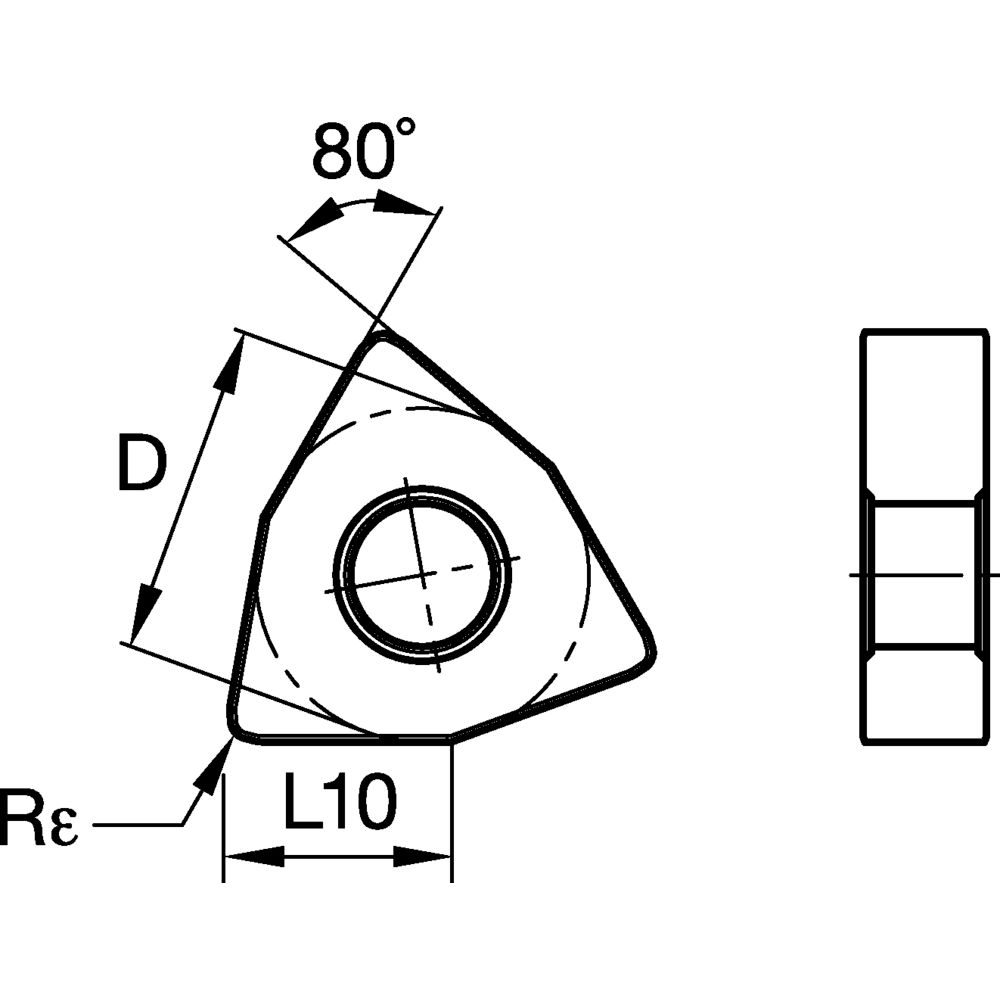

Corner Radius Frac [REPSILON]	1/32
Corner Radius Inch [REPSILON]	0.031200
Corner Radius Metric [REPSILON]	0.7940
Cutting Tool Material	BN-High CBN
Engineering Insert Geometry	NGA_S01015_FW_MT
Ins Cut Edge Length Inch [L10]	0.3420
Ins Cut Edge Length Metric [L10]	8.6870
Ins Effect Cut Length Inch [Leff]	0.1240
Ins Effect Cut Length Metric [Leff]	3.1600
Insert Gage Dimension Inch [M]	0.1188
Insert Gage Dimension Metric [M]	3.0180
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.2030
Insert Hole Size Metric [D1]	5.1600
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	3
Insert Shape	W-Trigon 80
Insert Thickness Fraction [S]	.1883
Insert Thickness Inch [S]	0.1883
Insert Thickness Metric [S]	4.7820
Lead Angle ANSI [KRA]	5.000
Lead Angle ISO [KRI]	75.000
Wiper Radius Inch [RW]	0.150000
Wiper Radius Metric [RW]	3.8100

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
