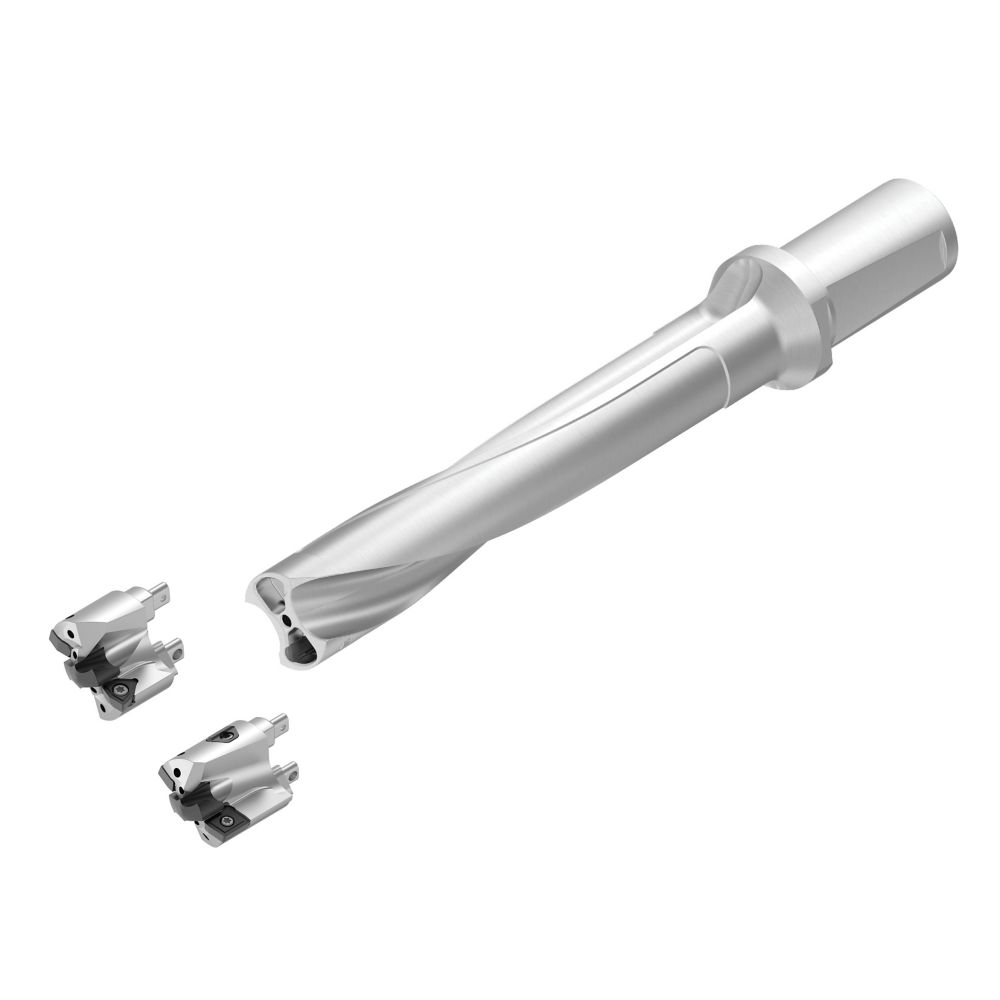

Kennametal • KSEM PLUS™ • Drill Body • 5xD • WD Shank • Metric • WD50FDS71452M

Name: Kennametal • KSEM PLUS™ • Drill Body • 5xD • WD Shank • Metric • WD50FDS71452M
SKU: KEN5397943
Availability: InStock

SKU: KEN5397943S/C: 5397943Barcode: 4050839591770

Usually ships in 5 days

$2,401.85inc
GST

Modular Drilling • Whistle Notch™ Shank (WD)

Use KSEM PLUS™ A1 head for lowest cost per hole
Use KSEM PLUS™ B1 head for challenging conditions like stacked plates, cross holes and inclined exits

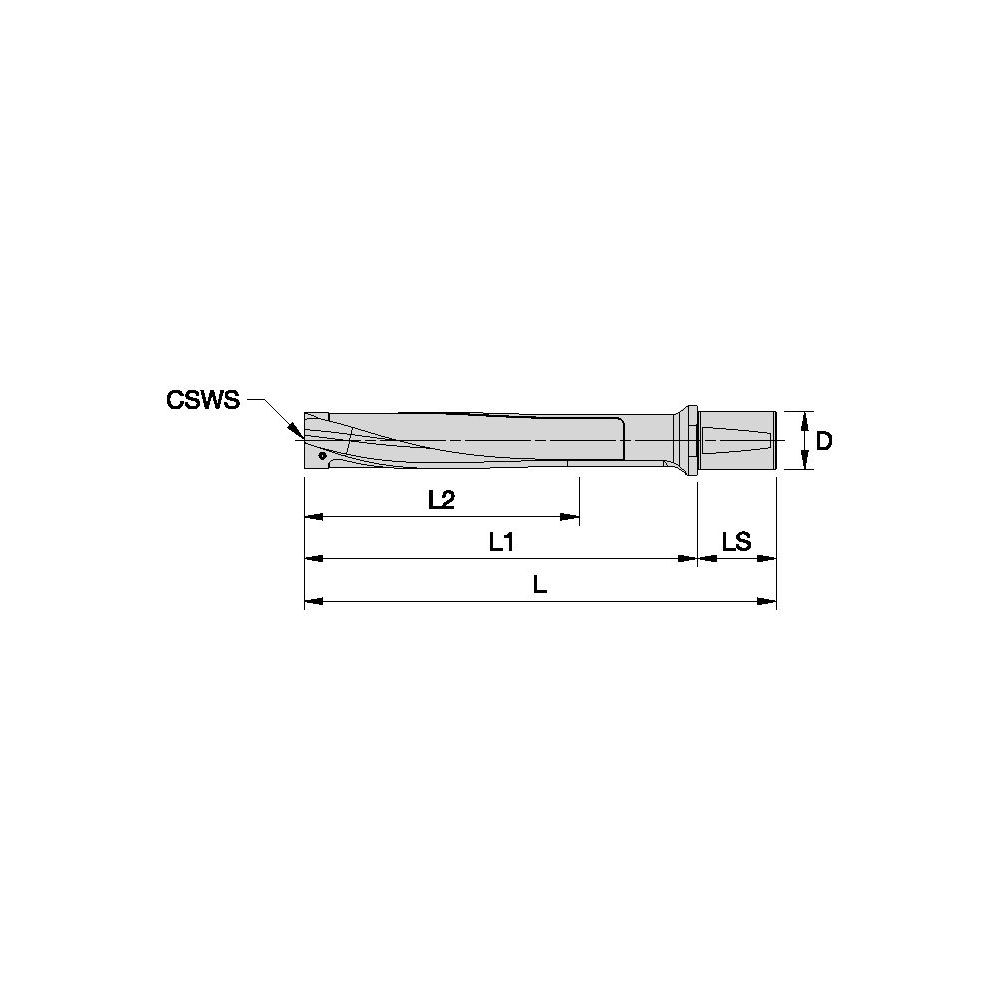

Technical Details
Adapter Style Machine Side	Whistle Drive 2
Adapter Type Machine Side	Cylindrical
Adapter Type Workpiece Side	FDS - Flexible Drill System
Adapter/Shank/Bore Dia Inch [D]	1.9680
Adapter/Shank/Bore Dia Metric [D]	50.0000
Body Dia 1 Workpiece Side Inch [D2]	2.7170
Body Dia 1 Workpiece Side Metric [D2]	69.0000
Centreline Height Inch [H1]	0.0000
Centreline Height Metric [H1]	0.0000
Clamping LG Mach Side Inch [L9MS]	2.6770
Clamping LG Mach Side Metric [L9MS]	68.0000
Coolant Hole Dia Exit Inch [A1]	0.2440
Coolant Hole Dia Exit Metric [A1]	6.2000
Coolant Hole Dia Inch [A]	0.4720
Coolant Hole Dia Metric [A]	12.0000
Coolant Supply	Yes
Front End Tool Type	Modular Adapter
Functional Length Inch [LF]	17.7950
Functional Length Metric [LF]	452.0000
Gage Length 1 Inch [L1]	17.7950
Gage Length 1 Metric [L1]	452.0000
Hand of Tool	N - Neutral
Overall Length Inch [L]	20.4720
Overall Length Metric [L]	520.0000
Protruding Length Inch [LPR]	17.7950
Protruding Length Metric [LPR]	452.0000
Shank Length Inch [LS]	2.6770
Shank Length Metric [LS]	68.0000
System Size Workpiece Side [CSWS]	FDS71
Tool Assembly Length Inch [LTA]	17.7950
Tool Assembly Length Metric [LTA]	452.0000
Usable Length Inch [L2]	14.1730
Usable Length Metric [L2]	360.0000
