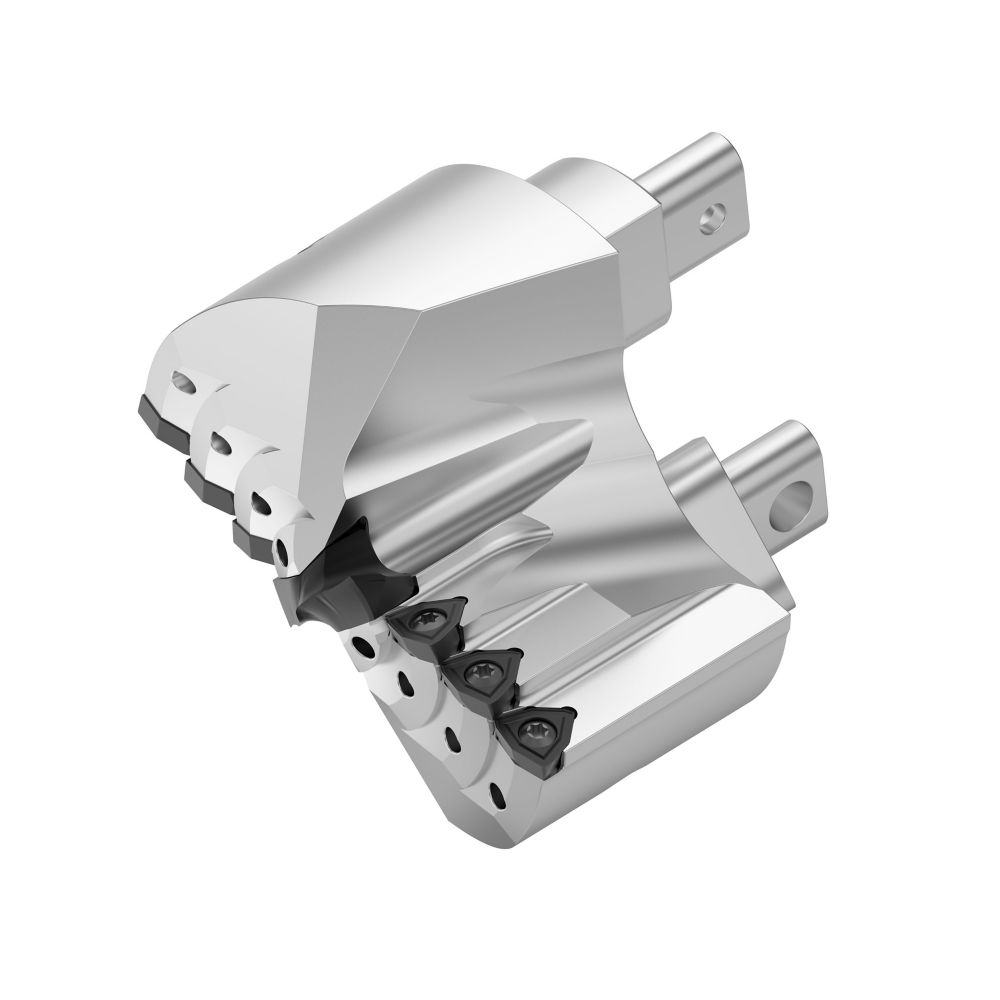

Kennametal • KSEM PLUS™ • A1 Head • Diameter 93.35 - 101.60mm / 3.675 - 4.000" • KSEMP9525FDS90A1M
Kennametal • KSEM PLUS™ • A1 Head • Diameter 93.35 - 101.60mm / 3.675 - 4.000" • KSEMP9525FDS90A1M - Image 2

Kennametal • KSEM PLUS™ • A1 Head • Diameter 93.35 – 101.60mm / 3.675 – 4.000″ • KSEMP9525FDS90A1M

SKU: KEN5397558S/C: 5397558Barcode: 4050839590780
Usually ships in 5 daysExcluding weekends / Subject to availability

$1,700.05inc
GST

Price Match

Modular Drilling • Drill Head with DFT inserts

  • KSEM PLUS™ A1 modular drill head for lowest cost per hole.
  • Insert screws and wrenches are included.
  • Use six DFT style inserts for this drill head.
  • Inserts to be ordered separately.
More Info
View all:

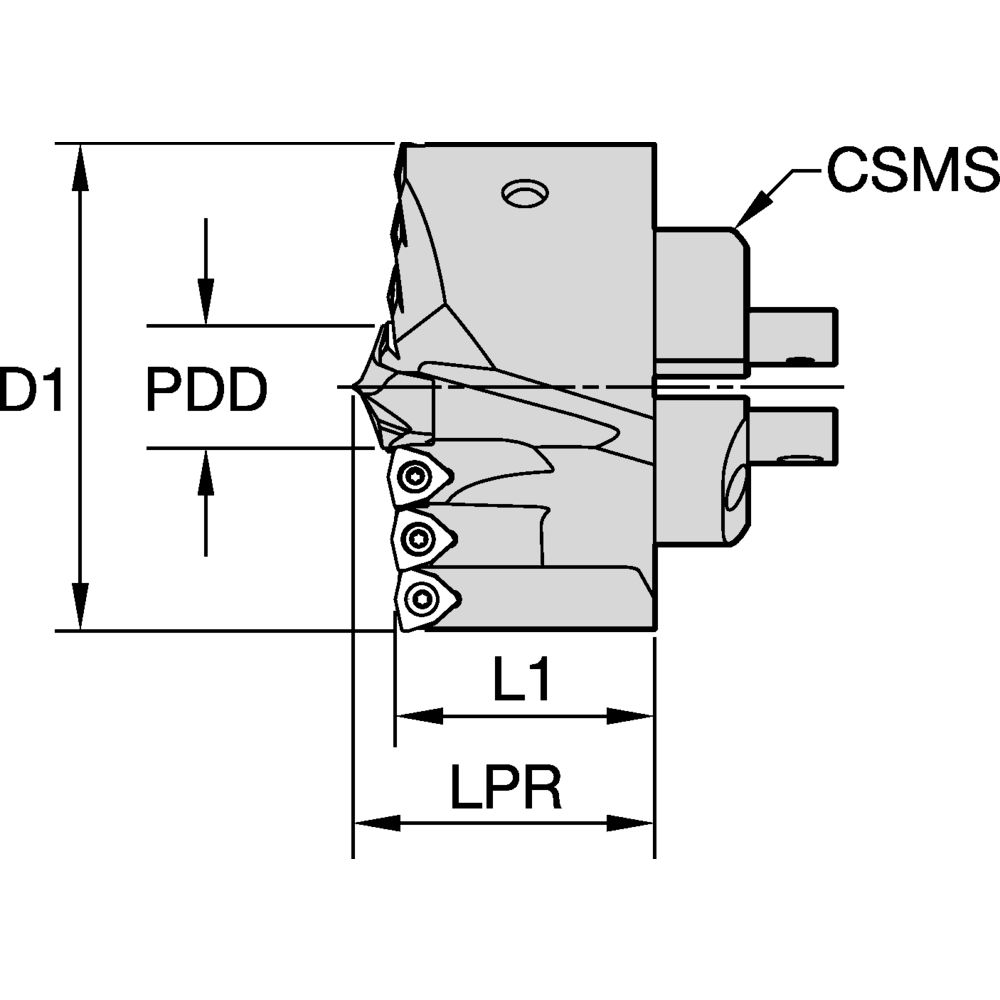

Technical Details
Adapter Style Machine SideFDS Connection
Adapter Type Machine SideFlexable Drill System
Body Dia Workpiece Side Inch [D2]3.7300
Body Dia Workpiece Side Metric [D2]94.7500
Body Material GroupSteel
Clamping TypeS - Screw Clamping
Coolant SupplyYes
Drill Diameter Min Frac [D1]3 3/4
Drill Diameter Min Inch [D1]3.7500
Drill Diameter Min Metric [D1]95.2500
Drill Flute DesignHelical Flute
Drill Tol Range Calc (inch)-0.004000 to 0.004000
Drill Tol Range Calc (mm)-0.100000 to 0.100000
Drill Tool StyleIndexable Drill
FamilyKSEM PLUS
Flute Length Inch [L3]1.9110
Flute Length Metric [L3]48.5300
Functional Length Inch [LF]1.9110
Functional Length Metric [LF]48.5300
Gage Ins 1 First Dia OutsideDFT06T308D44
Gage Ins 2 First Dia InsideDFT06T308D44
Gage Length Inch [L1]1.9110
Gage Length Metric [L1]48.5300
Hand of ToolR - Right
Helix HandR - Right Hand Helix/Flute
Insert/Blade Seat Size [SSC]6
Num of Insert Cutting Dia 17
Number of Flutes2
Pilot Drill Cut Dia Inch [PDD]1.0630
Pilot Drill Cut Dia Metric [PDD]27.0000
Protruding Length Inch [LPR]2.2890
Protruding Length Metric [LPR]58.1500
System Size Machine Side [CSMS]FDS90
Tool Assembly Length Inch [LTA]1.9110
Tool Assembly Length Metric [LTA]48.5300
