Kennametal • SNGA-MT • SNGA120412S01225MT KBH20
Kennametal • SNGA-MT • SNGA120412S01225MT KBH20 - Image 2

Kennametal • SNGA-MT • SNGA120412S01225MT KBH20

SKU: KEN5330857S/C: 5330857Barcode: 4050839366897
Usually ships in 5 daysExcluding weekends / Subject to availability

$375.10inc
GST

Price Match

Kenloc™ Inserts

  • Medium geometry utilized in high-temp and stainless applications.
More Info
View all:

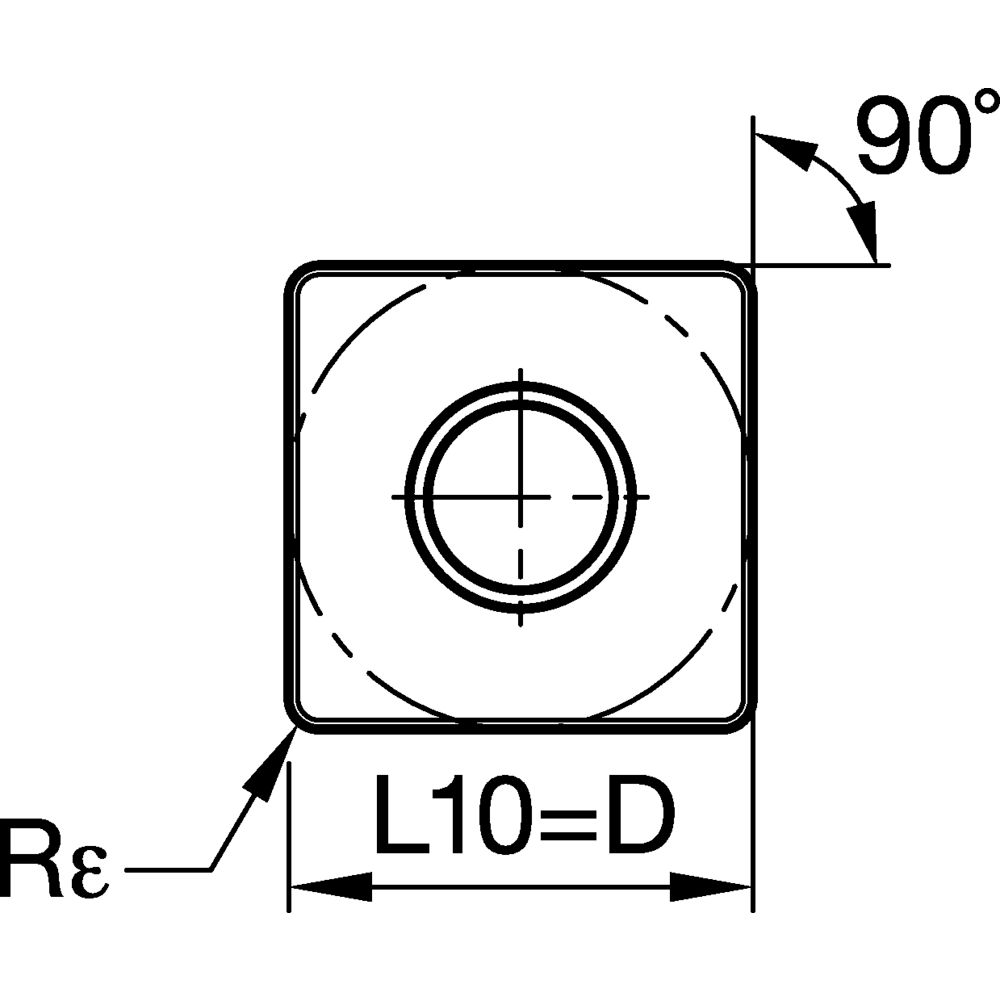

Technical Details
B Gamma Inch [BGAMMA]0.0050
B Gamma Metric [BGAMMA]0.1300
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
CoatingAlTiN
Corner Radius Frac [REPSILON]3/64
Corner Radius Inch [REPSILON]0.046900
Corner Radius Metric [REPSILON]1.1910
Cutting Tool MaterialBN-Low CBN
Engineering Insert GeometryNGA_S01225_MT
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.5000
Ins Cut Edge Length Metric [L10]12.7000
Ins Effect Cut Length Inch [Leff]0.1180
Ins Effect Cut Length Metric [Leff]3.0000
Insert Gage Dimension Inch [M]0.0841
Insert Gage Dimension Metric [M]2.1370
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.2030
Insert Hole Size Metric [D1]5.1600
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Length Inch [LI]0.5000
Insert Length Metric [LI]12.7000
Insert Mounting2-Cylindrical Fixing Hole
Insert Num of Cutting Edges4
Insert ShapeS-Square 90
Insert Thickness Inch [S]0.1883
Insert Thickness Metric [S]4.7820

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
