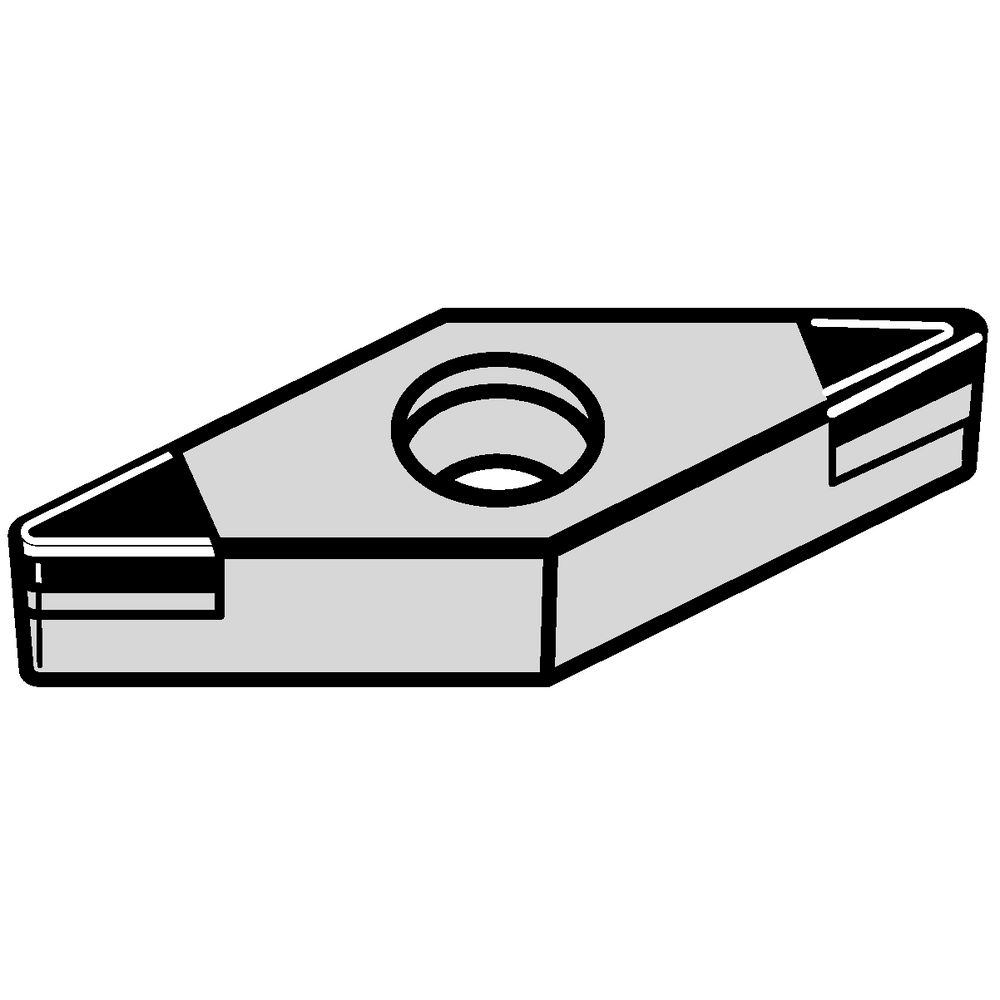

Kennametal • VBGW-MT • VBGW110308S01225MT KBH20
Kennametal • VBGW-MT • VBGW110308S01225MT KBH20 - Image 2

Kennametal • VBGW-MT • VBGW110308S01225MT KBH20

SKU: KEN5330166S/C: 5330166Barcode: 4050839363629
Usually ships in 5 daysExcluding weekends / Subject to availability

$255.31inc
GST

Price Match

Screw-On Inserts

  • Medium geometry utilized in high-temp and stainless steel applications
More Info
View all:
Technical Details
B Gamma Inch [BGAMMA]0.0050
B Gamma Metric [BGAMMA]0.1300
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]5.000
Clearance Angle Minor [ALPHANM]5.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031200
Corner Radius Metric [REPSILON]0.7940
Cutting Tool MaterialBN-Low CBN
Engineering Insert GeometryBGW_S01225_MT
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.4360
Ins Cut Edge Length Metric [L10]11.0700
Ins Effect Cut Length Inch [Leff]0.2060
Ins Effect Cut Length Metric [Leff]5.2200
Insert Gage Dimension Inch [M]0.2180
Insert Gage Dimension Metric [M]5.5380
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1100
Insert Hole Size Metric [D1]2.8000
Insert IC Size Fraction [D]1/4
Insert IC Size Inch [D]0.2500
Insert IC Size Metric [D]6.3500
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert ShapeV-Diamond/Rhombic 35
Insert Thickness Fraction [S].126
Insert Thickness Inch [S]0.1260
Insert Thickness Metric [S]3.2000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
