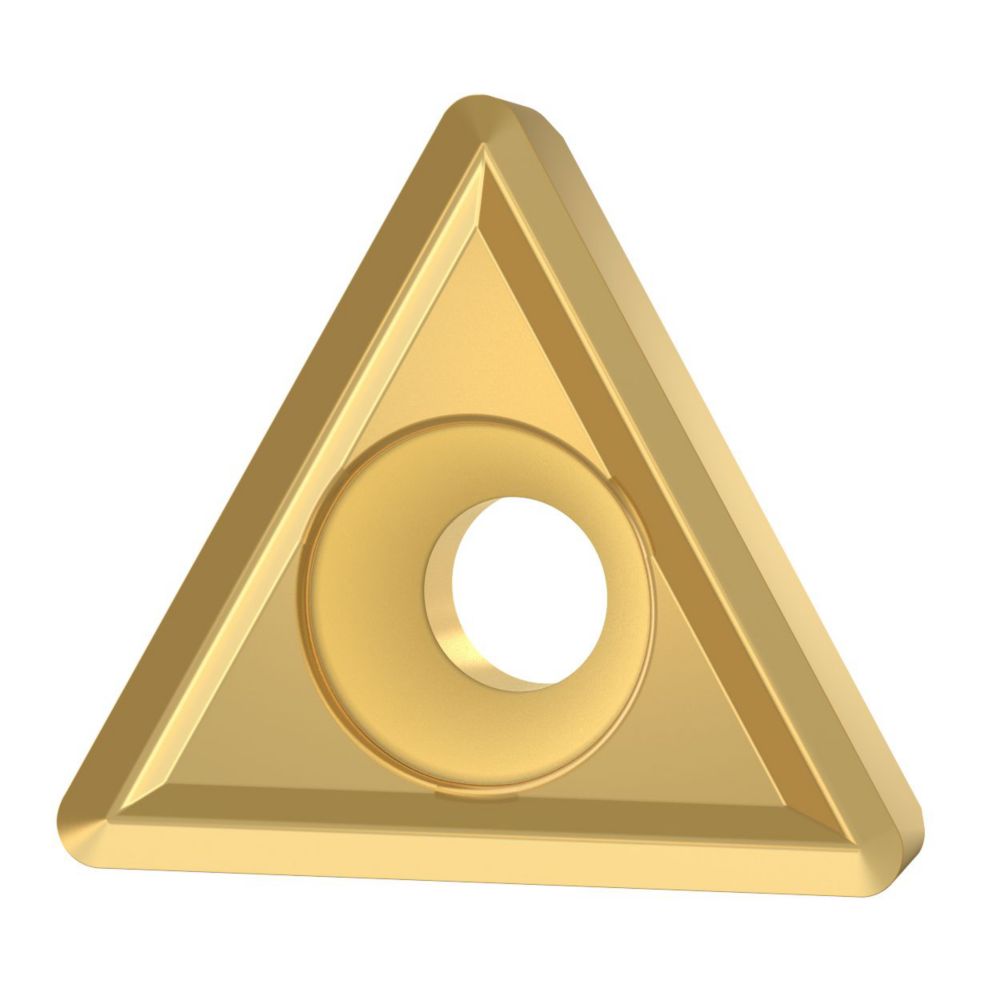

Kennametal • TPHH160304LF KCU10

Name: Kennametal • TPHH160304LF KCU10
SKU: KEN4053344
Availability: InStock

SKU: KEN4053344S/C: 4053344

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$22.79inc
GSTEACH

Screw-On Inserts

This product doesn't have any features.

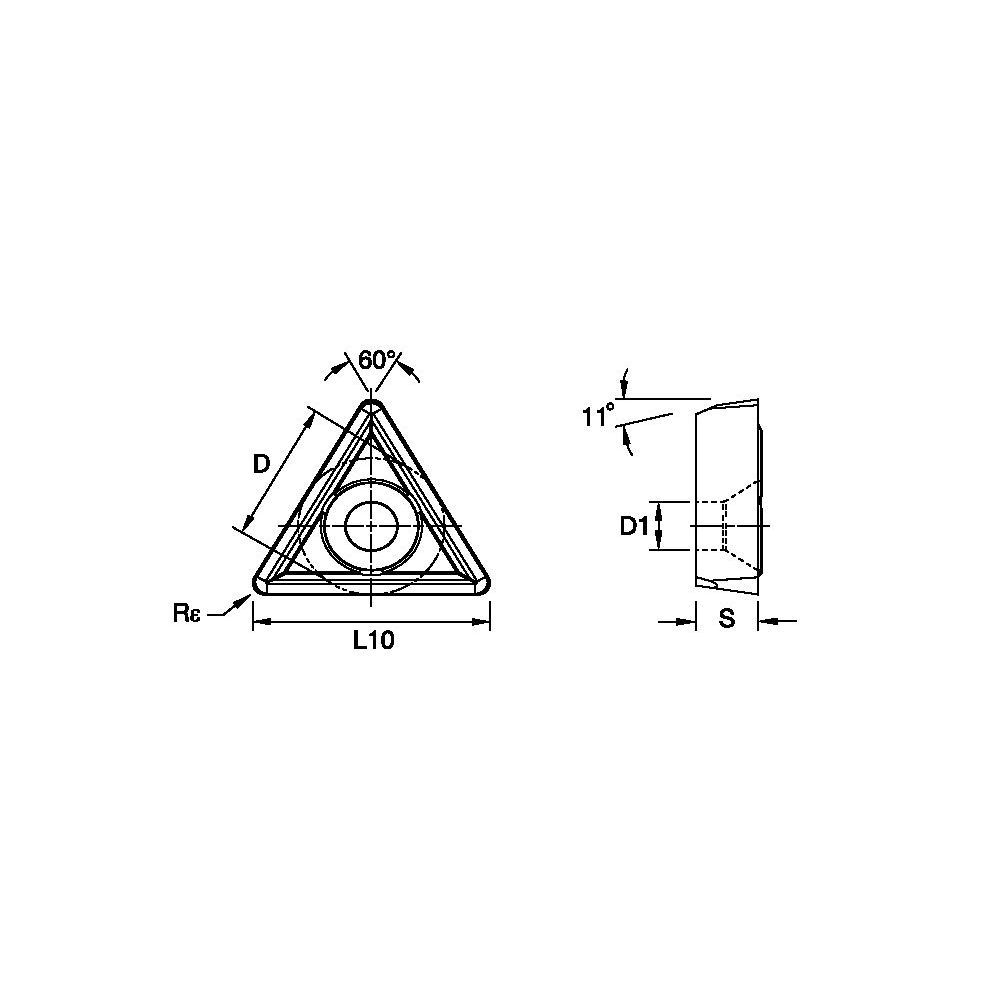

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	LF
Clearance Angle Major [ALPHAN]	11.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	1/64
Corner Radius Inch [REPSILON]	0.015600
Corner Radius Metric [REPSILON]	0.3970
Cutting Tool Material	Carbide
Engineering Insert Geometry	GH
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.6500
Ins Cut Edge Length Metric [L10]	16.5000
Insert Gage Dimension Inch [M]	0.5469
Insert Gage Dimension Metric [M]	13.8910
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1310
Insert Hole Size Metric [D1]	3.3300
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	4-Part Cycl w/70-90 TaperScrew
Insert Num of Cutting Edges	3
Insert Rake Angle [GAMMA]	14.250
Insert Shape	T-Triangle 60
Insert Thickness Fraction [S]	1/8
Insert Thickness Inch [S]	0.1250
Insert Thickness Metric [S]	3.1800

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
