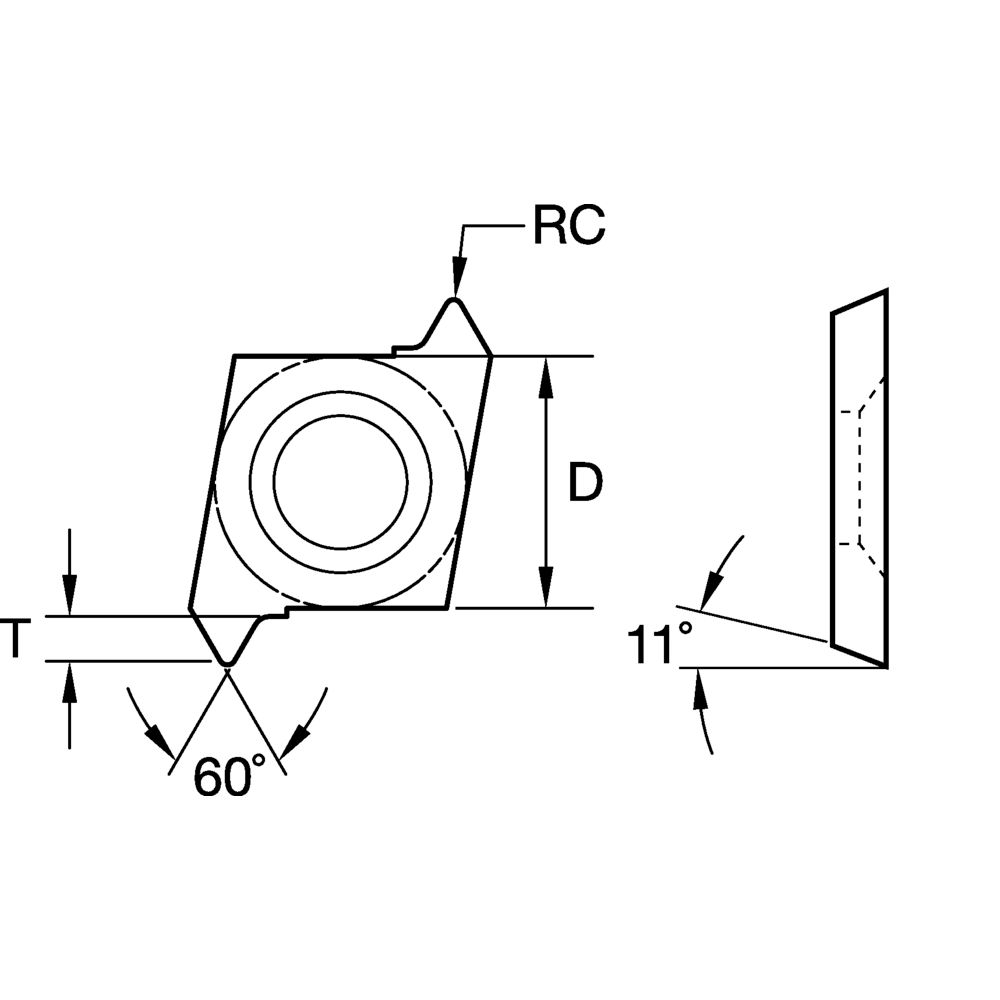

| Technical Details | |
|---|---|
| Clearance Ang Main Cut Edge [CM] | 11.000 |
| Coating | TiAlN |
| Corner Radius Centre Inch [RC] | 0.0050 |
| Corner Radius Centre Metric [RC] | 0.1270 |
| Cutting Depth Inch [T] | 0.0650 |
| Cutting Depth Metric [T] | 1.6510 |
| Cutting Tool Material | Carbide |
| Insert Hand | R - Right |
| Insert Hole Size Inch [D1] | 0.1100 |
| Insert Hole Size Metric [D1] | 2.7940 |
| Insert IC Size Fraction [D] | 1/4 |
| Insert IC Size Inch [D] | 0.2500 |
| Insert IC Size Metric [D] | 6.3500 |
| Insert Mounting | 4-Part Cycl w/70-90 TaperScrew |
| Insert Num of Cutting Edges | 2 |
| Insert Shape | Threading |
| Insert Thickness Inch [S] | 0.0750 |
| Insert Thickness Metric [S] | 1.9050 |
| Profile Style | 08 -Thd Typical |
| Relief Clearance Angle LH [CL] | 7.000 |
| Relief Clearance Angle RH [CR] | 7.000 |
| Style of Thread/V Belt Style | B -Internal & External |
| Thread Pitch Max | 2.5000 |
| Thread Pitch Min | 1.0000 |
| TPI Max | 24.000 |
| TPI Min | 10.000 |

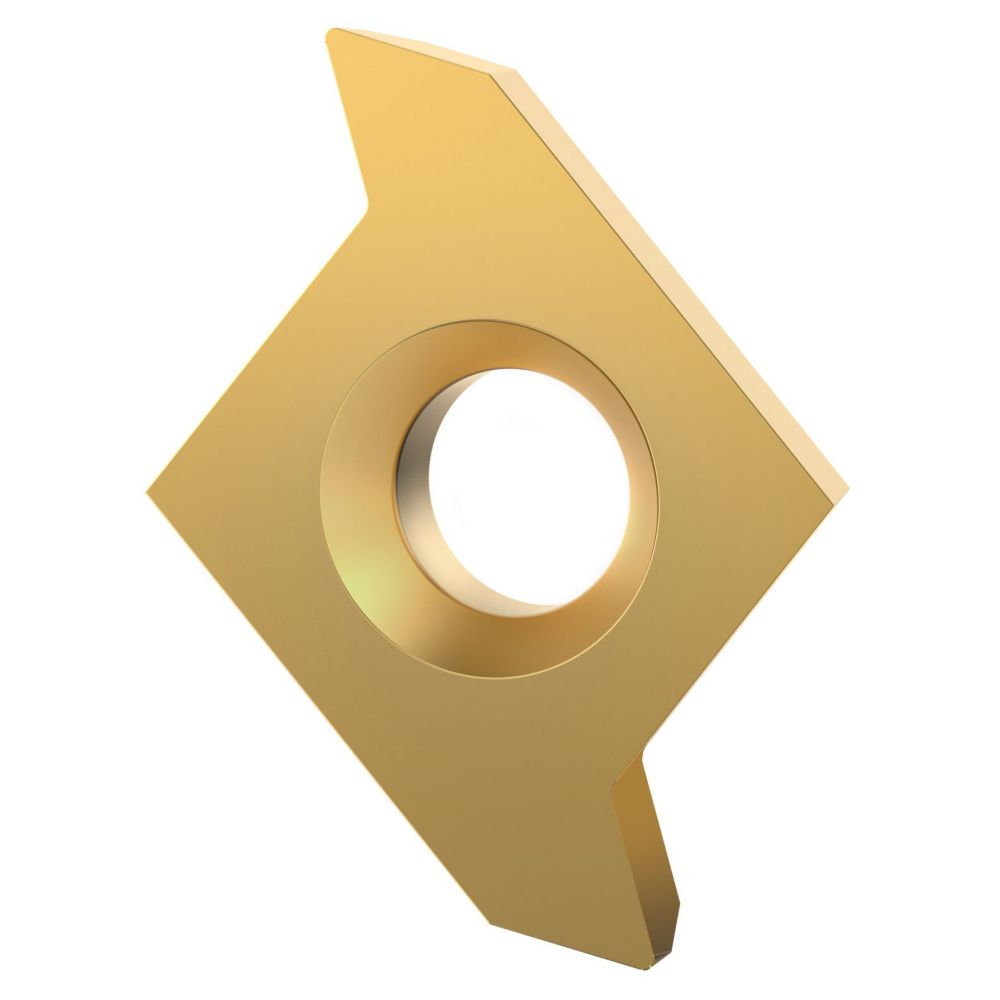

Kennametal • CPT190013R KCU10
$76.96inc
GSTEACH
Screw-On Inserts
This product doesn't have any features.
View all: Threading Inserts
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
