Kennametal • CDT127005R KCU10

Name: Kennametal • CDT127005R KCU10
SKU: KEN4053329
Availability: InStock

SKU: KEN4053329S/C: 4053329

Usually ships in 5 days

Available in packs of 10. Pricing is for individual items in the pack.

$112.29inc
GSTEACH

Screw-On Inserts

This product doesn't have any features.

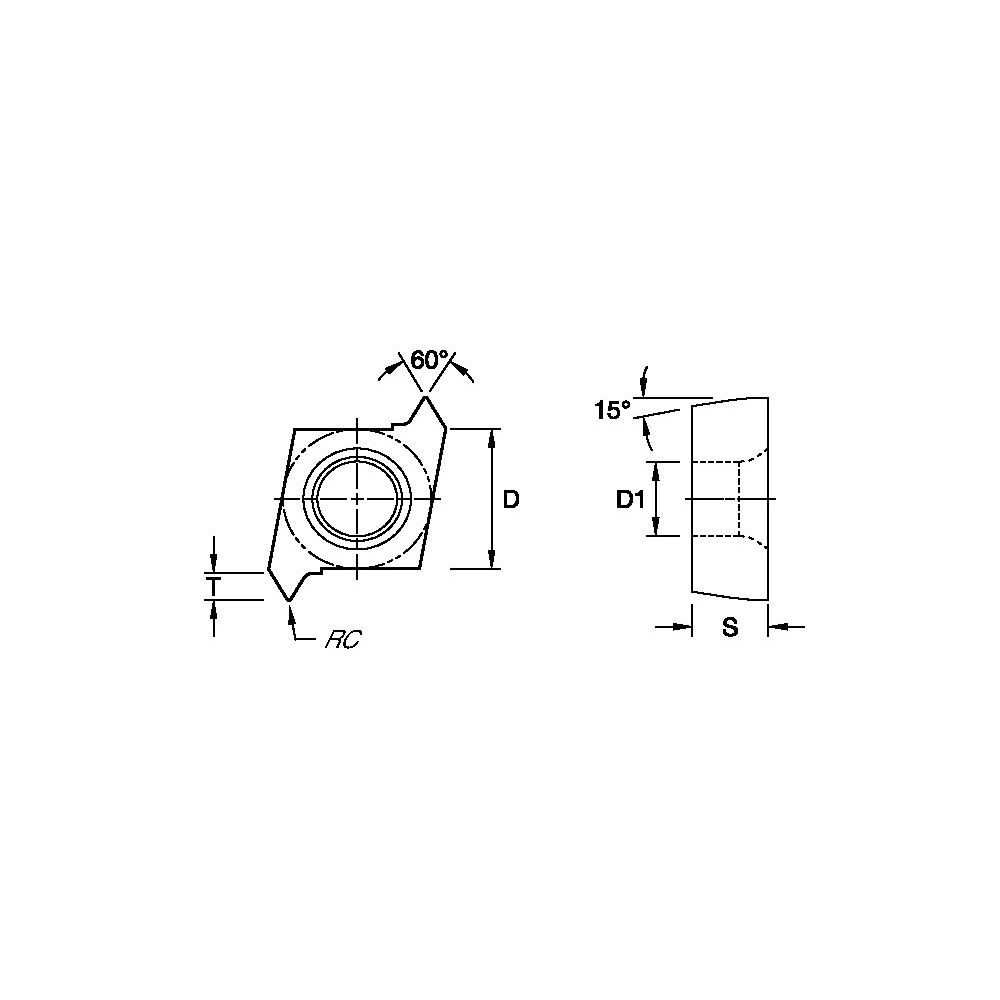

Technical Details
Clearance Ang Main Cut Edge [CM]	15.000
Coating	TiAlN
Corner Radius Centre Inch [RC]	0.0020
Corner Radius Centre Metric [RC]	0.0500
Cutting Depth Inch [T]	0.0250
Cutting Depth Metric [T]	0.6350
Cutting Tool Material	Carbide
Insert Hand	R - Right
Insert Hole Size Inch [D1]	0.0840
Insert Hole Size Metric [D1]	2.1340
Insert IC Size Inch [D]	0.1560
Insert IC Size Metric [D]	3.9620
Insert Mounting	4-Part Cycl w/70-90 TaperScrew
Insert Num of Cutting Edges	2
Insert Shape	Lay Down Misc
Insert Thickness Inch [S]	0.0500
Insert Thickness Metric [S]	1.2700
Profile Style	08 -Thd Typical
Style of Thread/V Belt Style	B -Internal & External
