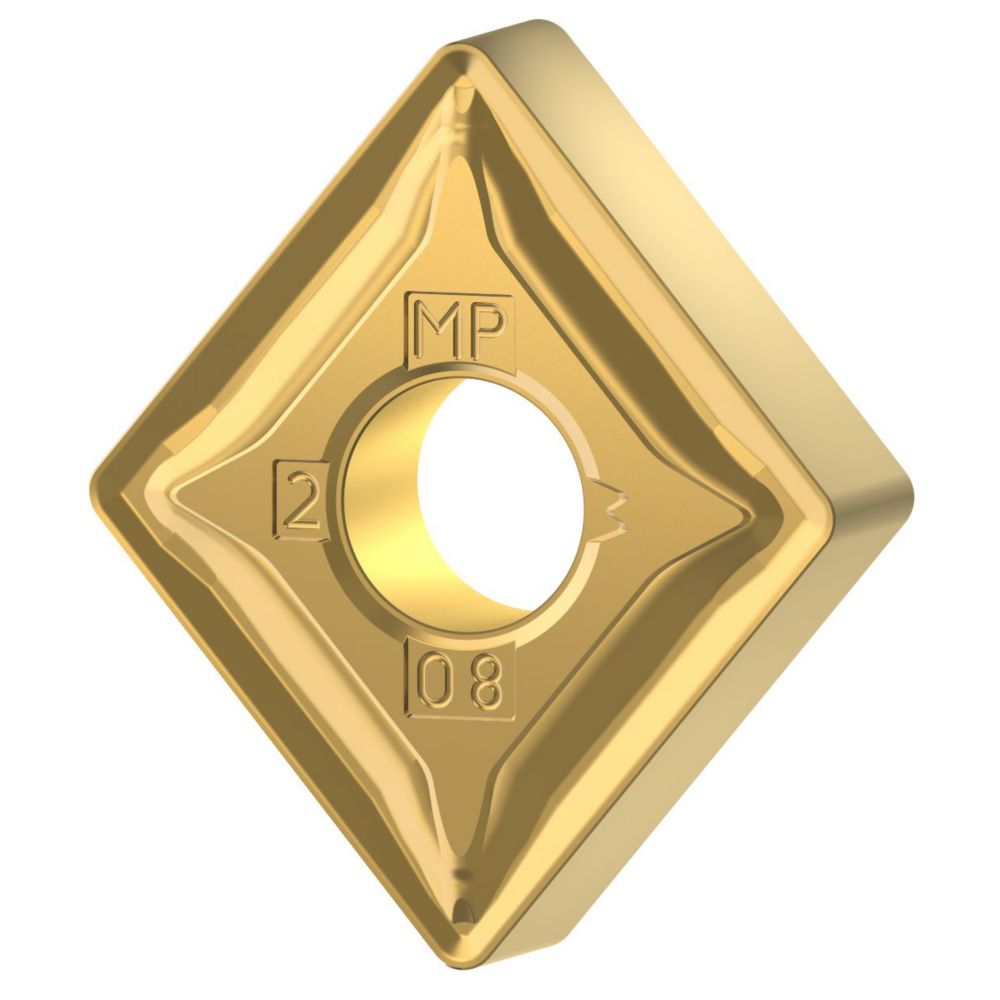

Kennametal • Negative Inserts • CNMG-MP • CNMG090308MP KCU10

Name: Kennametal • Negative Inserts • CNMG-MP • CNMG090308MP KCU10
SKU: KEN4050676
Availability: InStock

SKU: KEN4050676S/C: 4050676

Usually ships in 5 days

$8.71inc
GST

Kenloc™ Inserts

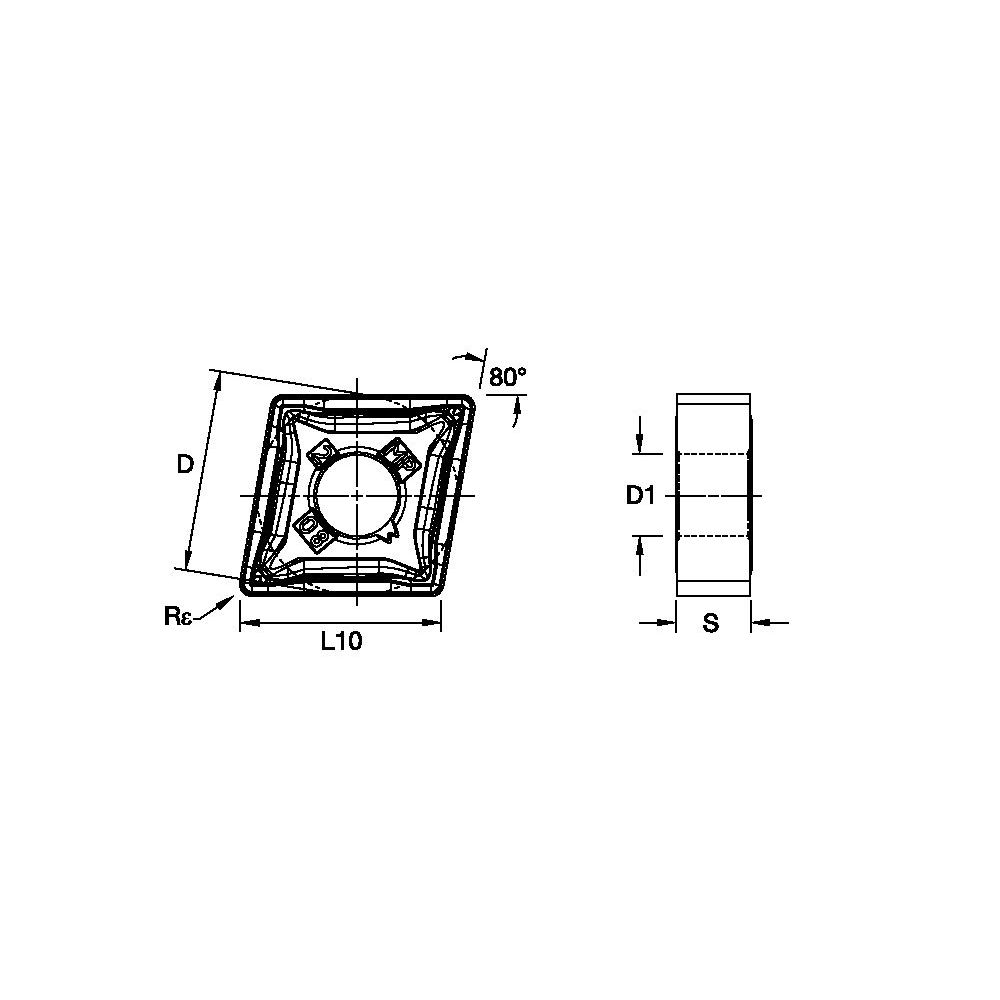

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	MP
Clearance Angle Major [ALPHAN]	0.000
Clearance Angle Minor [ALPHANM]	0.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	1/32
Corner Radius Inch [REPSILON]	0.031250
Corner Radius Metric [REPSILON]	0.8000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MG_MP
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.3808
Ins Cut Edge Length Metric [L10]	9.6720
Insert Gage Dimension Inch [M]	0.0868
Insert Gage Dimension Metric [M]	2.2060
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1500
Insert Hole Size Metric [D1]	3.8100
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	4
Insert Shape	C-Diamond/Rhombic 80
Insert Thickness Fraction [S]	1/8
Insert Thickness Inch [S]	0.1250
Insert Thickness Metric [S]	3.1800

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
