Kennametal • WPGT-UF • WPGT040202UF KCU10

Name: Kennametal • WPGT-UF • WPGT040202UF KCU10
SKU: KEN4045347
Availability: InStock

SKU: KEN4045347S/C: 4045347

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$22.85inc
GSTEACH

Screw-On Inserts

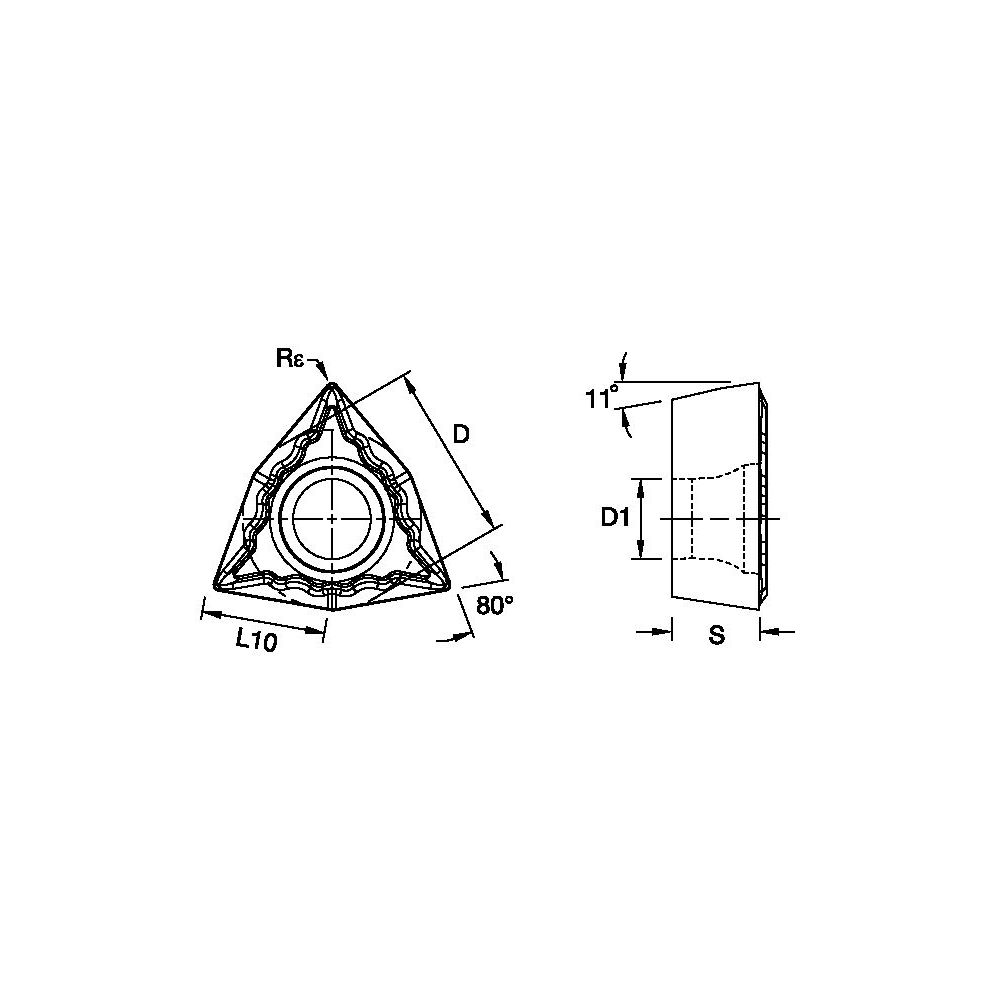

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	UF
Clearance Angle Major [ALPHAN]	11.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	.008
Corner Radius Inch [REPSILON]	0.008000
Corner Radius Metric [REPSILON]	0.2000
Cutting Tool Material	Carbide
Engineering Insert Geometry	GT_UF
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.1710
Ins Cut Edge Length Metric [L10]	4.3440
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1100
Insert Hole Size Metric [D1]	2.7940
Insert IC Size Fraction [D]	1/4
Insert IC Size Inch [D]	0.2500
Insert IC Size Metric [D]	6.3500
Insert Mounting	3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges	3
Insert Shape	W-Trigon 80
Insert Thickness Fraction [S]	3/32
Insert Thickness Inch [S]	0.0940
Insert Thickness Metric [S]	2.3810

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
