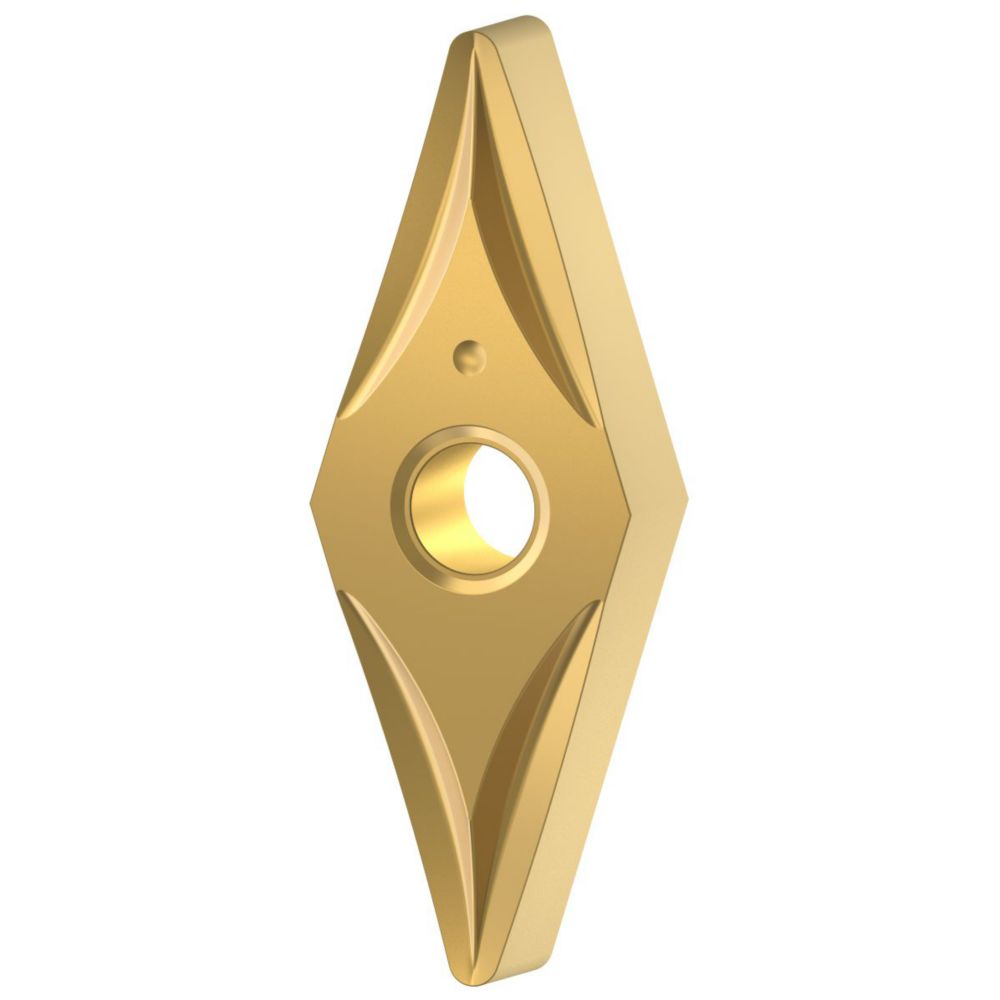

Kennametal • VNGP220404 KCU10
Kennametal • VNGP220404 KCU10 - Image 2
Kennametal • VNGP220404 KCU10 - Image 3

Kennametal • VNGP220404 KCU10

SKU: KEN4045147S/C: 4045147
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$44.97inc
GSTEACH

Price Match

Kenloc™ Inserts

  • Beyond™ Drive™ grades included
More Info
View all:

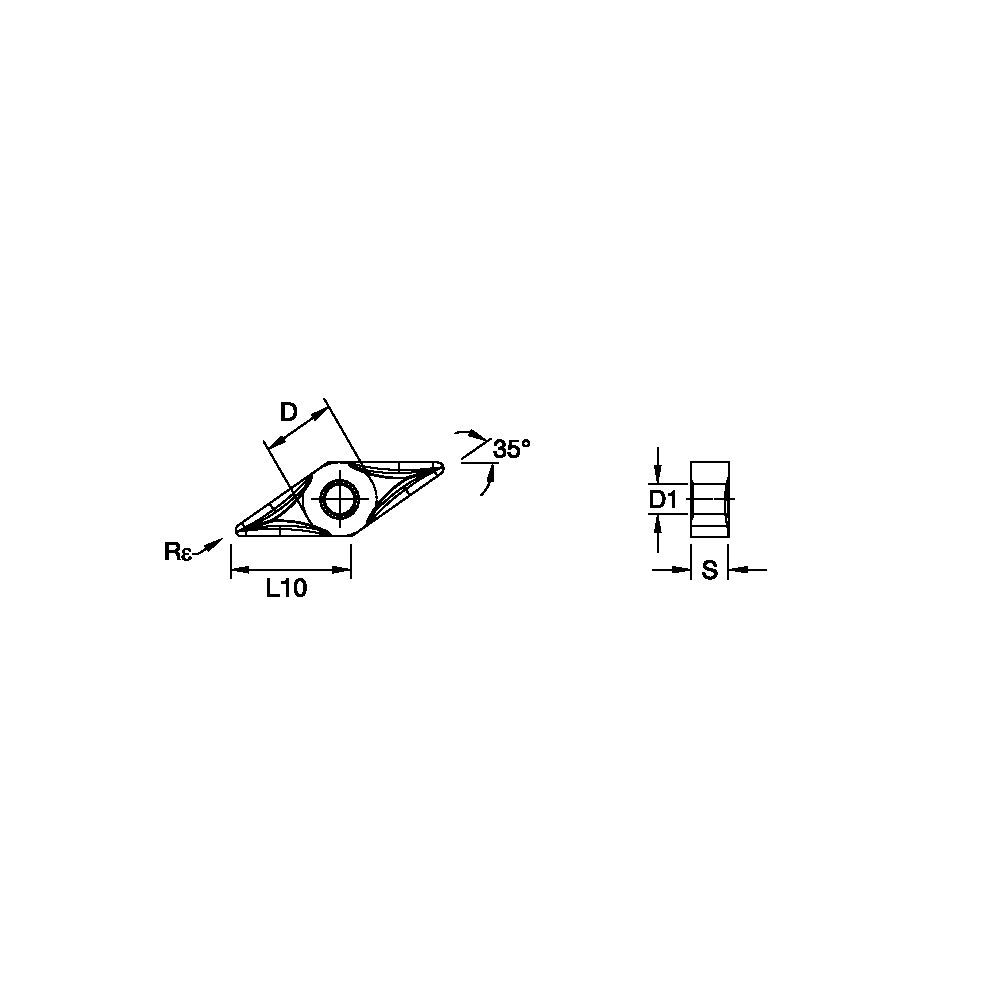

Technical Details
Chipbreaker1-Chipbreaker On One Side
Clearance Angle Major [ALPHAN]0.000
Clearance Angle Minor [ALPHANM]0.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015625
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialCarbide
Engineering Insert GeometryGP
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.8717
Ins Cut Edge Length Metric [L10]22.1420
Insert Gage Dimension Inch [M]0.5450
Insert Gage Dimension Metric [M]13.8440
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.2031
Insert Hole Size Metric [D1]5.1600
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting2-Cylindrical Fixing Hole
Insert Num of Cutting Edges2
Insert Rake Angle [GAMMA]10.000
Insert ShapeV-Diamond/Rhombic 35
Insert Thickness Fraction [S]3/16
Insert Thickness Inch [S]0.1875
Insert Thickness Metric [S]4.7600
