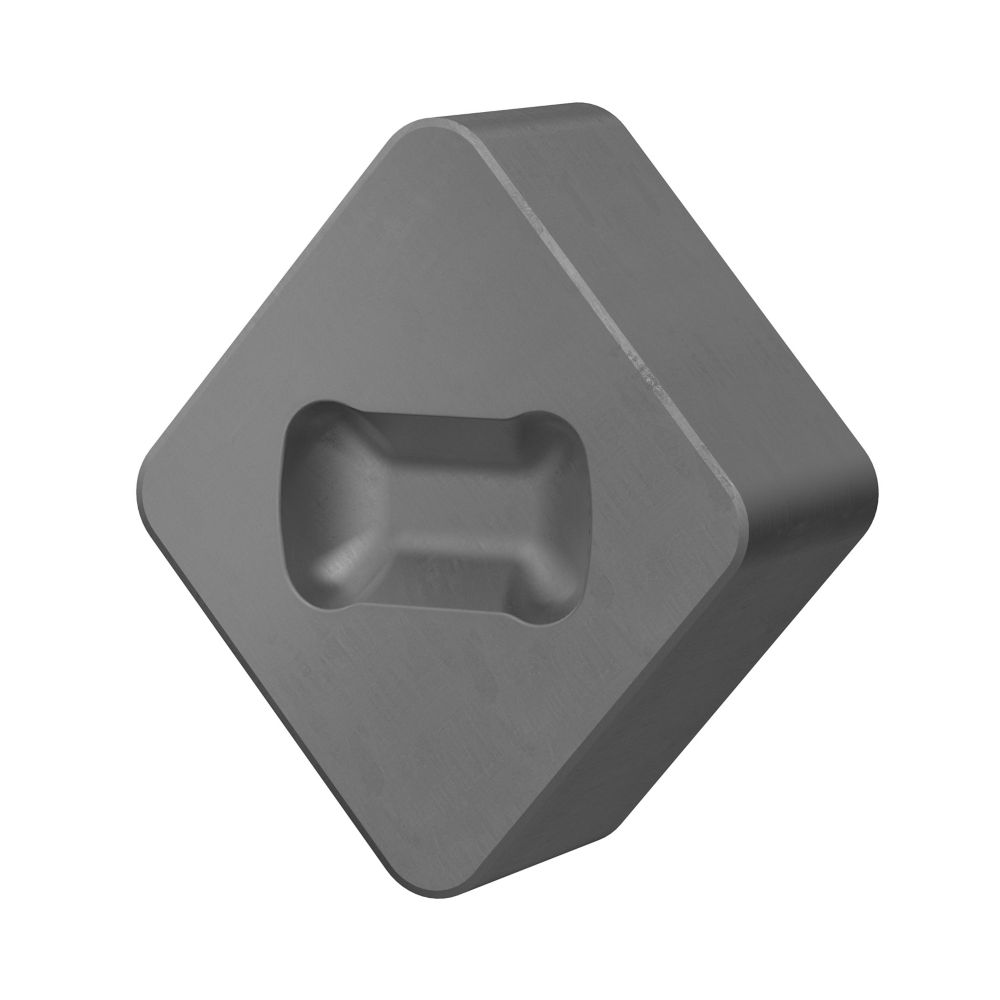

Kennametal • Kendex™ • Negative Inserts • CNGX • CNGX120416S02020 KB1340
Kennametal • Kendex™ • Negative Inserts • CNGX • CNGX120416S02020 KB1340 - Image 2

Kennametal • Kendex™ • Negative Inserts • CNGX • CNGX120416S02020 KB1340

SKU: KEN3960806S/C: 3960806
Usually ships in 5 daysExcluding weekends / Subject to availability

$363.00inc
GST

Price Match

ISO Turning Insert • Negative C-Style

This product doesn't have any features.

More Info
View all:

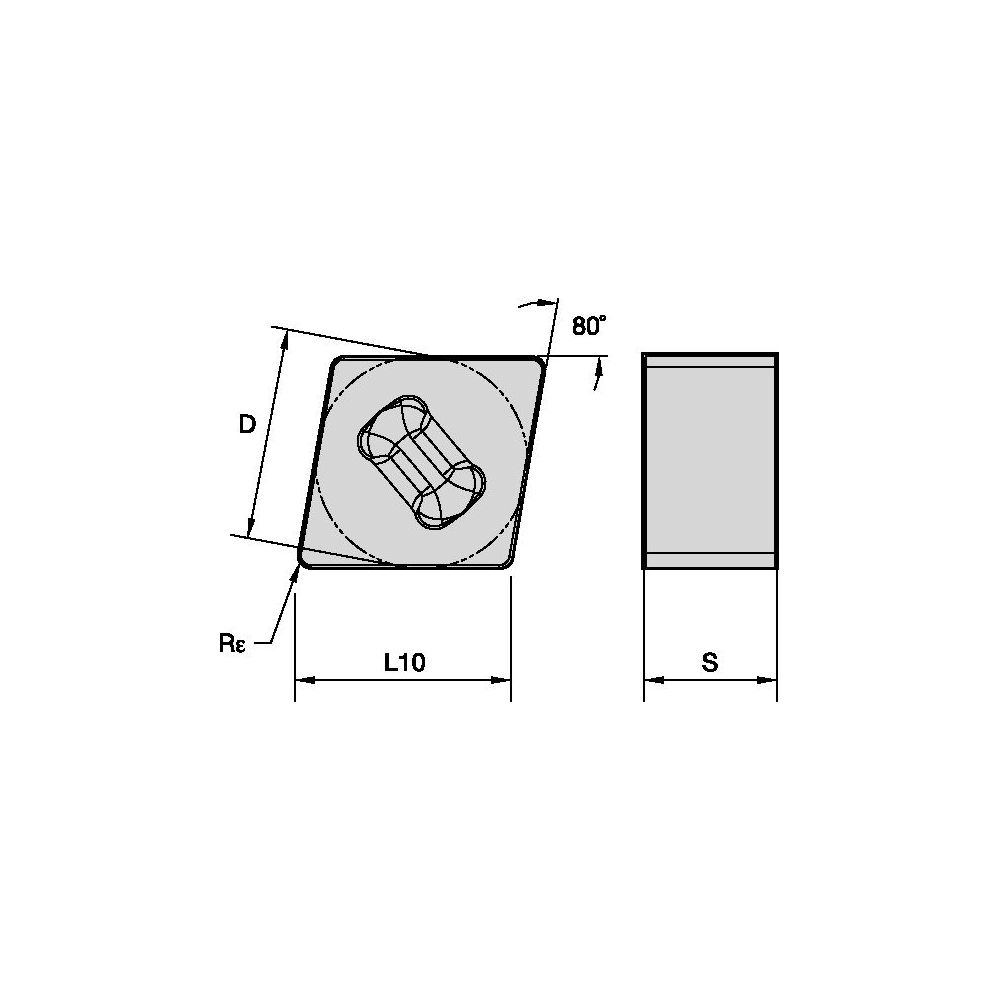

Technical Details
B Gamma Inch [BGAMMA]0.0080
B Gamma Metric [BGAMMA]0.2000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
Clearance Angle Minor [ALPHANM]0.000
CoatingUncoated
Corner Radius Frac [REPSILON]1/16
Corner Radius Inch [REPSILON]0.062500
Corner Radius Metric [REPSILON]1.5880
Cutting Tool MaterialBN-High CBN
Engineering Insert GeometryNGX_S02020
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.5077
Ins Cut Edge Length Metric [L10]12.8960
Insert Gage Dimension Inch [M]0.1042
Insert Gage Dimension Metric [M]2.6470
Insert HandN - Neutral
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting0-Other Clamp Systems
Insert Num of Cutting Edges8
Insert ShapeC-Diamond/Rhombic 80
Insert Thickness Fraction [S]3/16
Insert Thickness Inch [S]0.1875
Insert Thickness Metric [S]4.7620
