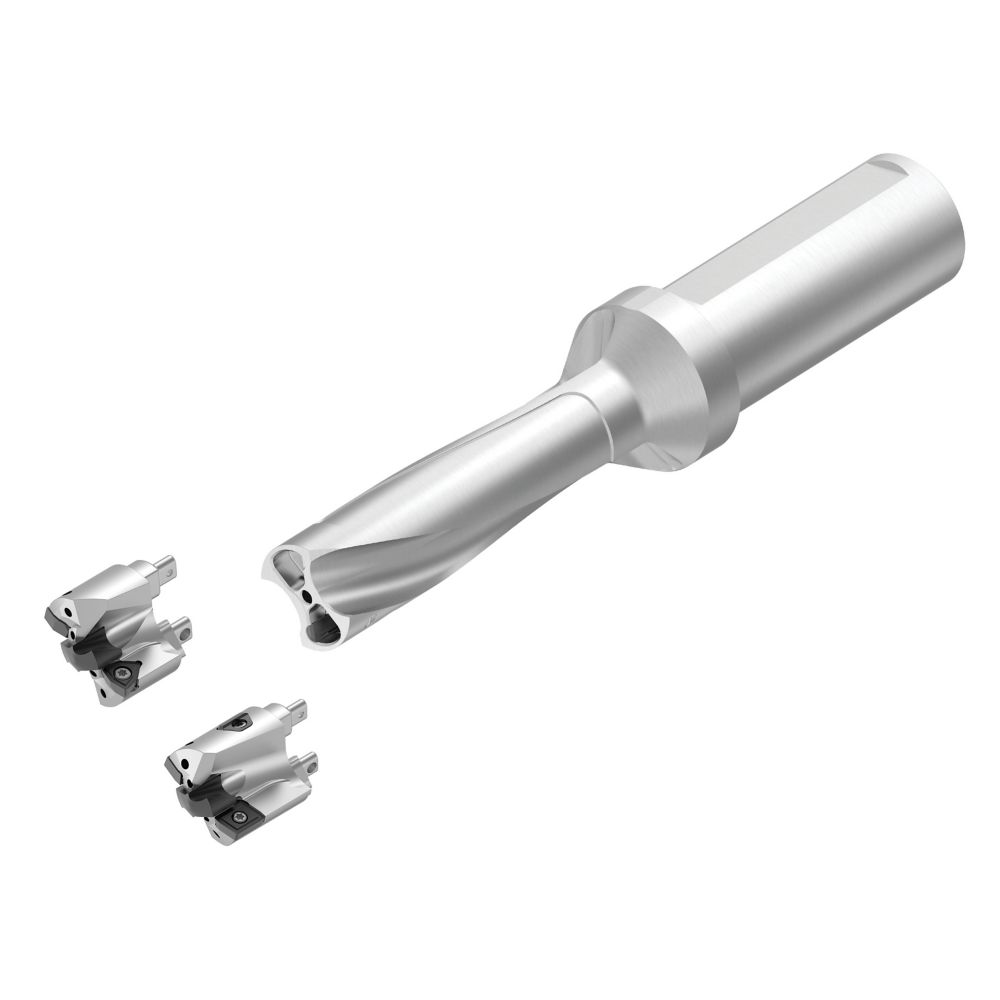

Kennametal • KSEM PLUS™ • Drill Body • 3xD • SSF Shank • Inch • SSF200FDS400721
Kennametal • KSEM PLUS™ • Drill Body • 3xD • SSF Shank • Inch • SSF200FDS400721 - Image 2

Kennametal • KSEM PLUS™ • Drill Body • 3xD • SSF Shank • Inch • SSF200FDS400721

SKU: KEN3952344S/C: 3952344
Usually ships in 5 daysExcluding weekends / Subject to availability

$1,101.10inc
GST

Price Match

Modular Drilling • Flanged Shank (SSF)

  • Use KSEM PLUS™ A1 head for lowest cost per hole
  • Use KSEM PLUS™ B1 head for challenging conditions like stacked plates, cross holes and inclined exits
  • Stable double flat shank, featuring a lateral coolant entry on the flange for drilling applications on lathes
More Info
View all:
Technical Details
Adapter Style Machine SideCylindrical Shank 2 Flats
Adapter Type Machine SideCylindrical
Adapter Type Workpiece SideFDS - Flexible Drill System
Adapter/Shank/Bore Dia Frac [D]2
Adapter/Shank/Bore Dia Inch [D]2.0000
Adapter/Shank/Bore Dia Metric [D]50.8000
Body Dia 1 Workpiece Side Inch [D2]1.5160
Body Dia 1 Workpiece Side Metric [D2]38.5000
Centreline Height Inch [H1]0.0000
Centreline Height Metric [H1]0.0000
Clamping LG Mach Side Inch [L9MS]3.7500
Clamping LG Mach Side Metric [L9MS]95.2500
Coolant Entry StyleConcentric Axial Coolant
Coolant ExitConcentric Axial Coolant
Coolant Hole Dia Exit Inch [A1]0.1575
Coolant Hole Dia Exit Metric [A1]4.0010
Coolant Hole Dia Inch [A]0.2756
Coolant Hole Dia Metric [A]7.0000
Coolant Size Radial [CF]1/8-27 NPT
Coolant SupplyYes
Coolant Supply Size [CS]1/8-27NPT
Front End Tool TypeModular Adapter
Functional Length Inch [LF]7.2047
Functional Length Metric [LF]183.0000
Gage Length 1 Inch [L1]7.2047
Gage Length 1 Metric [L1]183.0000
Hand of ToolN - Neutral
Overall Length Inch [L]11.2050
Overall Length Metric [L]284.6000
Protruding Length Inch [LPR]7.2047
Protruding Length Metric [LPR]183.0000
Shank Length Inch [LS]3.7500
Shank Length Metric [LS]95.2500
System Size Workpiece Side [CSWS]FDS40
Tool Assembly Length Inch [LTA]7.4550
Tool Assembly Length Metric [LTA]189.3500
Usable Length Inch [L2]4.2130
Usable Length Metric [L2]107.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
