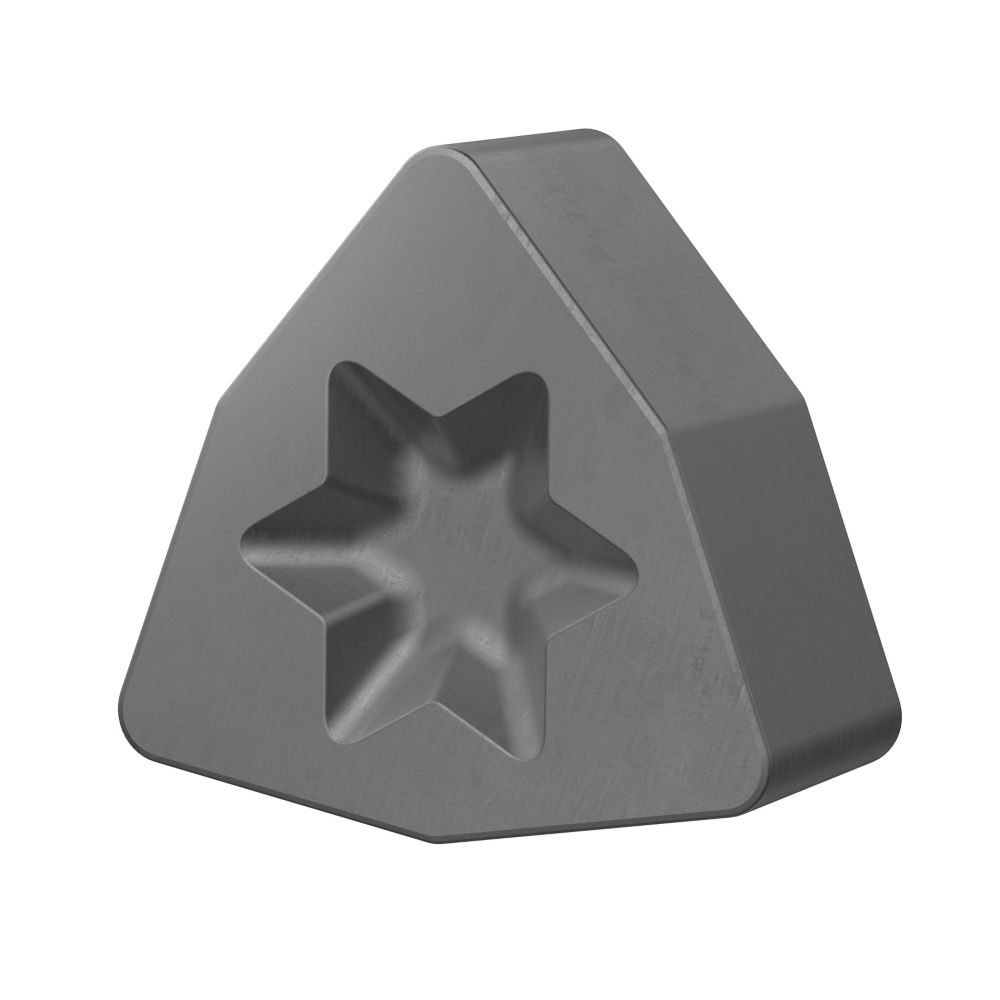

Kennametal • Negative Inserts • WNGX • WNGX080712T02020 KYK10
Kennametal • Negative Inserts • WNGX • WNGX080712T02020 KYK10 - Image 2

Kennametal • Negative Inserts • WNGX • WNGX080712T02020 KYK10

SKU: KEN3876333S/C: 3876333
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 10. Pricing is for individual items in the pack.

$44.73inc
GSTEACH

Price Match

Kendex™ Inserts

This product doesn't have any features.

More Info
View all:

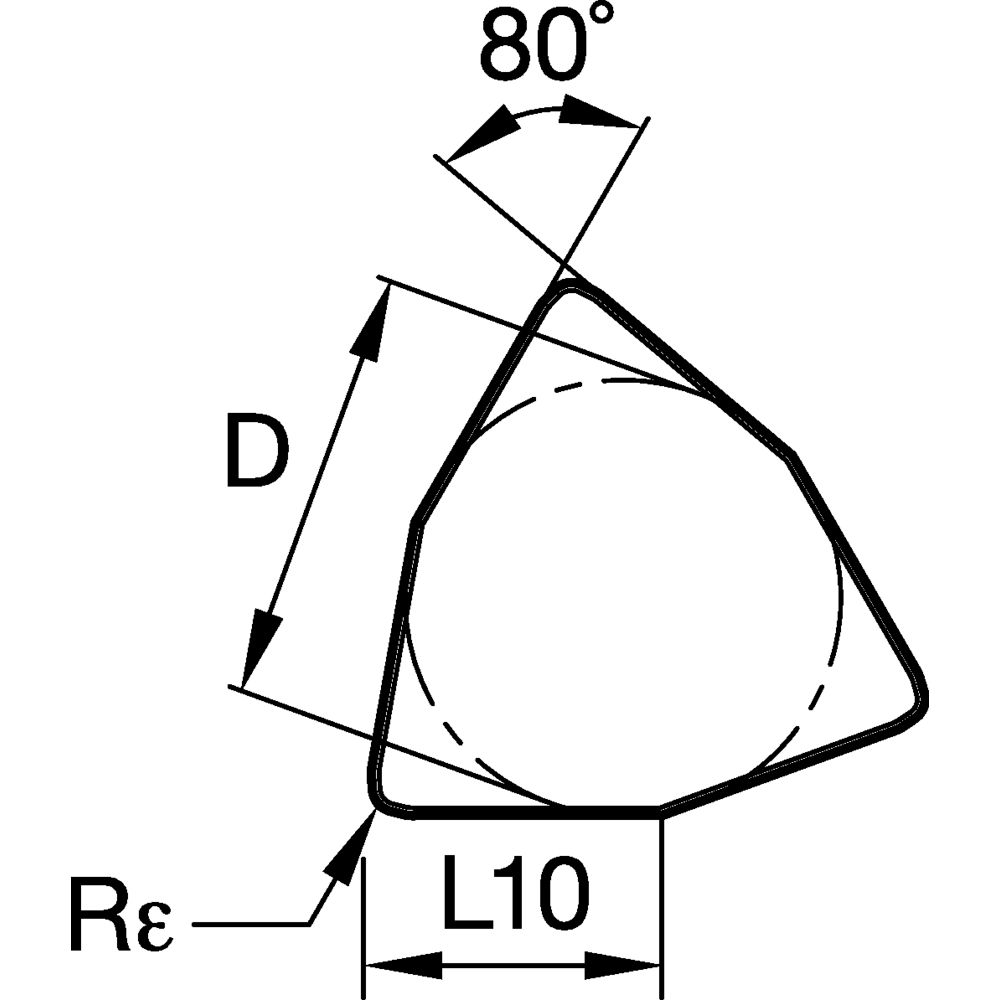

Technical Details
B Gamma Inch [BGAMMA]0.0080
B Gamma Metric [BGAMMA]0.2000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
Clearance Angle Minor [ALPHANM]0.000
CoatingUncoated
Corner Radius Frac [REPSILON]3/64
Corner Radius Inch [REPSILON]0.046875
Corner Radius Metric [REPSILON]1.2000
Cutting Tool MaterialCeramic-Si
Engineering Insert GeometryNGX_T02020_SD
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.3420
Ins Cut Edge Length Metric [L10]8.6870
Insert Gage Dimension Inch [M]0.1129
Insert Gage Dimension Metric [M]2.8670
Insert HandN - Neutral
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting5-With Notch Clamping
Insert Num of Cutting Edges6
Insert ShapeW-Trigon 80
Insert Thickness Fraction [S]5/16
Insert Thickness Inch [S]0.3125
Insert Thickness Metric [S]7.9400

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
