| Technical Details | |
|---|---|
| 1st Max Cut Depth | 52.8300mm |
| Adapter Type Machine Side | Shell Mill |
| Adapter/Shank/Bore Dia. | 27.0000mm |
| Body Diameter Max | 61.5000mm |
| Body Material Group | Steel |
| Clamping Type | Screw Clamping |
| Coolant Entry Style | Concentric Axial Coolant |
| Coolant Exit | Angular Axial w/ Nozzle |
| Coolant Supply | Yes |
| Effective Cutting Dia. | 63.0000mm |
| Family | Indexable Helical Shell Mills |
| Hand of Tool | R - Right |
| Insert Shape | E - Parallelogram 70° |
| Machining Operation | Periph/Side/Shldr Mill |
| Material | Steel |
| Max Ramping Angle | 1.95° |
| Milling Type | End Mill |
| Number of Flutes | 5 |
| Number of Inserts | 20 |
| Overall Length | 75.0000mm |
| Position of Insert | Lay Down |
| Rake Angle Style | Positive-Negative |

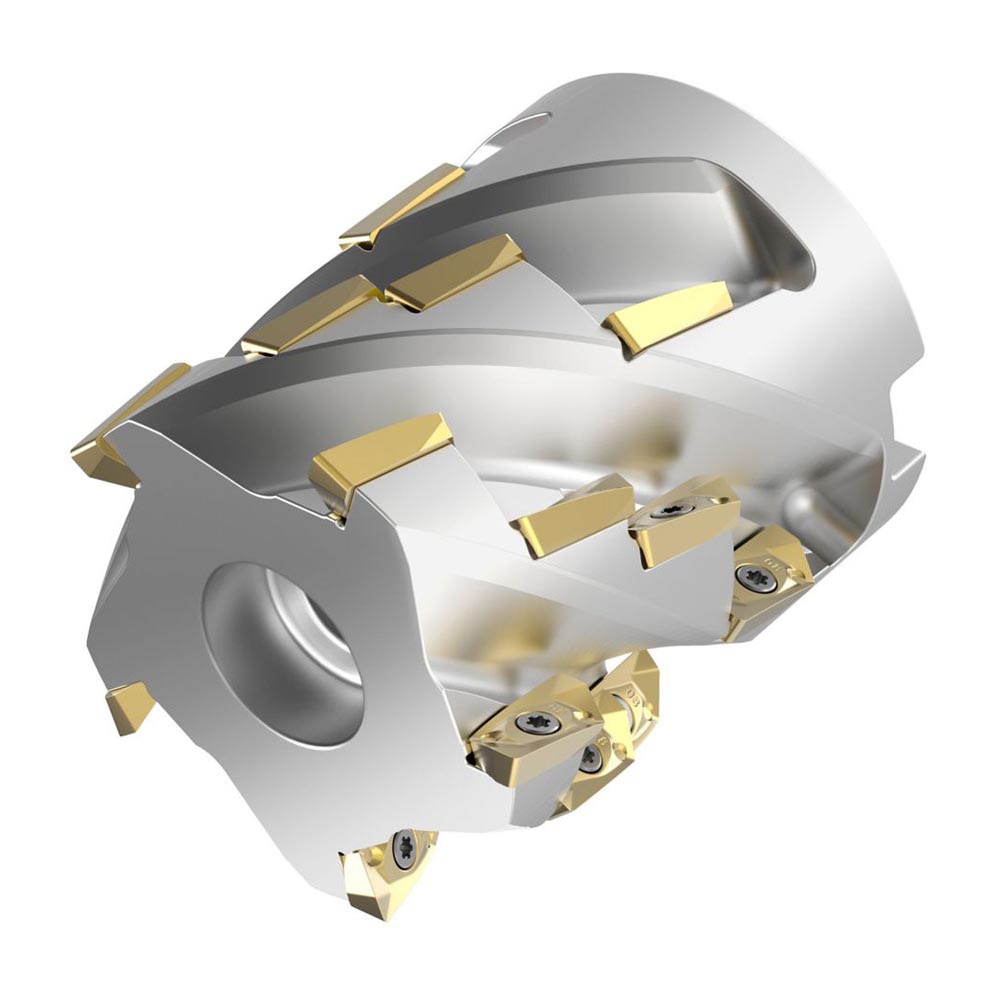

Kennametal M1H63T5R75A27S90ED14C20 Mill 1-14 Helical Shell Mill D = 63 Z = 5
$2,145.53inc
GST
Kennametal was founded on the strength of a technological breakthrough, and a list of highlights demonstrates that it has continued to lead its industry in innovation.
- Aggressive ramping rates.
- Generates superior surface finish.
- Mill 90° walls.
- Axial support pins.
- Unique coolant nozzles.
- Kennametal leads the industry in innovation
View all: Mill 1-14™ Helical
We don't have any datasheets for this product.
We don't have any media for this product.
This product is handy for all trades.
