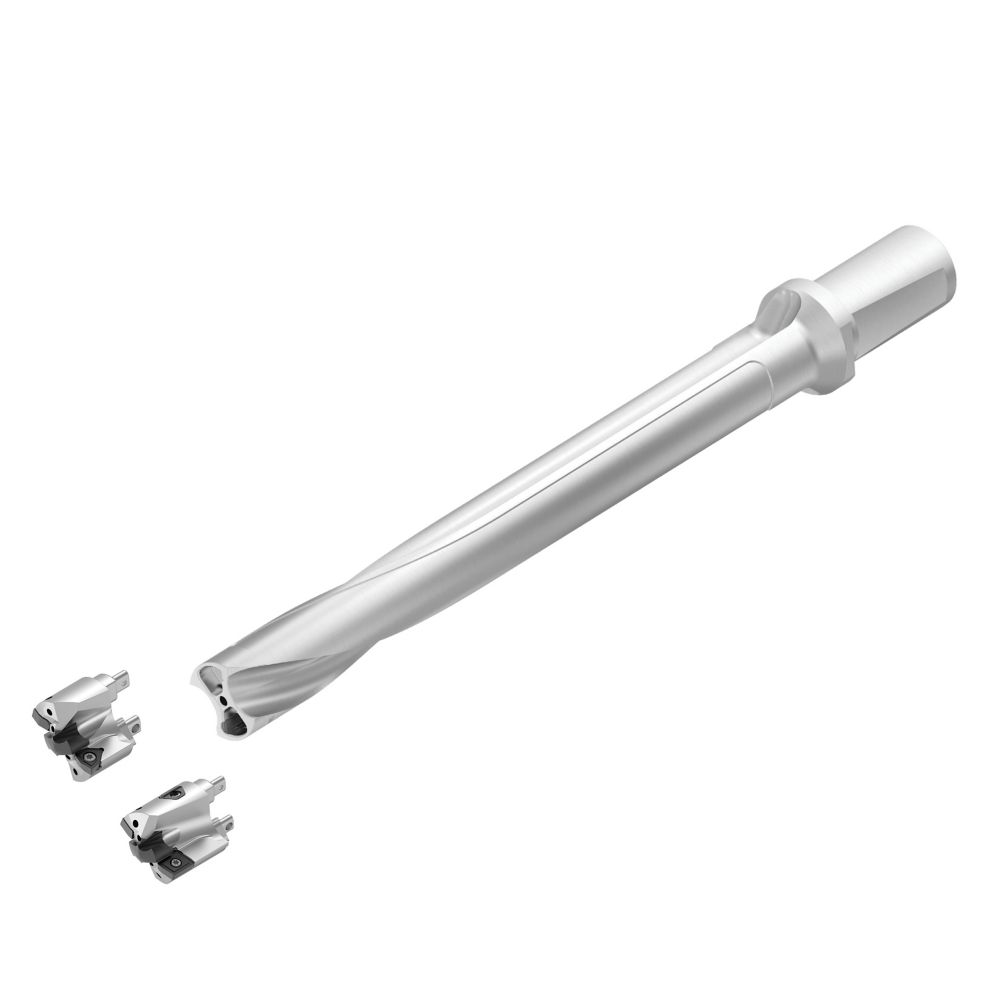

Kennametal • KSEM PLUS™ • Drill Body • 8xD • WD Shank • Metric • WD50FDS63639M

Name: Kennametal • KSEM PLUS™ • Drill Body • 8xD • WD Shank • Metric • WD50FDS63639M
SKU: KEN3794455
Availability: InStock

SKU: KEN3794455S/C: 3794455

Usually ships in 5 days

$2,069.10inc
GST

Modular Drilling • Whistle Notch™ Shank (WD)

Use KSEM PLUS™ A1 head for lowest cost per hole.
Use KSEM PLUS™ B1 head for challenging conditions like stacked plates, cross holes and inclined exits

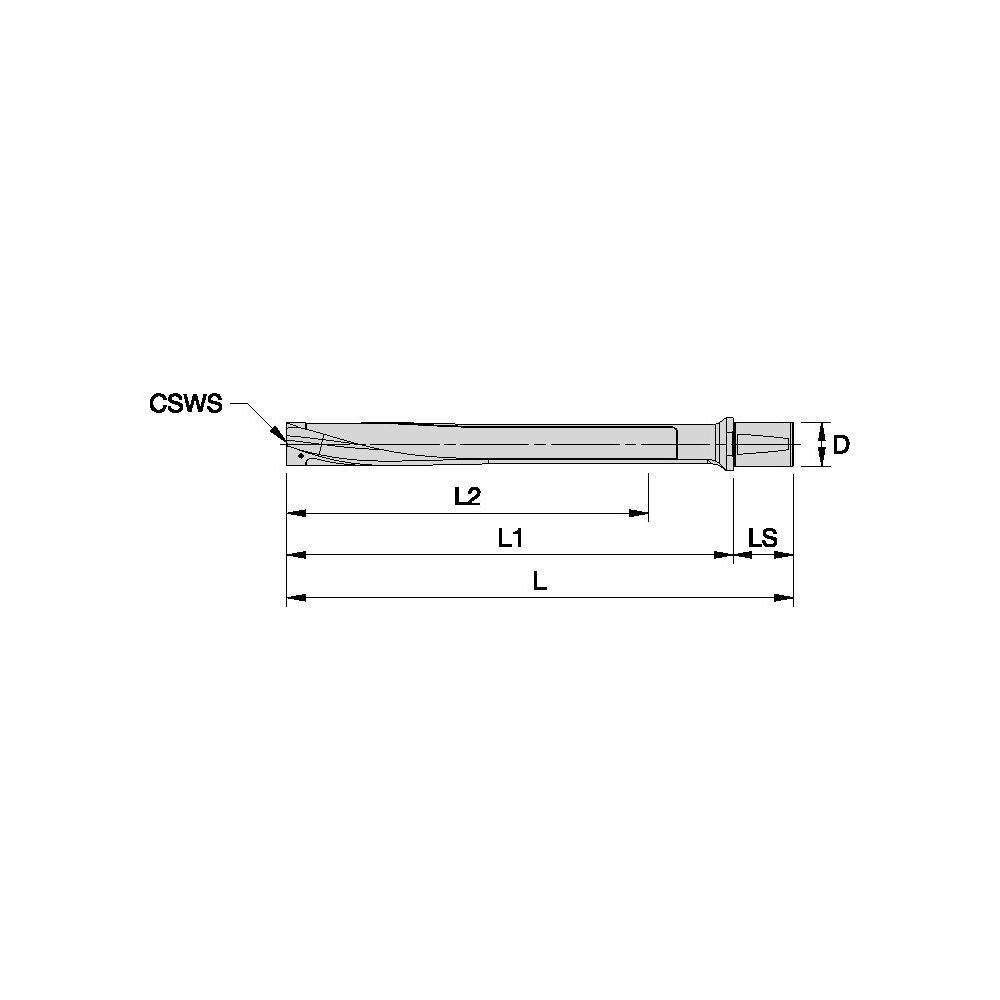

Technical Details
Adapter Style Machine Side	Whistle Drive 2
Adapter Type Machine Side	Cylindrical
Adapter Type Workpiece Side	FDS - Flexible Drill System
Adapter/Shank/Bore Dia Frac [D]	1.9685
Adapter/Shank/Bore Dia Inch [D]	1.9685
Adapter/Shank/Bore Dia Metric [D]	50.0000
Body Dia 1 Workpiece Side Inch [D2]	2.4213
Body Dia 1 Workpiece Side Metric [D2]	61.5000
Centreline Height Inch [H1]	0.0000
Centreline Height Metric [H1]	0.0000
Clamping LG Mach Side Inch [L9MS]	2.6772
Clamping LG Mach Side Metric [L9MS]	68.0000
Coolant Entry Style	Concentric Axial Coolant
Coolant Exit	Concentric Axial Coolant
Coolant Hole Dia Exit Inch [A1]	0.2362
Coolant Hole Dia Exit Metric [A1]	6.0000
Coolant Hole Dia Inch [A]	0.3937
Coolant Hole Dia Metric [A]	10.0000
Coolant Supply	Yes
Front End Tool Type	Modular Adapter
Functional Length Inch [LF]	25.1575
Functional Length Metric [LF]	639.0000
Gage Length 1 Inch [L1]	25.1575
Gage Length 1 Metric [L1]	639.0000
Hand of Tool	N - Neutral
L1 Assembly Length Inch [L1Assy]	26.5748
L1 Assembly Length Metric [L1Assy]	675.0000
Overall Length Inch [L]	27.8346
Overall Length Metric [L]	707.0000
Protruding Length Inch [LPR]	25.1575
Protruding Length Metric [LPR]	639.0000
Shank Length Inch [LS]	2.6772
Shank Length Metric [LS]	68.0000
System Size Workpiece Side [CSWS]	FDS63
Tool Assembly Length Inch [LTA]	25.1575
Tool Assembly Length Metric [LTA]	639.0000
Usable Length Inch [L2]	20.6299
Usable Length Metric [L2]	524.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
