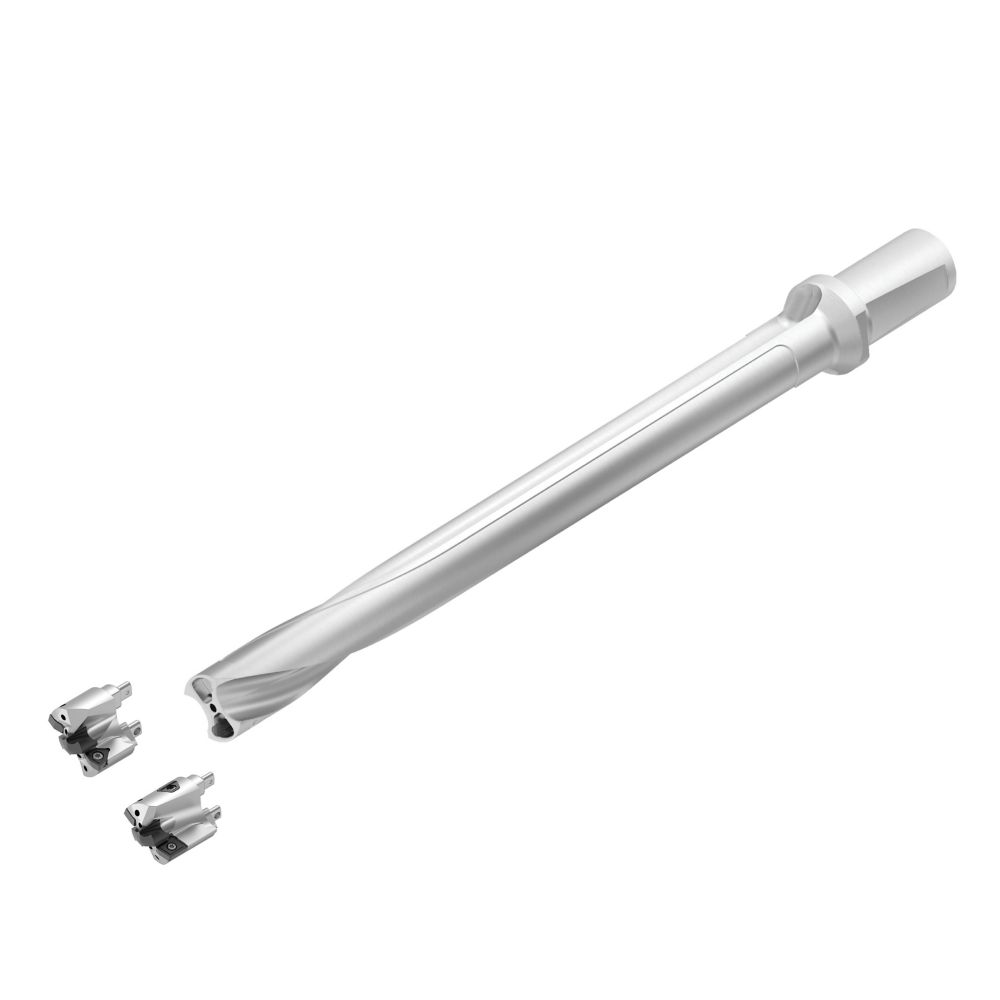

Kennametal • KSEM PLUS™ • Drill Body • 10xD • WD Shank • Metric • WD50FDS56693M
Kennametal • KSEM PLUS™ • Drill Body • 10xD • WD Shank • Metric • WD50FDS56693M - Image 2

Kennametal • KSEM PLUS™ • Drill Body • 10xD • WD Shank • Metric • WD50FDS56693M

SKU: KEN3794453S/C: 3794453
Usually ships in 5 daysExcluding weekends / Subject to availability

$2,335.30inc
GST

Price Match

Modular Drilling • Whistle Notch™ Shank (WD)

  • Use KSEM PLUS™ A1 head for lowest cost per hole
  • Use KSEM PLUS™ B1 head for challenging conditions like stacked plates, cross holes and inclined exits
More Info
View all:

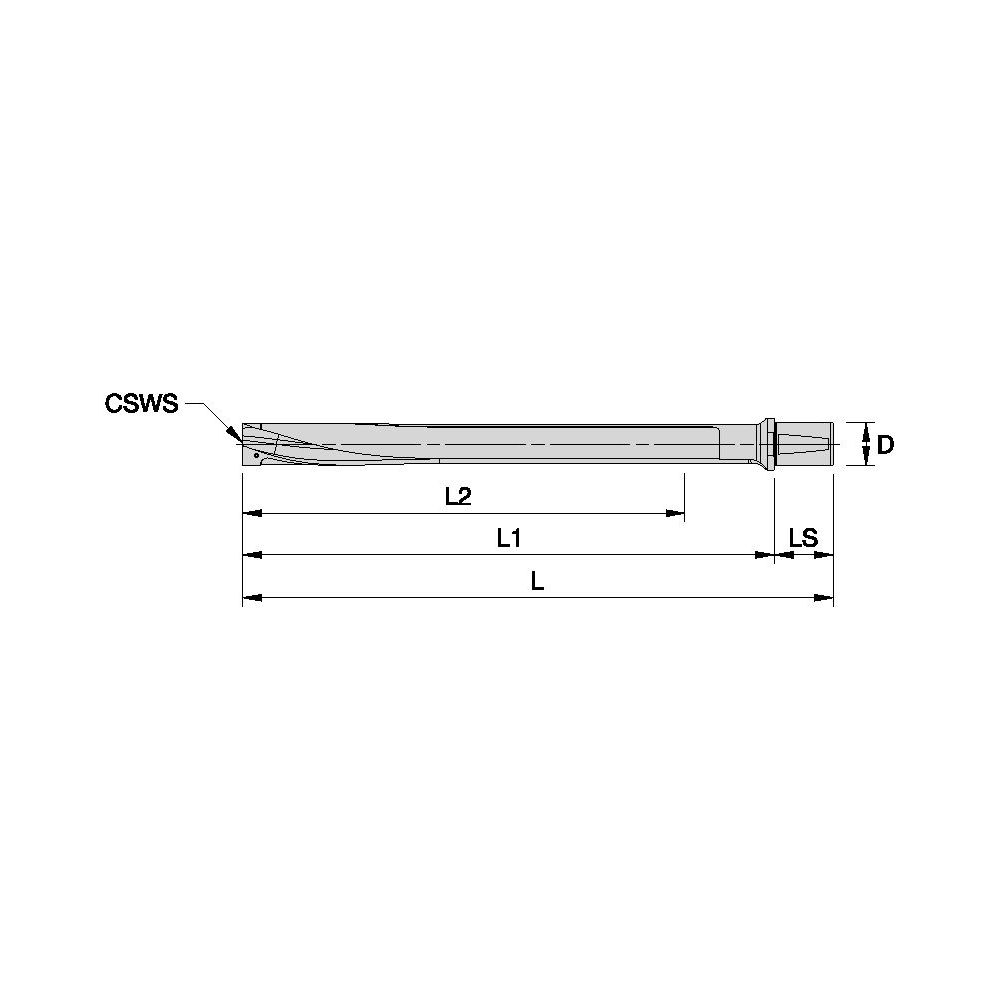

Technical Details
Adapter Style Machine SideWhistle Drive 2
Adapter Type Machine SideCylindrical
Adapter Type Workpiece SideFDS - Flexible Drill System
Adapter/Shank/Bore Dia Frac [D]1.9685
Adapter/Shank/Bore Dia Inch [D]1.9685
Adapter/Shank/Bore Dia Metric [D]50.0000
Body Dia 1 Workpiece Side Inch [D2]2.1457
Body Dia 1 Workpiece Side Metric [D2]54.5000
Centreline Height Inch [H1]0.0000
Centreline Height Metric [H1]0.0000
Clamping LG Mach Side Inch [L9MS]2.6772
Clamping LG Mach Side Metric [L9MS]68.0000
Coolant Entry StyleConcentric Axial Coolant
Coolant ExitConcentric Axial Coolant
Coolant Hole Dia Exit Inch [A1]0.1969
Coolant Hole Dia Exit Metric [A1]5.0000
Coolant Hole Dia Inch [A]0.3937
Coolant Hole Dia Metric [A]10.0000
Coolant SupplyYes
Front End Tool TypeModular Adapter
Functional Length Inch [LF]27.2835
Functional Length Metric [LF]693.0000
Gage Length 1 Inch [L1]27.2835
Gage Length 1 Metric [L1]693.0000
Hand of ToolN - Neutral
L1 Assembly Length Inch [L1Assy]28.4646
L1 Assembly Length Metric [L1Assy]723.0000
Overall Length Inch [L]29.9606
Overall Length Metric [L]761.0000
Protruding Length Inch [LPR]27.2835
Protruding Length Metric [LPR]693.0000
Shank Length Inch [LS]2.6772
Shank Length Metric [LS]68.0000
System Size Workpiece Side [CSWS]FDS56
Tool Assembly Length Inch [LTA]27.2835
Tool Assembly Length Metric [LTA]693.0000
Usable Length Inch [L2]23.2283
Usable Length Metric [L2]590.0000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
