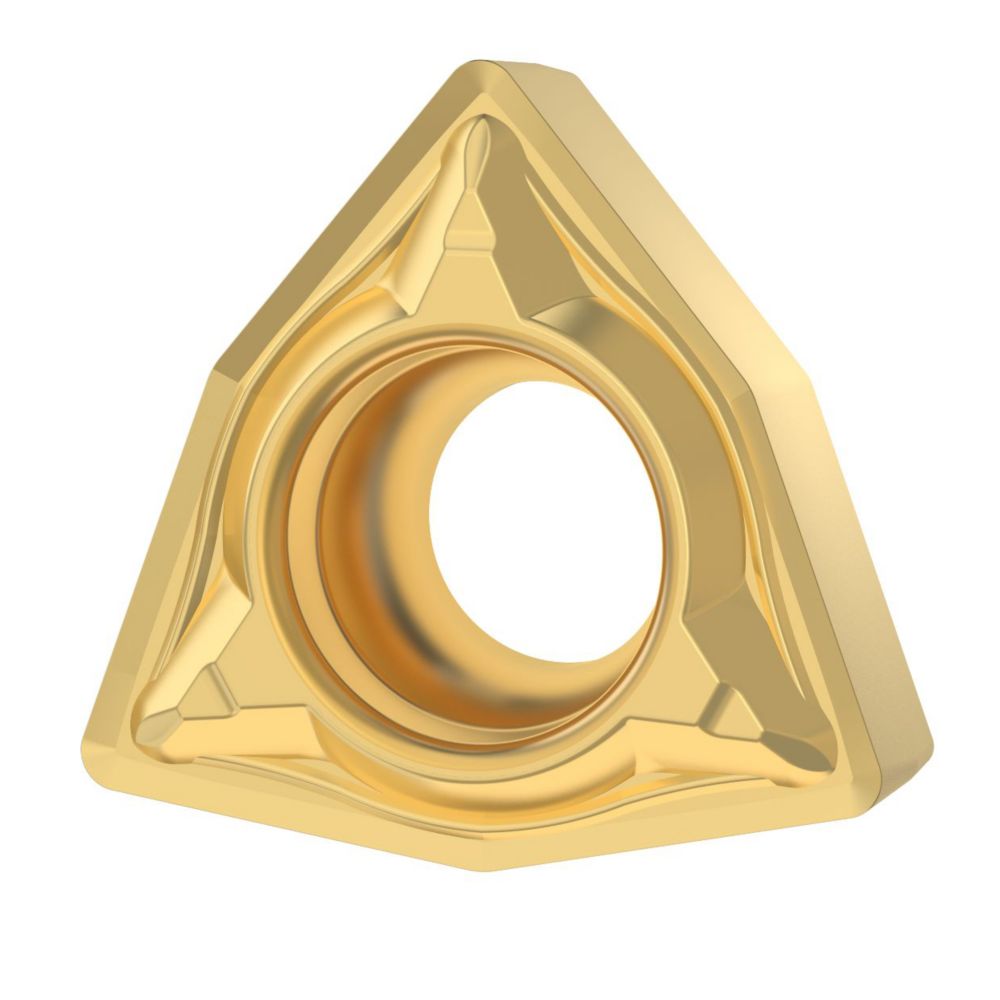

Kennametal • WCMT-FP • WCMT06T308FP KCS10

Name: Kennametal • WCMT-FP • WCMT06T308FP KCS10
SKU: KEN3769408
Availability: InStock

SKU: KEN3769408S/C: 3769408

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$11.96inc
GSTEACH

Screw-On Inserts

Finishing geometry with positive rake face for chip control in difficult materials.

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	FP

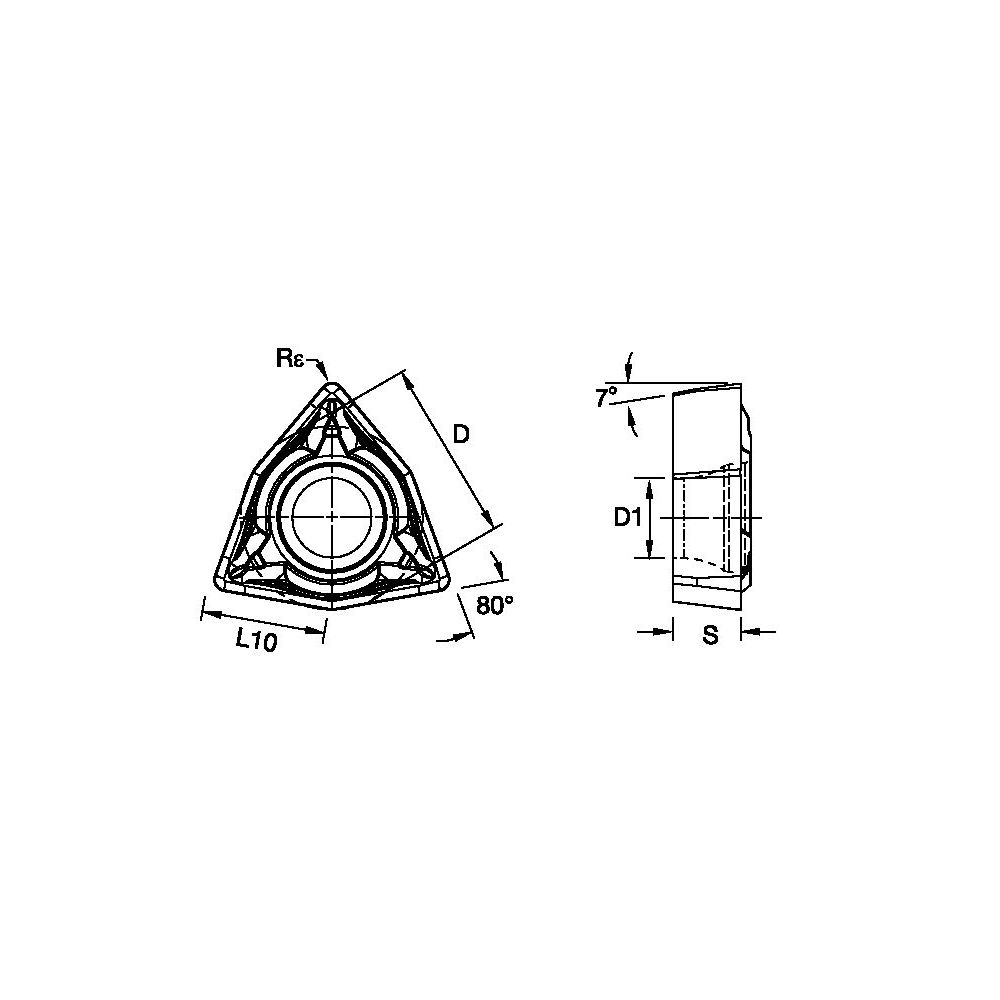

Clearance Angle Major [ALPHAN]	7.000
Clearance Angle Minor [ALPHANM]	7.000
Coating	AlTiN
Corner Radius Frac [REPSILON]	1/32
Corner Radius Inch [REPSILON]	0.031250
Corner Radius Metric [REPSILON]	0.8000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MT_FP
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.2565
Ins Cut Edge Length Metric [L10]	6.5150
Insert Gage Dimension Inch [M]	0.0868
Insert Gage Dimension Metric [M]	2.2060
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1732
Insert Hole Size Metric [D1]	4.4000
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges	3
Insert Shape	W-Trigon 80
Insert Thickness Fraction [S]	5/32
Insert Thickness Inch [S]	0.1563
Insert Thickness Metric [S]	3.9700

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
