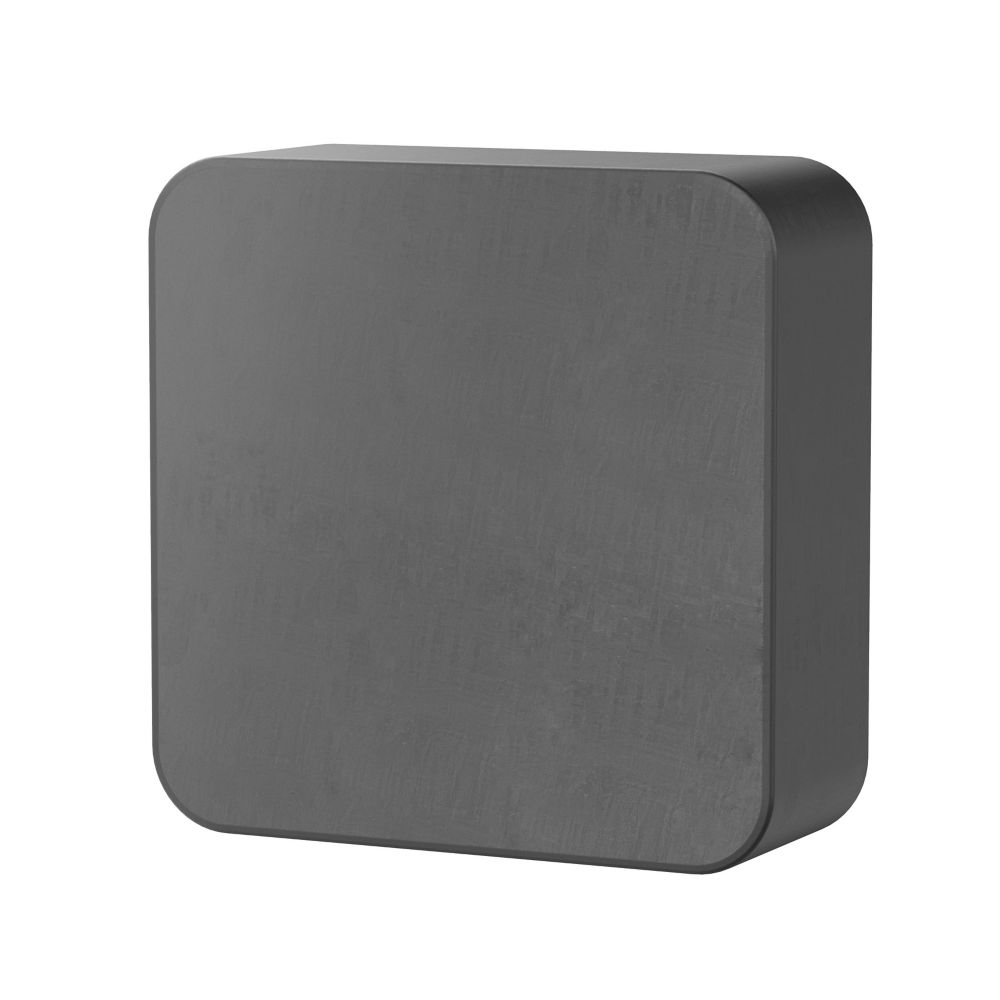

Kennametal • Negative Inserts • SNMN • SNMN090308S02020 KB1340
Kennametal • Negative Inserts • SNMN • SNMN090308S02020 KB1340 - Image 2

Kennametal • Negative Inserts • SNMN • SNMN090308S02020 KB1340

SKU: KEN3764845S/C: 3764845
Usually ships in 5 daysExcluding weekends / Subject to availability

$503.36inc
GST

Price Match

Kendex™ Inserts

This product doesn't have any features.

More Info
View all:
Technical Details
B Gamma Inch [BGAMMA]0.0080
B Gamma Metric [BGAMMA]0.2000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]0.000
Clearance Angle Minor [ALPHANM]0.000
CoatingUncoated
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialBN-High CBN
Engineering Insert GeometryNMN
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.3750
Ins Cut Edge Length Metric [L10]9.5250
Insert Gage Dimension Inch [M]0.0647
Insert Gage Dimension Metric [M]1.6440
Insert HandN - Neutral
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting1-Without Fixing Hole
Insert Num of Cutting Edges8
Insert ShapeS-Square 90
Insert Thickness Fraction [S]1/8
Insert Thickness Inch [S]0.1250
Insert Thickness Metric [S]3.1800
