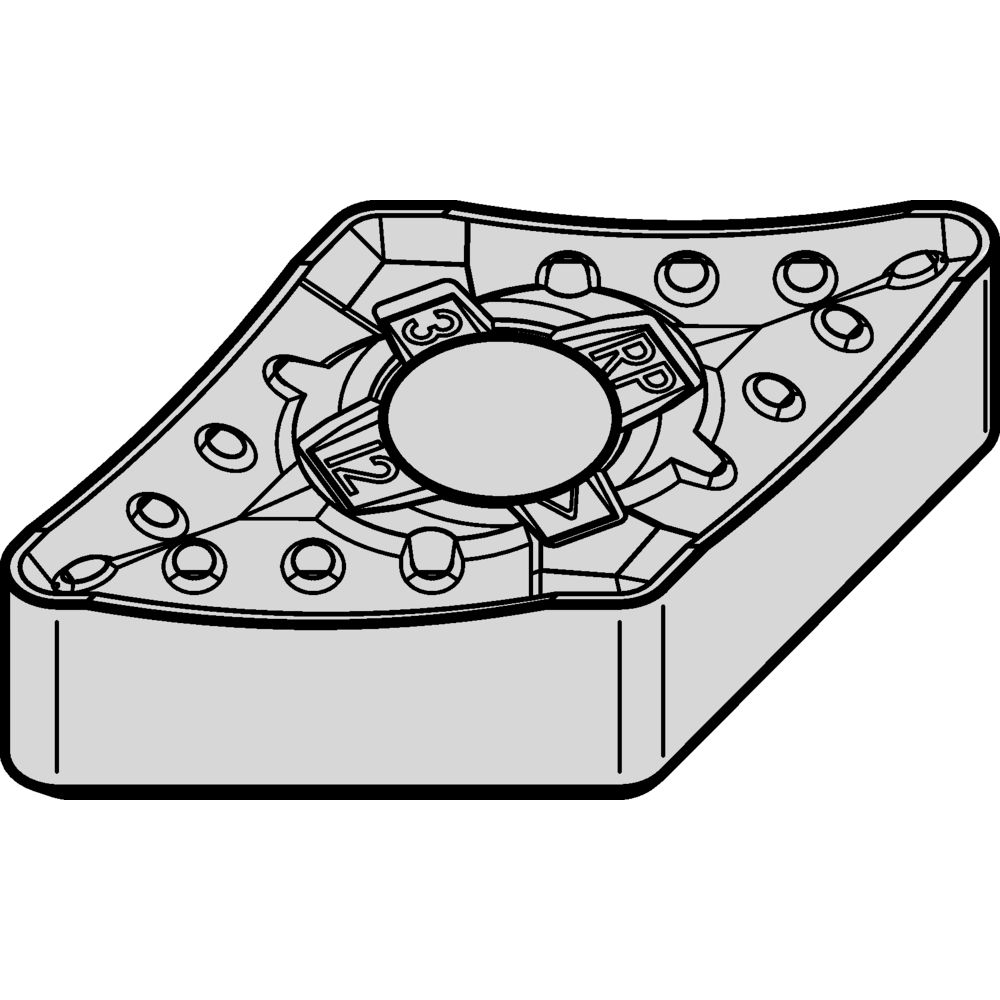

Kennametal • DNMM-RP • DNMM150608RP KCP10

Name: Kennametal • DNMM-RP • DNMM150608RP KCP10
SKU: KEN3753364
Availability: InStock

SKU: KEN3753364S/C: 3753364

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$20.23inc
GSTEACH

Kenloc™ Inserts

Roughing geometry with positive rake face for chip control in difficult materials.
Beyond™ Drive™ grades included.

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Chipbreaker Mfgr Designation	RP
Clearance Angle Major [ALPHAN]	0.000
Clearance Angle Minor [ALPHANM]	0.000
Coating	TiN
Corner Radius Frac [REPSILON]	1/32
Corner Radius Inch [REPSILON]	0.031250
Corner Radius Metric [REPSILON]	0.8000
Cutting Tool Material	Carbide
Engineering Insert Geometry	MM_RP
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.6104
Ins Cut Edge Length Metric [L10]	15.5040
Insert Gage Dimension Inch [M]	0.2550
Insert Gage Dimension Metric [M]	6.4770
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.2031
Insert Hole Size Metric [D1]	5.1600
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	2
Insert Rake Angle [GAMMA]	0.000
Insert Shape	D-Diamond/Rhombic 55
Insert Thickness Fraction [S]	1/4
Insert Thickness Inch [S]	0.2500
Insert Thickness Metric [S]	6.3500

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
