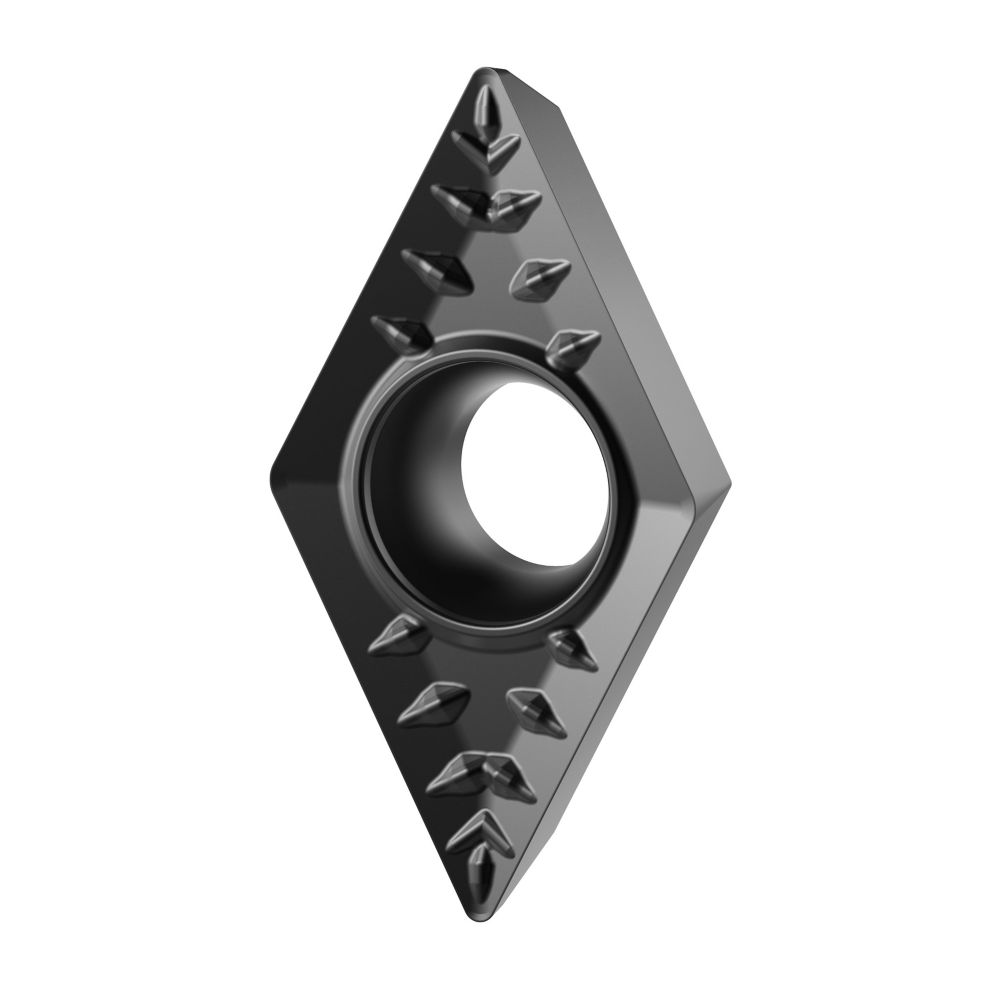

Kennametal • Positive Inserts • DPMT-MP • DPMT11T308MP KCS10
Kennametal • Positive Inserts • DPMT-MP • DPMT11T308MP KCS10 - Image 2

Kennametal • Positive Inserts • DPMT-MP • DPMT11T308MP KCS10

SKU: KEN3744983S/C: 3744983
Usually ships in 5 daysExcluding weekends / Subject to availability

$12.83inc
GST

Price Match

Screw-On Inserts

  • Medium geometry with positive rake face for chip control in difficult materials.
More Info
View all:

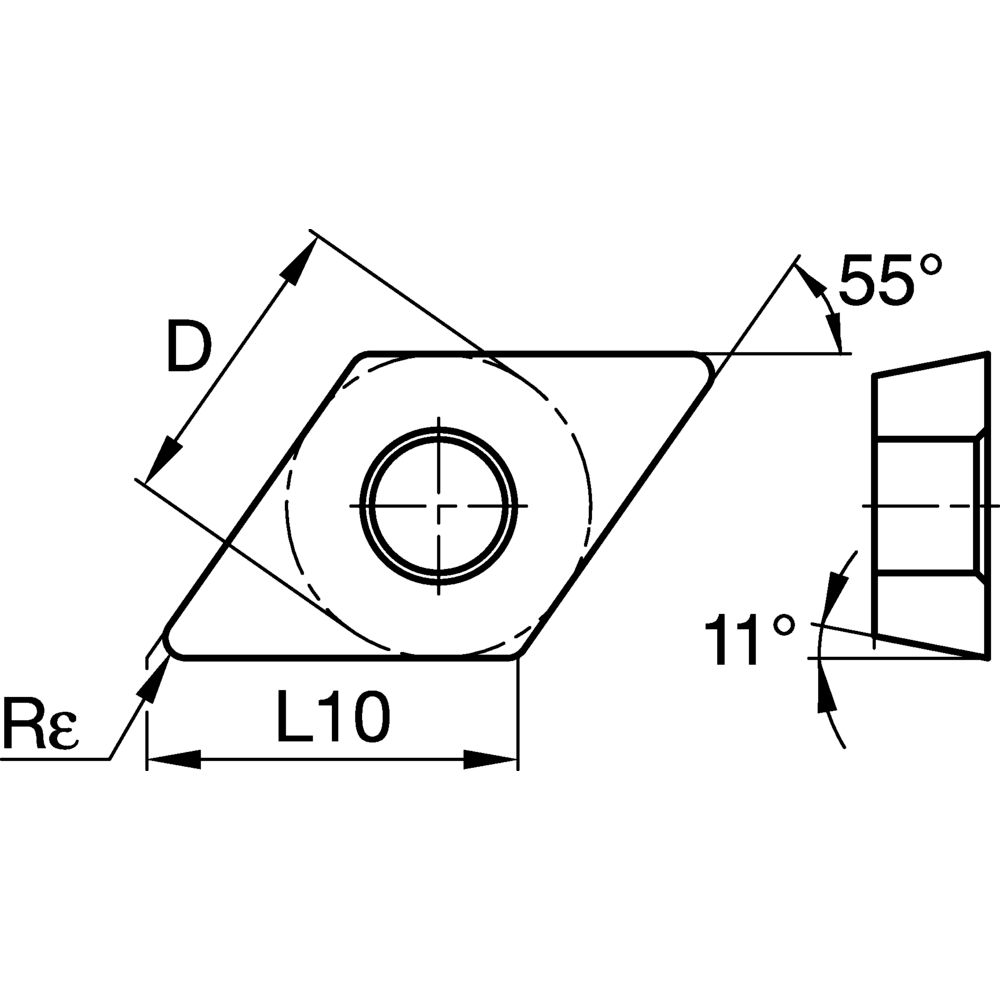

Technical Details
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationMP
Clearance Angle Major [ALPHAN]11.000
Clearance Angle Minor [ALPHANM]11.000
CoatingAlTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialCarbide
Engineering Insert GeometryMT_MP
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.4578
Ins Cut Edge Length Metric [L10]11.6280
Insert Gage Dimension Inch [M]0.1821
Insert Gage Dimension Metric [M]4.6260
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1732
Insert Hole Size Metric [D1]4.4000
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert ShapeD-Diamond/Rhombic 55
Insert Thickness Fraction [S]5/32
Insert Thickness Inch [S]0.1563
Insert Thickness Metric [S]3.9700

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
