Kennametal • CDHB-FST • CDHBS4T0X0FST KD1400
Kennametal • CDHB-FST • CDHBS4T0X0FST KD1400 - Image 2

Kennametal • CDHB-FST • CDHBS4T0X0FST KD1400

SKU: KEN3659964S/C: 3659964
Usually ships in 5 daysExcluding weekends / Subject to availability

$191.18inc
GST

Price Match

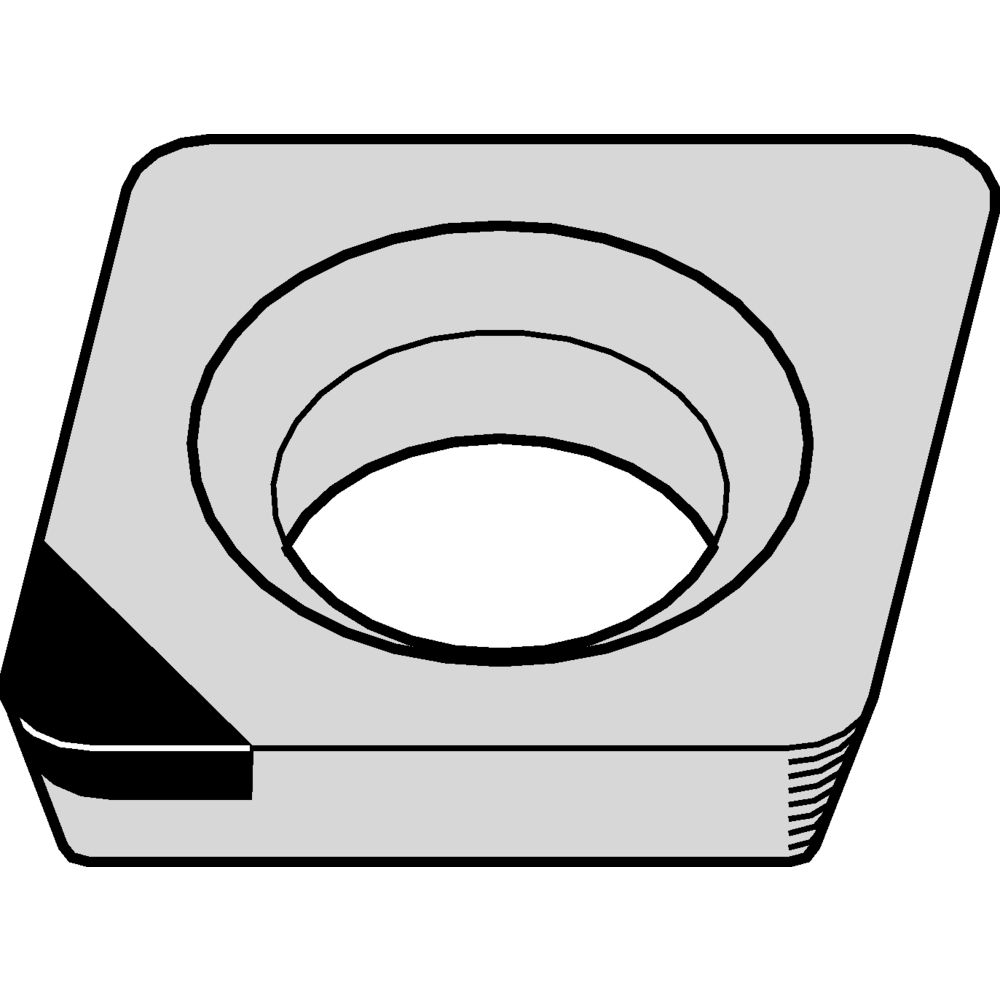

PCD Inserts

This product doesn't have any features.

More Info
View all:

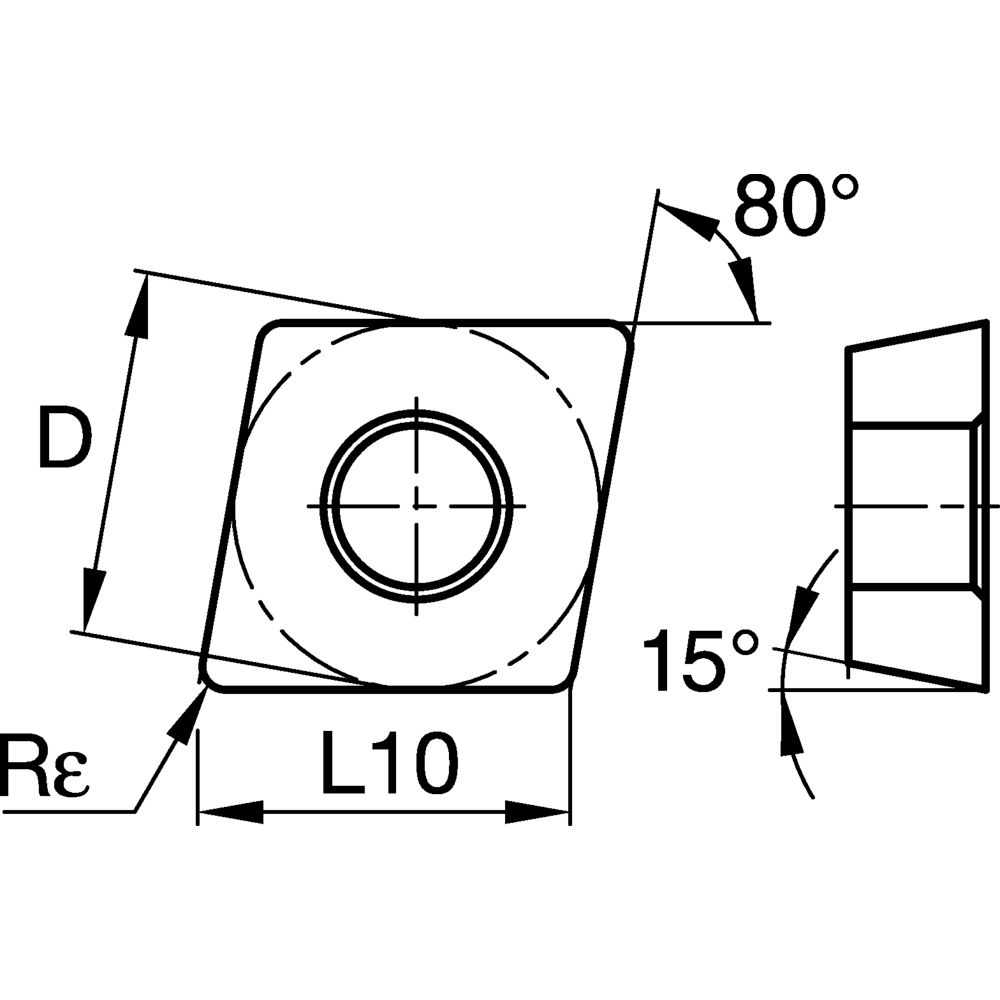

Technical Details
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]15.000
Clearance Angle Minor [ALPHANM]15.000
CoatingUncoated
Corner Radius Frac [REPSILON].002
Corner Radius Inch [REPSILON]0.002000
Corner Radius Metric [REPSILON]0.0510
Cutting Tool MaterialDiamond
Engineering Insert GeometryDHB_FST_F
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.1587
Ins Cut Edge Length Metric [L10]4.0300
Ins Effect Cut Length Inch [Leff]0.0520
Ins Effect Cut Length Metric [Leff]1.3200
Insert Gage Dimension Inch [M]0.0423
Insert Gage Dimension Metric [M]1.0740
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.0840
Insert Hole Size Metric [D1]2.1300
Insert IC Size Fraction [D]5/32
Insert IC Size Inch [D]0.1563
Insert IC Size Metric [D]3.9690
Insert Mounting4-Part Cycl w/70-90 TaperScrew
Insert Num of Cutting Edges1
Insert ShapeC-Diamond/Rhombic 80
Insert Thickness Fraction [S].040
Insert Thickness Inch [S]0.0400
Insert Thickness Metric [S]1.0200
