Kennametal • TPG-MT • TPGN160304S01015MT KB1630
Kennametal • TPG-MT • TPGN160304S01015MT KB1630 - Image 2

Kennametal • TPG-MT • TPGN160304S01015MT KB1630

SKU: KEN3652466S/C: 3652466
Usually ships in 5 daysExcluding weekends / Subject to availability

$317.02inc
GST

Price Match

Kendex™ Positive Inserts

This product doesn't have any features.

More Info
View all:

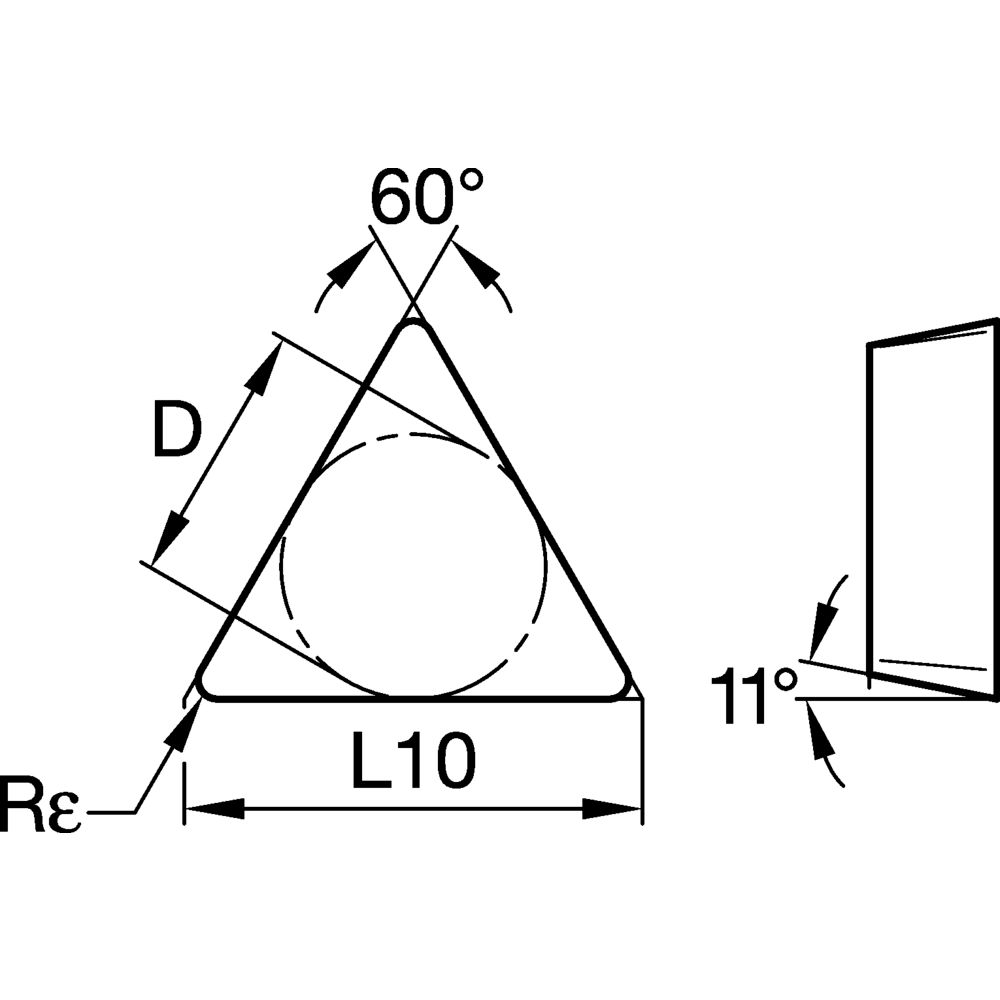

Technical Details
B Gamma Inch [BGAMMA]0.0040
B Gamma Metric [BGAMMA]0.1000
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]11.000
Clearance Angle Minor [ALPHANM]11.000
CoatingUncoated
Corner Radius Frac [REPSILON]1/64
Corner Radius Inch [REPSILON]0.015625
Corner Radius Metric [REPSILON]0.4000
Cutting Tool MaterialBN-High CBN
Engineering Insert GeometryPGN_S01015_MT
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.6496
Ins Cut Edge Length Metric [L10]16.5000
Insert Gage Dimension Inch [M]0.5469
Insert Gage Dimension Metric [M]13.8910
Insert HandN - Neutral
Insert IC Size Fraction [D]3/8
Insert IC Size Inch [D]0.3750
Insert IC Size Metric [D]9.5250
Insert Mounting1-Without Fixing Hole
Insert Num of Cutting Edges3
Insert ShapeT-Triangle 60
Insert Thickness Fraction [S]1/8
Insert Thickness Inch [S]0.1250
Insert Thickness Metric [S]3.1800

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
