Kennametal • VNGX160716T02020 KY3500

Name: Kennametal • VNGX160716T02020 KY3500
SKU: KEN2956334
Availability: InStock

SKU: KEN2956334S/C: 2956334

Usually ships in 5 days

Available in packs of 10. Pricing is for individual items in the pack.

$72.38inc
GSTEACH

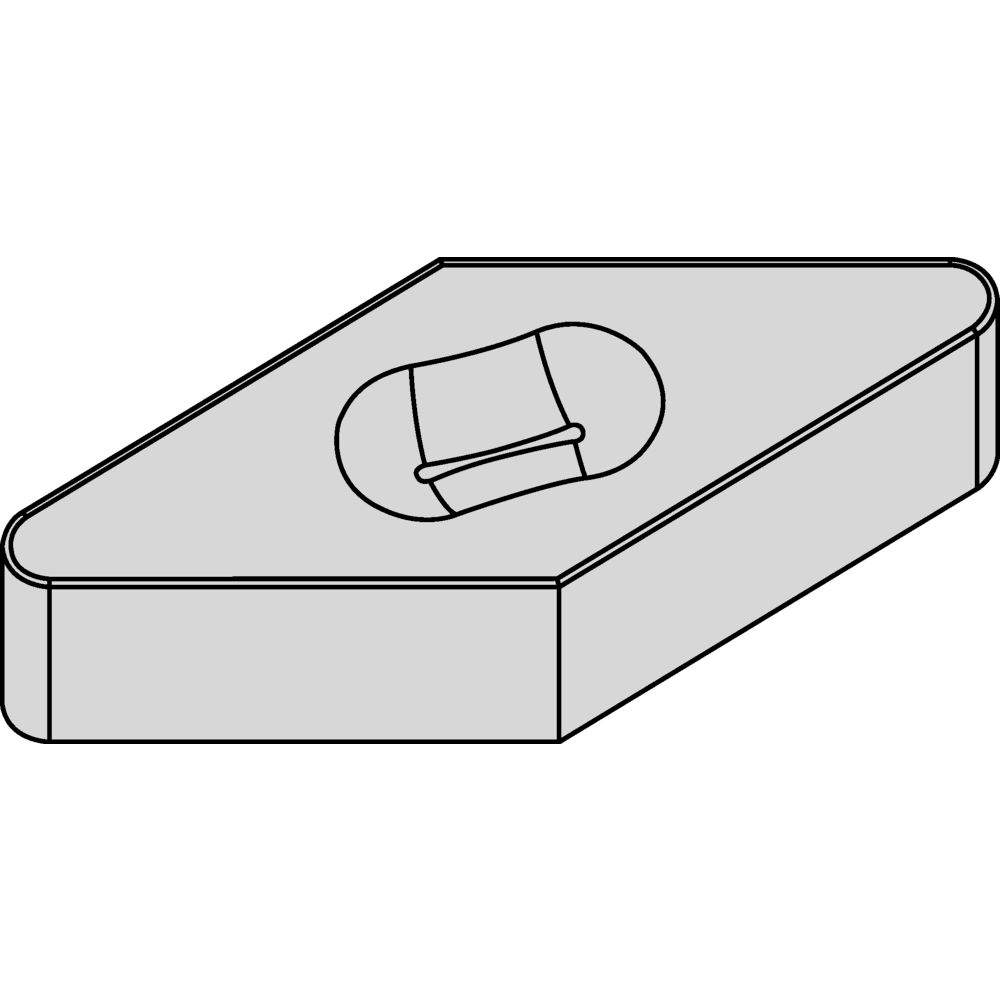

Kendex™ Negative Dimple Inserts

This product doesn't have any features.

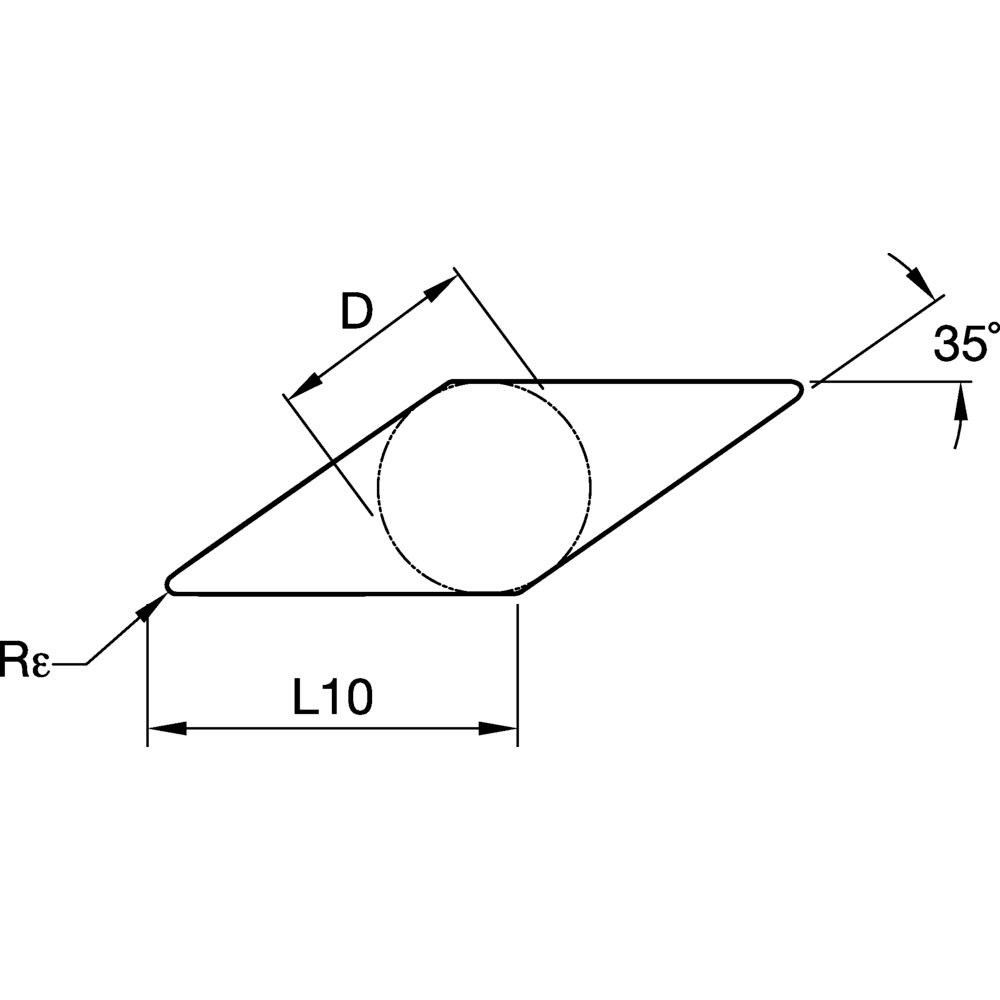

Technical Details
B Gamma Inch [BGAMMA]	0.0080
B Gamma Metric [BGAMMA]	0.2000
Chipbreaker	0-No Chipbreaker
Clearance Angle Major [ALPHAN]	0.000
Clearance Angle Minor [ALPHANM]	0.000
Coating	Uncoated
Corner Radius Frac [REPSILON]	1/16
Corner Radius Inch [REPSILON]	0.062500
Corner Radius Metric [REPSILON]	1.6000
Cutting Tool Material	Ceramic-Si
Engineering Insert Geometry	NGX_T02020_
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.6538
Ins Cut Edge Length Metric [L10]	16.6060
Insert Gage Dimension Inch [M]	0.2907
Insert Gage Dimension Metric [M]	7.3830
Insert Hand	N - Neutral
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	5-With Notch Clamping
Insert Num of Cutting Edges	4
Insert Shape	V-Diamond/Rhombic 35
Insert Thickness Fraction [S]	5/16
Insert Thickness Inch [S]	0.3125
Insert Thickness Metric [S]	7.9380
