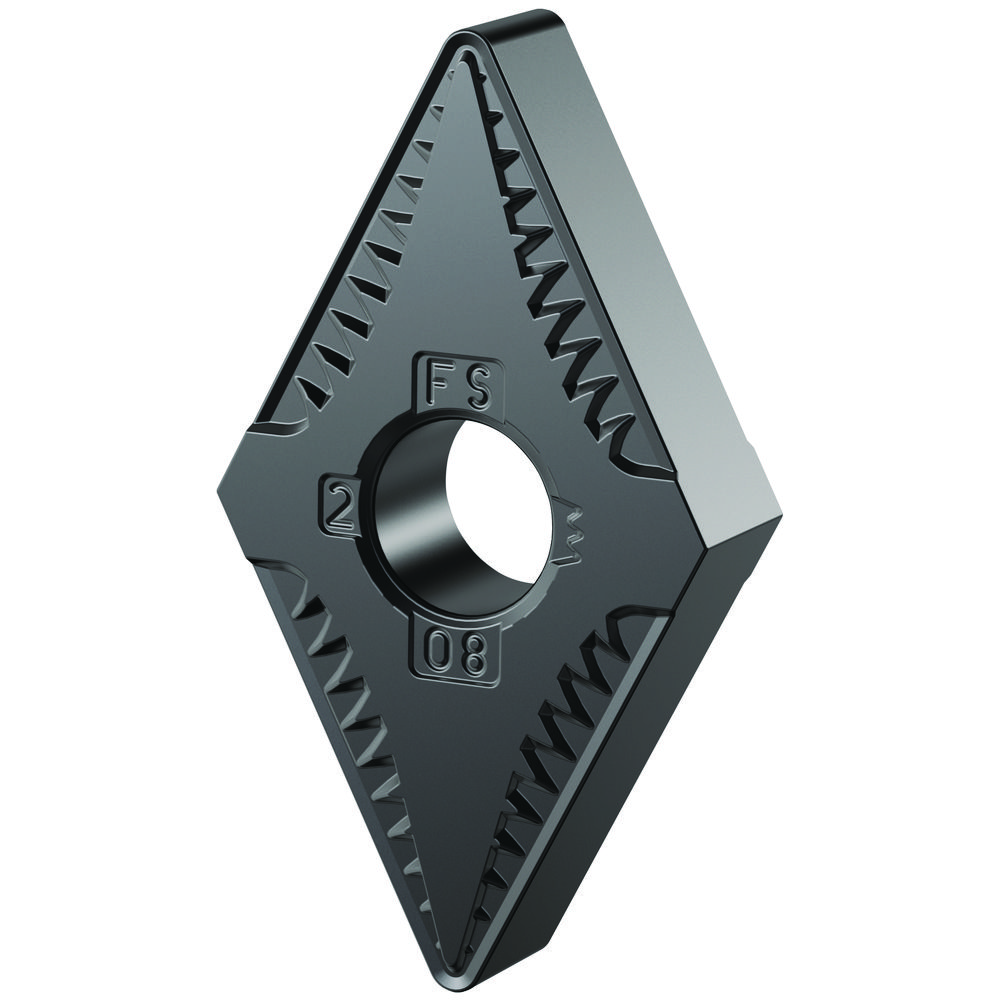

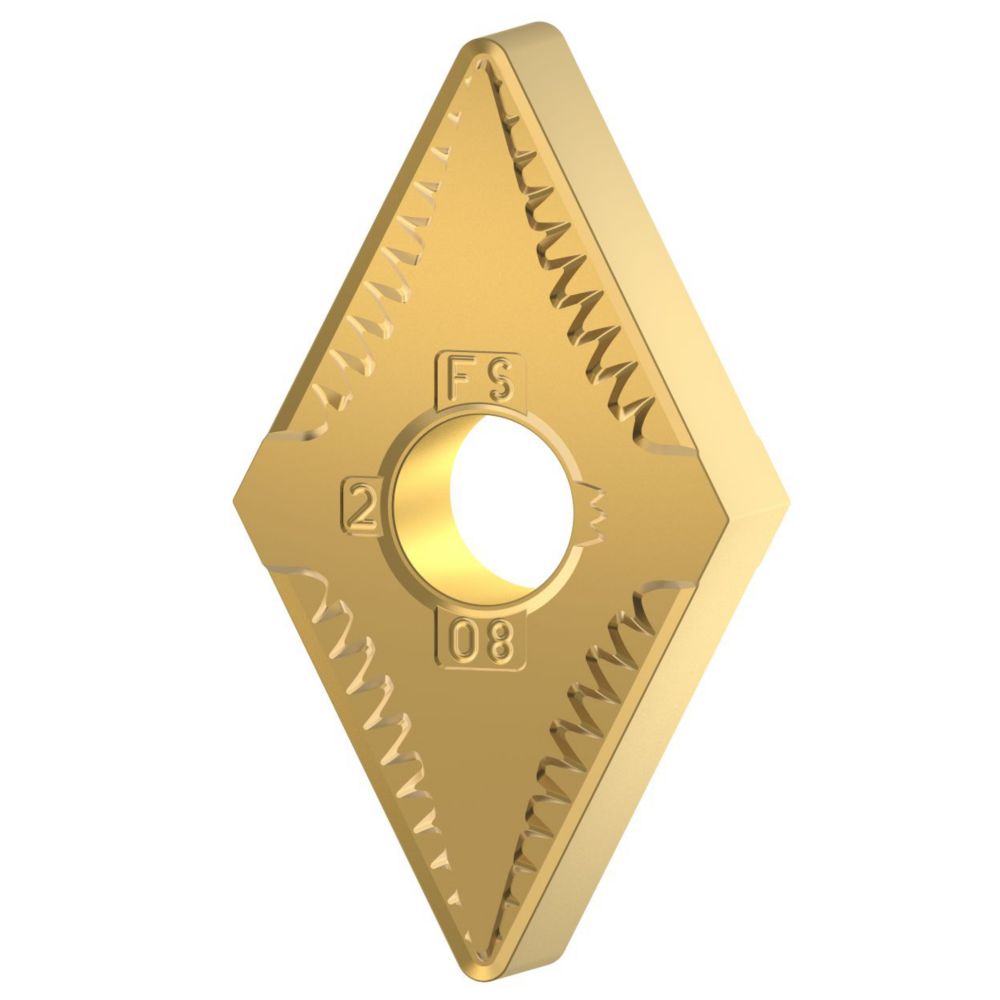

Kennametal • Negative Inserts • DNGG-FS • DNGG110402FS KC5010

Name: Kennametal • Negative Inserts • DNGG-FS • DNGG110402FS KC5010
SKU: KEN2250775
Availability: InStock

SKU: KEN2250775S/C: 2250775

Usually ships in 5 days

$23.23inc
GST

Kenloc™ Inserts

Finishing geometry for when edge line sharpness is critical, particularly in high-temperature alloys and stainless steel applications

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	FS
Clearance Angle Major [ALPHAN]	0.000
Clearance Angle Minor [ALPHANM]	0.000
Coating	TiAlN
Corner Radius Frac [REPSILON]	.008
Corner Radius Inch [REPSILON]	0.008000
Corner Radius Metric [REPSILON]	0.2000
Cutting Tool Material	Carbide
Engineering Insert Geometry	GG_FS
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.4578
Ins Cut Edge Length Metric [L10]	11.6280
Insert Gage Dimension Inch [M]	0.2092
Insert Gage Dimension Metric [M]	5.3150
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.1500
Insert Hole Size Metric [D1]	3.8100
Insert IC Size Fraction [D]	3/8
Insert IC Size Inch [D]	0.3750
Insert IC Size Metric [D]	9.5250
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	4
Insert Shape	D-Diamond/Rhombic 55
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7600

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
