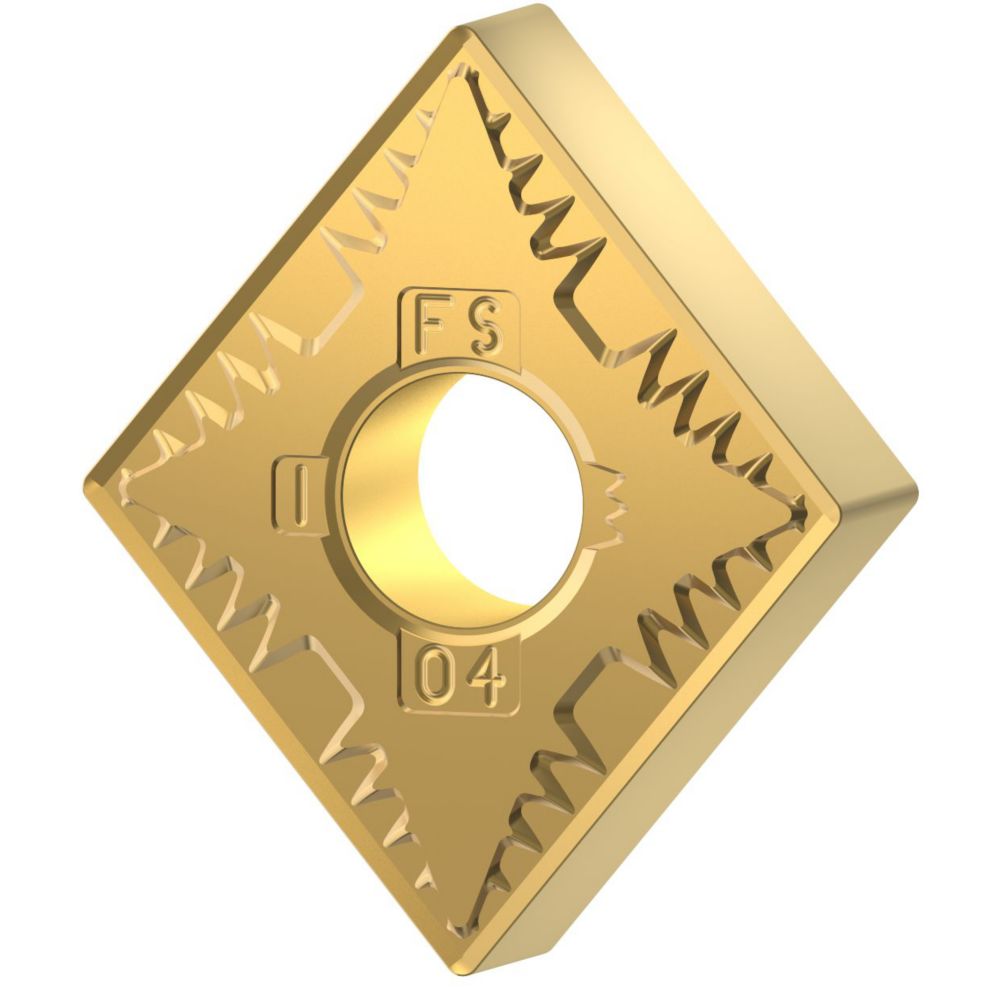

Kennametal • Negative Inserts • CNGG-FS • CNGG120401FS KC5010

Name: Kennametal • Negative Inserts • CNGG-FS • CNGG120401FS KC5010
SKU: KEN2250771
Availability: InStock

SKU: KEN2250771S/C: 2250771

Usually ships in 5 days

$20.61inc
GST

Kenloc™ Inserts

Finishing geometry for when edge line sharpness is critical, particularly in high-temperature alloys and stainless steel applications

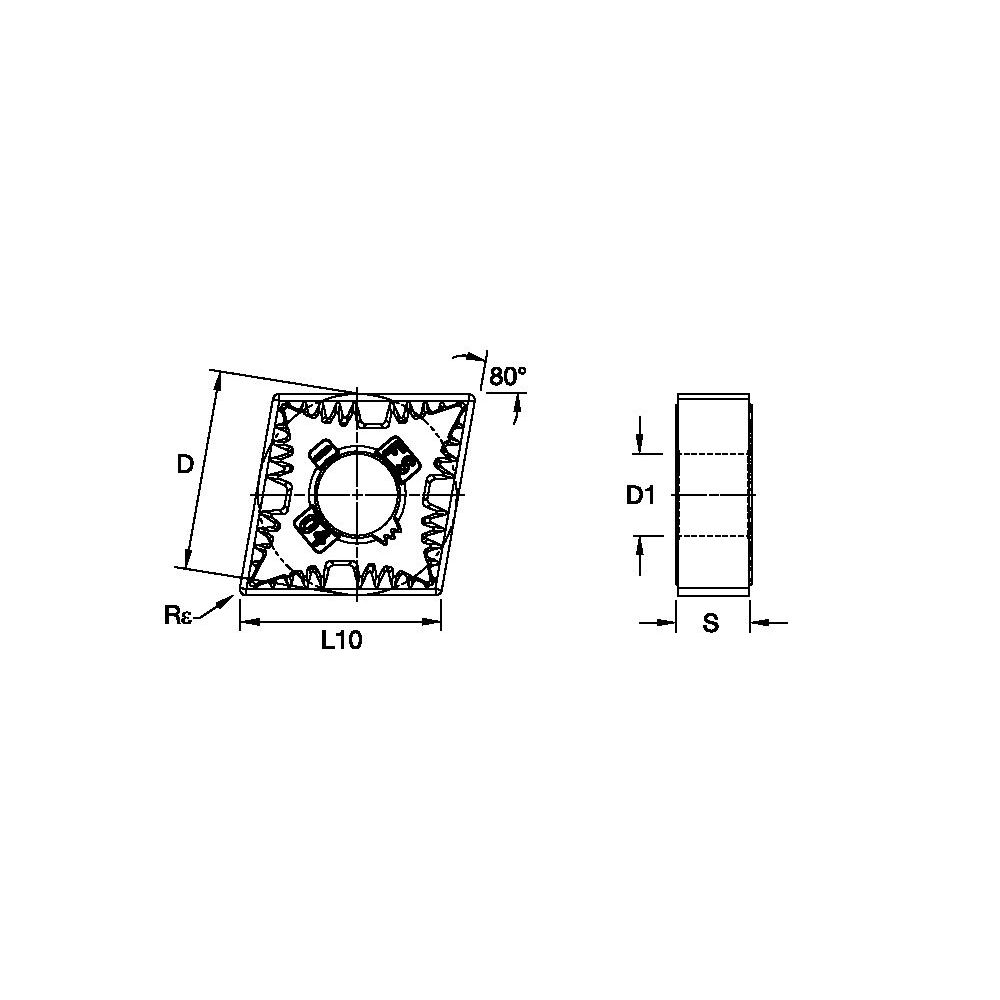

Technical Details
Chipbreaker	2-Chipbreaker On Two Sides
Chipbreaker Mfgr Designation	FS
Clearance Angle Major [ALPHAN]	0.000
Clearance Angle Minor [ALPHANM]	0.000
Coating	TiAlN
Corner Radius Frac [REPSILON]	.004
Corner Radius Inch [REPSILON]	0.004000
Corner Radius Metric [REPSILON]	0.1000
Cutting Tool Material	Carbide
Engineering Insert Geometry	GG_FS
Hand of Tool	N - Neutral
Ins Cut Edge Length Inch [L10]	0.5077
Ins Cut Edge Length Metric [L10]	12.8960
Insert Gage Dimension Inch [M]	0.1367
Insert Gage Dimension Metric [M]	3.4720
Insert Hand	N - Neutral
Insert Hole Size Inch [D1]	0.2030
Insert Hole Size Metric [D1]	5.1560
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	2-Cylindrical Fixing Hole
Insert Num of Cutting Edges	4
Insert Rake Angle [GAMMA]	12.000
Insert Shape	C-Diamond/Rhombic 80
Insert Thickness Fraction [S]	3/16
Insert Thickness Inch [S]	0.1875
Insert Thickness Metric [S]	4.7620

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
