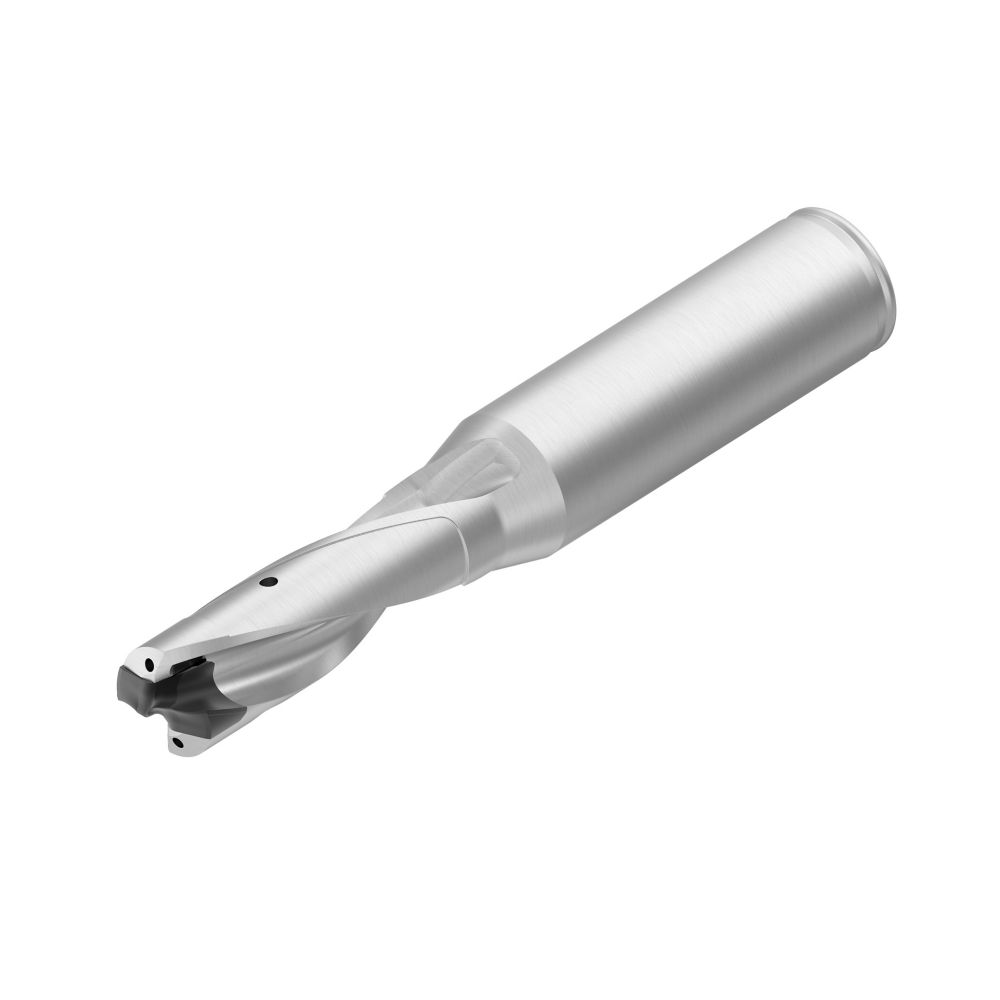

Kennametal • KSEM™ • Drill Body • 3xD • SS Shank • Inch • KSEM0672R3SS075
Kennametal • KSEM™ • Drill Body • 3xD • SS Shank • Inch • KSEM0672R3SS075 - Image 2

Kennametal • KSEM™ • Drill Body • 3xD • SS Shank • Inch • KSEM0672R3SS075

SKU: KEN2238533S/C: 2238533
Usually ships in 5 daysExcluding weekends / Subject to availability

$339.41inc
GST

Price Match

Modular Drilling • Straight Shank (SS)

  • The central locking screw mechanism ensures secure clamping of the insert, resulting in process safety and long tool life for both the drill body and the insert
  • Internal coolant supply directly to the cutting zone, for extended tool life and efficient chip evacuation
More Info
View all:

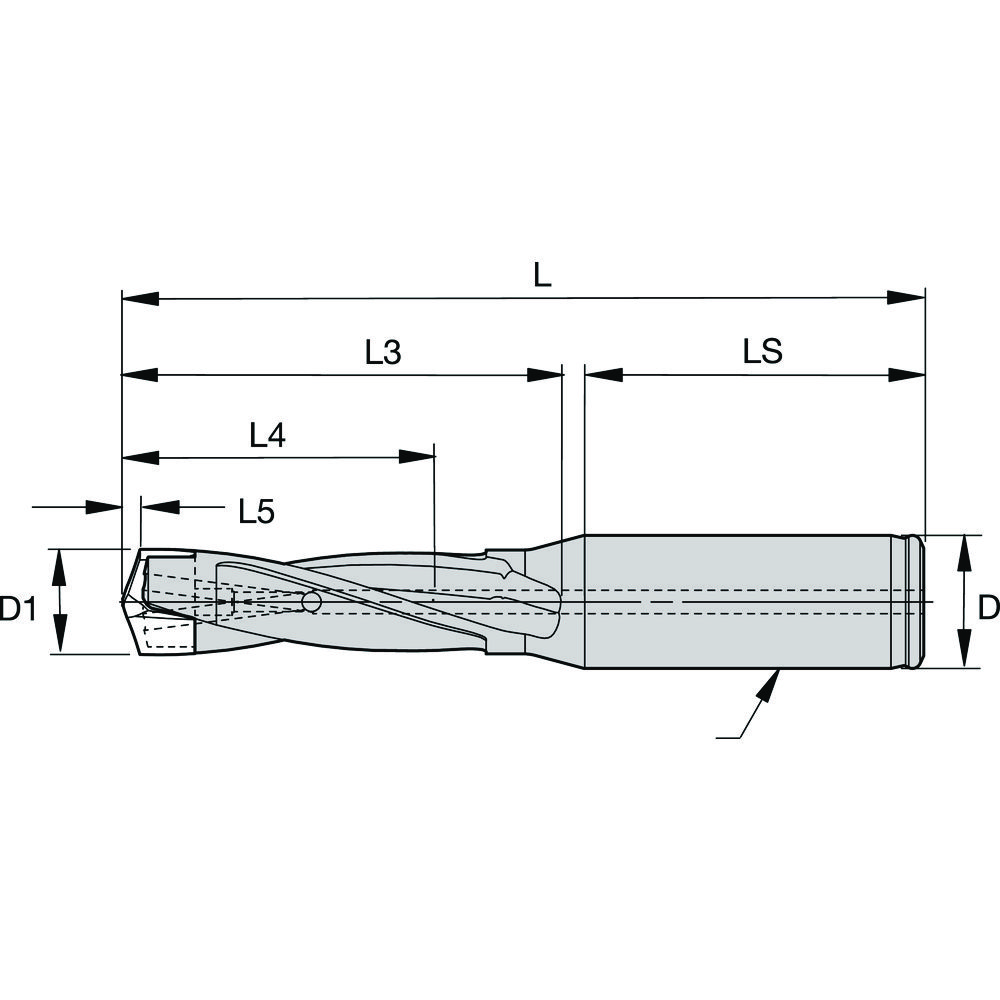

Technical Details
Adapter Style Machine SideStraight-Cylindrical
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Frac [D]3/4
Adapter/Shank/Bore Dia Inch [D]0.7500
Adapter/Shank/Bore Dia Metric [D]19.0500
Body Dia Workpiece Side Inch [D2]0.6611
Body Dia Workpiece Side Metric [D2]16.7900
Body Material GroupSteel
Clamping Length Inch [L9]2.0000
Clamping Length Metric [L9]50.800
Clamping LG Mach Side Inch [L9MS]2.0000
Clamping LG Mach Side Metric [L9MS]50.8000
Coolant Entry StyleConcentric Axial Coolant
Coolant ExitAngular Axial Coolant Exit
Coolant Hole Dia Inch [A]0.1378
Coolant Hole Dia Metric [A]3.5000
Coolant SupplyYes
Drill Dia Max Inch [D1MAX]0.6916
Drill Dia Max Metric [D1MAX]17.5660
Drill Diameter Min Inch [D1]0.6719
Drill Diameter Min Metric [D1]17.0660
Drill Flute DesignHelical Flute
Drill Point Length Inch [L5]0.1066
Drill Point Length Metric [L5]2.7090
Drill Tol Range Calc (inch)-0.001000 to 0.000000
Drill Tol Range Calc (mm)-0.027000 to 0.000000
FamilyKSEM
Flute Length Inch [L3]2.7169
Flute Length Metric [L3]69.0090
Functional Length Inch [LF]4.4291
Functional Length Metric [LF]112.5000
Gage Ins 1 First Dia OutsideKSEM0672
Hand of ToolR - Right
Ins Atch LG Hldr Inch [LATTH]4.4291
Ins Atch LG Hldr Metric [LATTH]112.5000
Insert ShapeKSEM Drill
Insert/Blade Seat Size [SSC]1
Length/Diameter Ratio [L4/D1]3
Max Drill Depth Inch [L4]2.0156
Max Drill Depth Metric [L4]51.1960
Num of Insert Cutting Dia 11
Number of Flutes2
Overall Length Inch [L]4.8750
Overall Length Metric [L]123.8250
Protruding Length Inch [LPR]4.8750
Protruding Length Metric [LPR]123.8250
Shank Length Inch [LS]2.0000
Shank Length Metric [LS]50.8000
Tool Assembly Length Inch [LTA]4.4291
Tool Assembly Length Metric [LTA]112.5000
