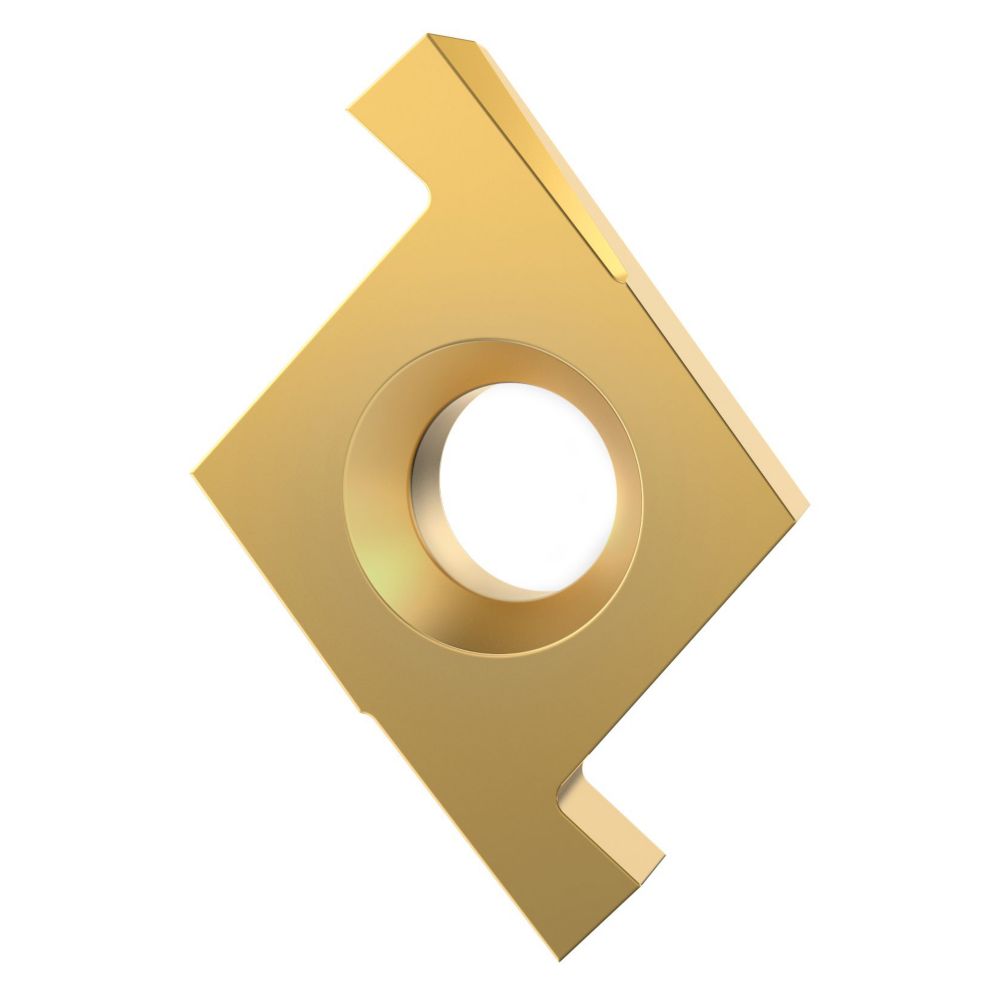

Kennametal • CPG – R / L • CPG190150R KC5010

Name: Kennametal • CPG - R / L • CPG190150R KC5010
SKU: KEN1937609
Price: 160.69 AUD
Availability: InStock

SKU: KEN1937609S/C: 1937609

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$160.69inc
GSTEACH

Screw-On Inserts

This product doesn't have any features.

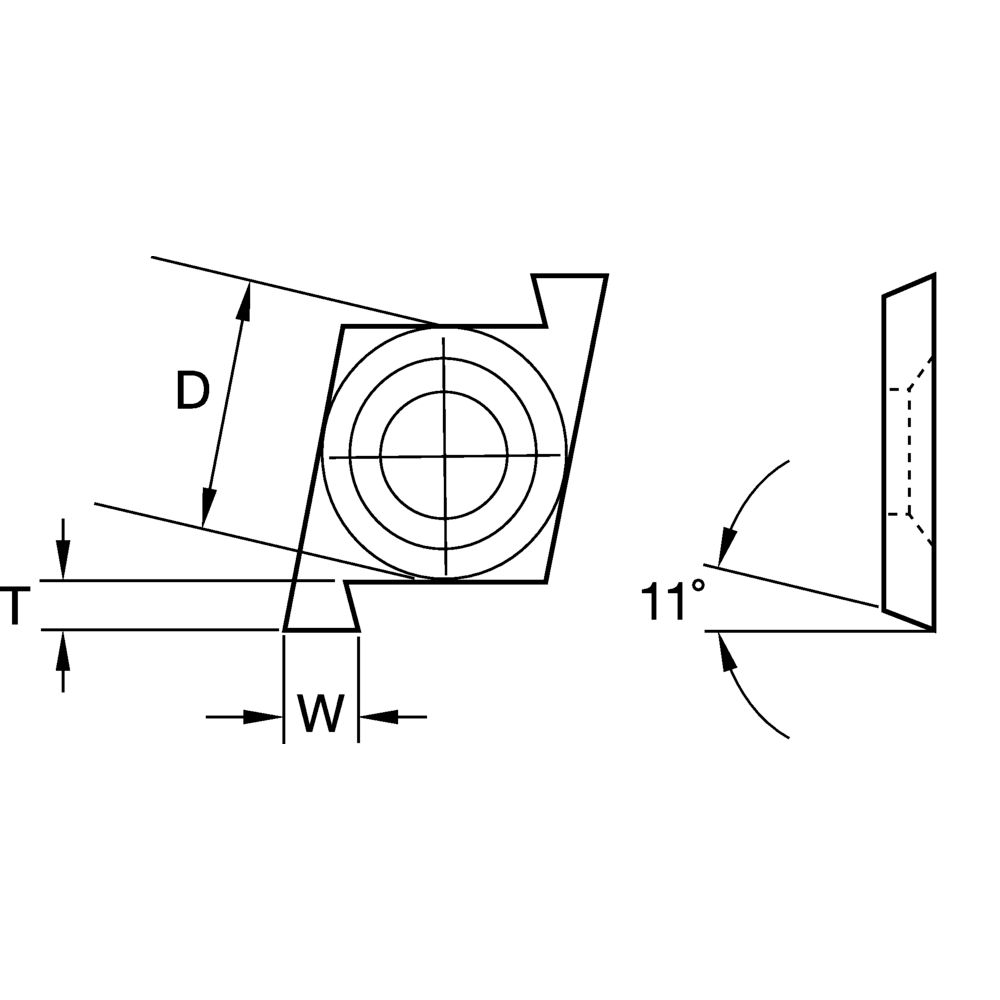

Technical Details
Clearance Ang Main Cut Edge [CM]	11.000
Coating	TiAlN
Cutting Depth Inch [T]	0.0650
Cutting Depth Metric [T]	1.6510
Cutting Tool Material	Carbide
Cutting Width Inch [W]	0.0600
Cutting Width Metric [W]	1.5240
Insert Hand	R - Right
Insert Hole Size Inch [D1]	0.1100
Insert Hole Size Metric [D1]	2.7940
Insert IC Size Fraction [D]	1/4
Insert IC Size Inch [D]	0.2500
Insert IC Size Metric [D]	6.3500
Insert Mounting	4-Part Cycl w/70-90 TaperScrew
Insert Num of Cutting Edges	2
Insert Shape	Grooving/Cutoff Misc
Insert Thickness Inch [S]	0.0750
Insert Thickness Metric [S]	1.9050
Profile Style	01 -Grv/Thd Rectangle
Relief Clearance Angle LH [CL]	2.000
Relief Clearance Angle RH [CR]	2.000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
