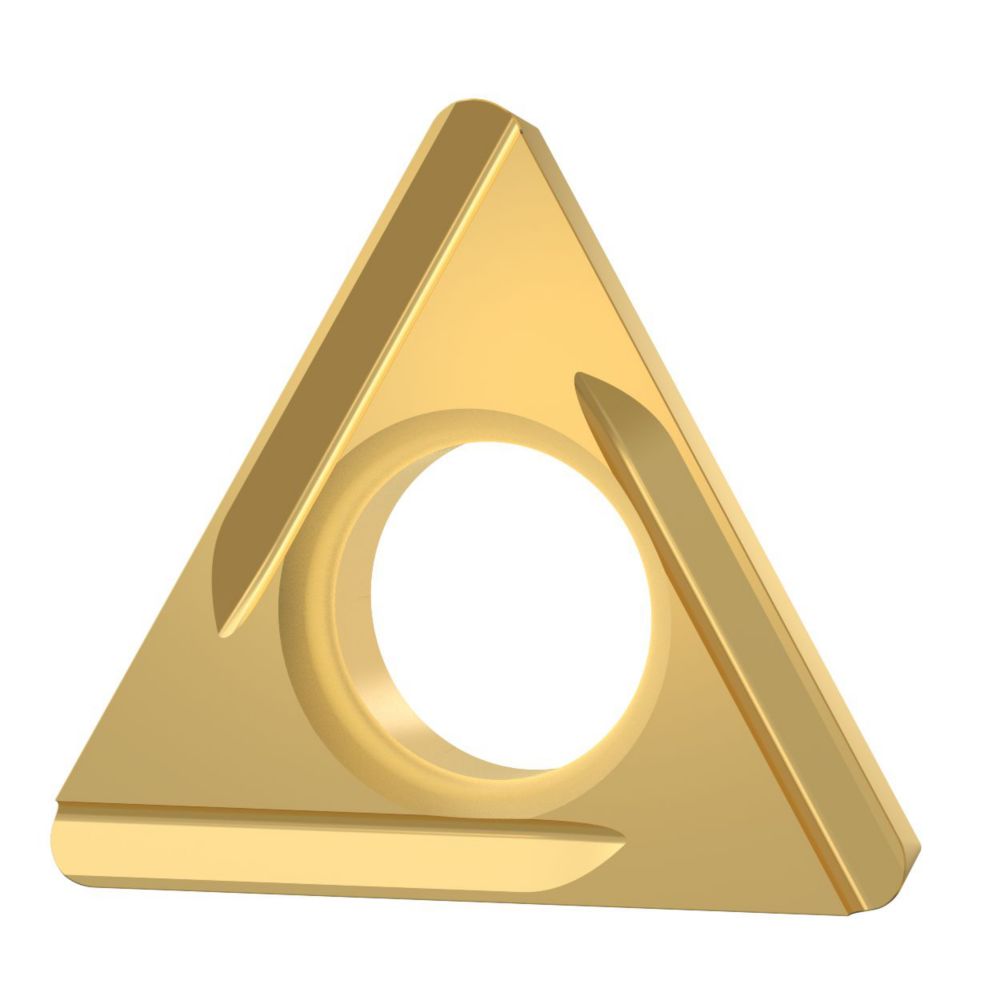

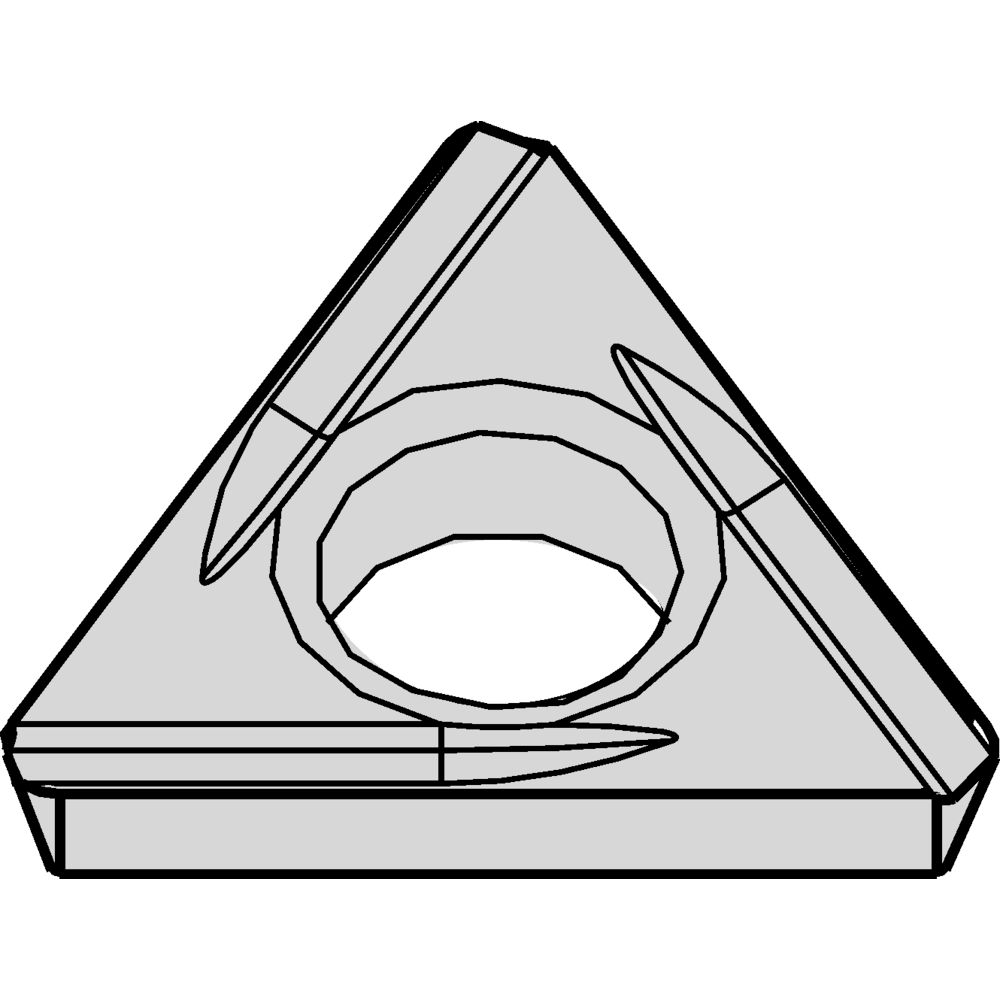

Kennametal • TDHH07T1202L KC5010

Name: Kennametal • TDHH07T1202L KC5010
SKU: KEN1937544
Availability: InStock

SKU: KEN1937544S/C: 1937544

Usually ships in 5 days

Available in packs of 10. Pricing is for individual items in the pack.

$21.10inc
GSTEACH

Screw-On Inserts

This product doesn't have any features.

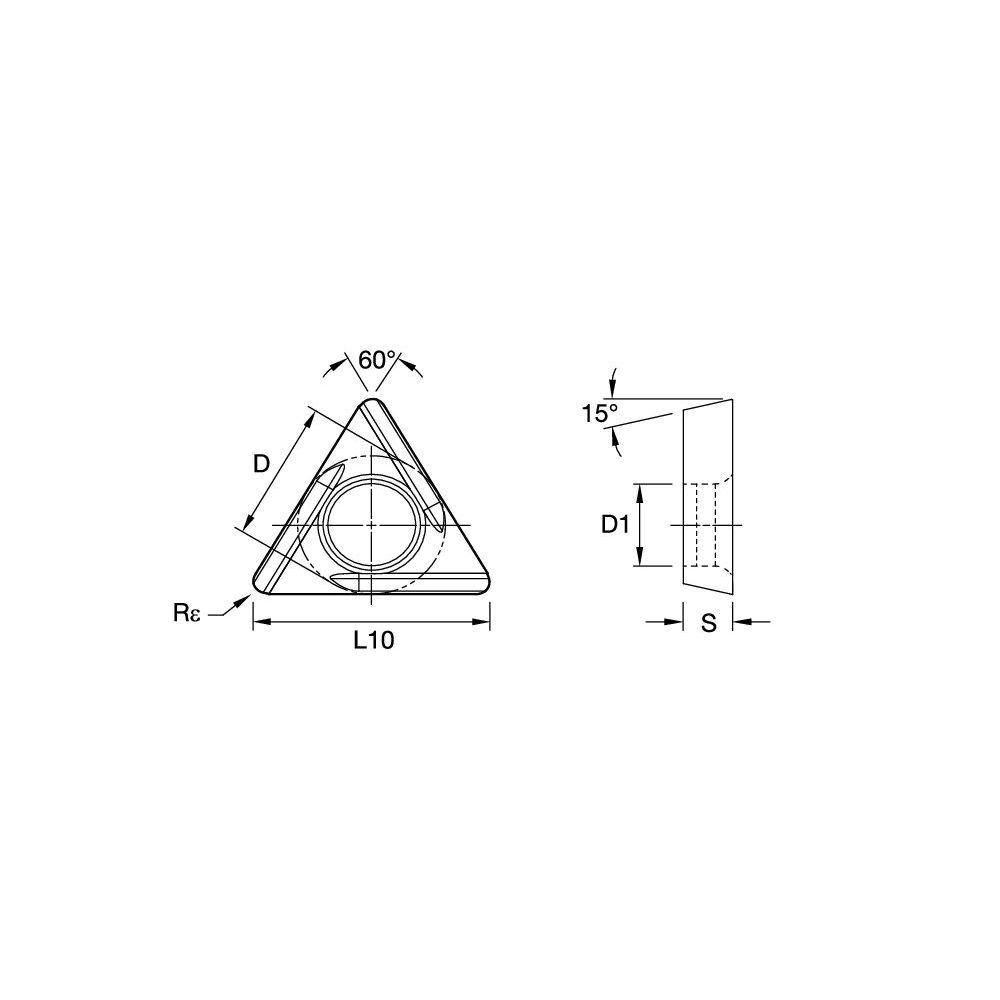

Technical Details
Chipbreaker	1-Chipbreaker On One Side
Clearance Angle Major [ALPHAN]	15.000
Clearance Angle Minor [ALPHANM]	15.000
Coating	TiAlN
Corner Radius Frac [REPSILON]	.007
Corner Radius Inch [REPSILON]	0.007000
Corner Radius Metric [REPSILON]	0.1770
Cutting Tool Material	Carbide
Engineering Insert Geometry	HH
Hand of Tool	L - Left
Ins Cut Edge Length Inch [L10]	0.2770
Ins Cut Edge Length Metric [L10]	7.0360
Insert Gage Dimension Inch [M]	0.2293
Insert Gage Dimension Metric [M]	5.8230
Insert Hand	L - Left
Insert Hole Size Inch [D1]	0.0938
Insert Hole Size Metric [D1]	2.3870
Insert IC Size Fraction [D]	.160
Insert IC Size Inch [D]	0.1575
Insert IC Size Metric [D]	4.0640
Insert Mounting	4-Part Cycl w/70-90 TaperScrew
Insert Num of Cutting Edges	3
Insert Shape	T-Triangle 60
Insert Thickness Fraction [S]	3/64
Insert Thickness Inch [S]	0.0469
Insert Thickness Metric [S]	1.1910

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
