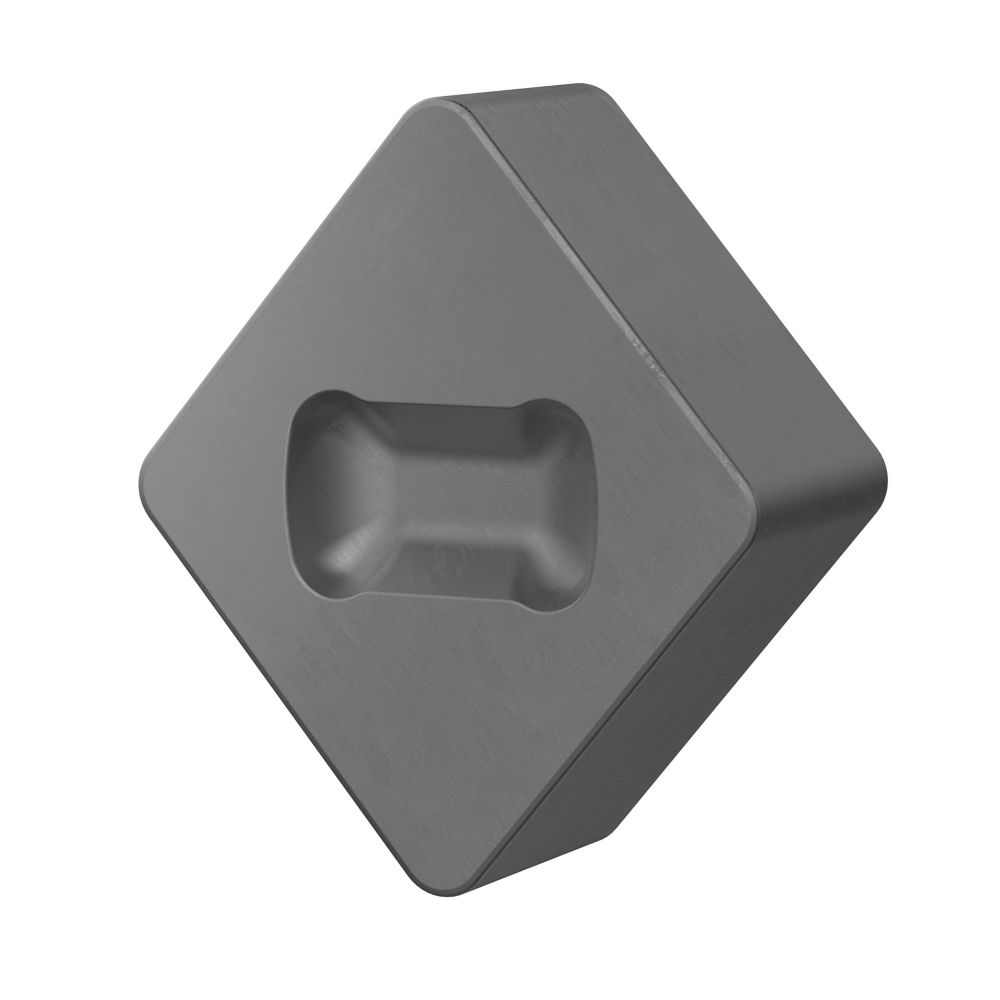

Kennametal • Negative Inserts • CNMX • CNMX120712T02020 KY3500

Name: Kennametal • Negative Inserts • CNMX • CNMX120712T02020 KY3500
SKU: KEN1866310
Availability: InStock

SKU: KEN1866310S/C: 1866310

Usually ships in 5 days

Available in packs of 5. Pricing is for individual items in the pack.

$36.95inc
GSTEACH

Kendex™ Inserts

This product doesn't have any features.

Technical Details
B Gamma Inch [BGAMMA]	0.0080
B Gamma Metric [BGAMMA]	0.2000
Chipbreaker	0-No Chipbreaker
Clearance Angle Major [ALPHAN]	0.000
Clearance Angle Minor [ALPHANM]	0.000
Coating	Uncoated
Corner Radius Frac [REPSILON]	3/64
Corner Radius Inch [REPSILON]	0.046875
Corner Radius Metric [REPSILON]	1.2000
Cutting Tool Material	Ceramic-Si
Engineering Insert Geometry	NMX_T02020_
Hand of Tool	N - Neutral

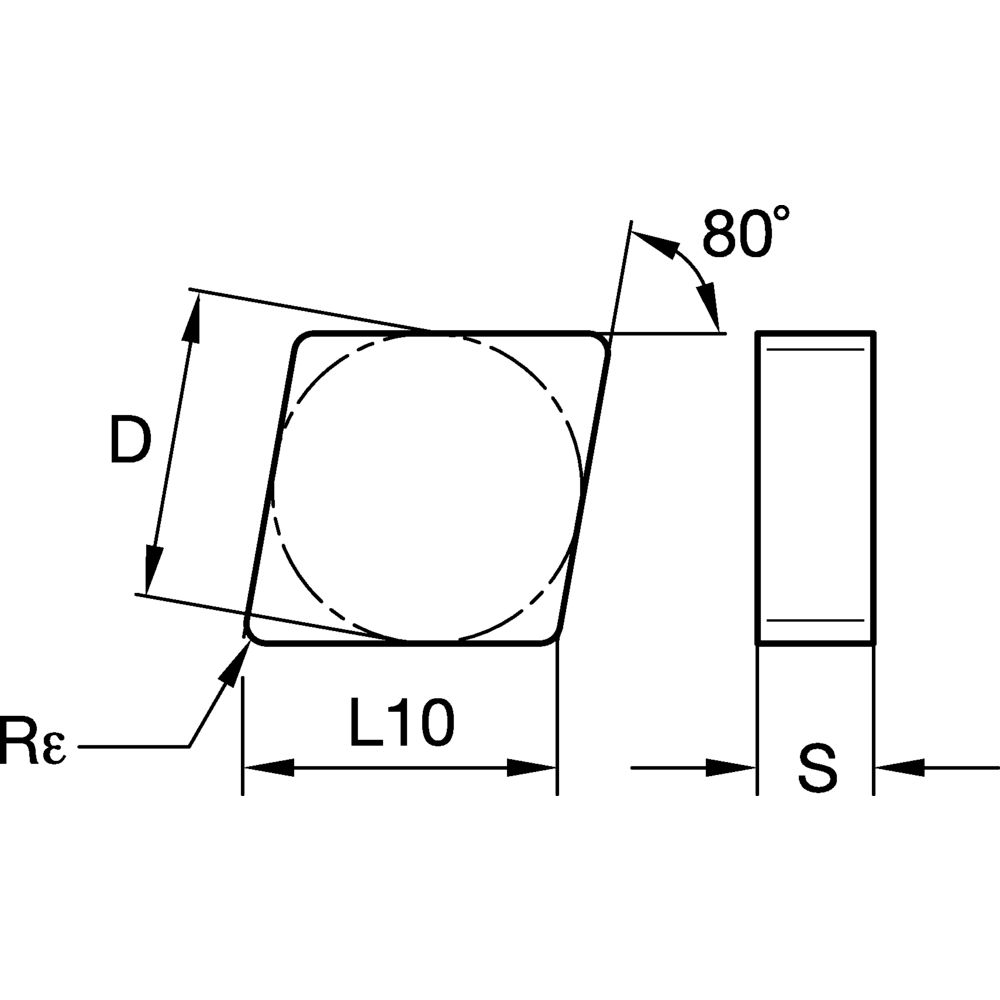

Ins Cut Edge Length Inch [L10]	0.5077
Ins Cut Edge Length Metric [L10]	12.8960
Insert Gage Dimension Inch [M]	0.1129
Insert Gage Dimension Metric [M]	2.8670
Insert Hand	N - Neutral
Insert IC Size Fraction [D]	1/2
Insert IC Size Inch [D]	0.5000
Insert IC Size Metric [D]	12.7000
Insert Mounting	5-With Notch Clamping
Insert Num of Cutting Edges	4
Insert Shape	C-Diamond/Rhombic 80
Insert Thickness Fraction [S]	5/16
Insert Thickness Inch [S]	0.3125
Insert Thickness Metric [S]	7.9380

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
