Kennametal • CNGX-FW • CNGX120708T01020FW KY3500
Kennametal • CNGX-FW • CNGX120708T01020FW KY3500 - Image 2

Kennametal • CNGX-FW • CNGX120708T01020FW KY3500

SKU: KEN1851268S/C: 1851268
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 10. Pricing is for individual items in the pack.

$48.86inc
GSTEACH

Price Match

Kendex™ Negative Inserts

  • Finishing wiper when surface finish is of highest importance.
More Info
View all:
Technical Details
B Gamma Inch [BGAMMA]0.0040
B Gamma Metric [BGAMMA]0.1000
Chipbreaker0-No Chipbreaker
Chipbreaker Mfgr DesignationFW
Clearance Angle Major [ALPHAN]0.000
Clearance Angle Minor [ALPHANM]0.000
CoatingUncoated
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialCeramic-Si
Engineering Insert GeometryNGX_T01020_FW_
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.5077
Ins Cut Edge Length Metric [L10]12.8960
Insert Gage Dimension Inch [M]0.1176
Insert Gage Dimension Metric [M]2.9860
Insert HandN - Neutral
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting5-With Notch Clamping
Insert Num of Cutting Edges4

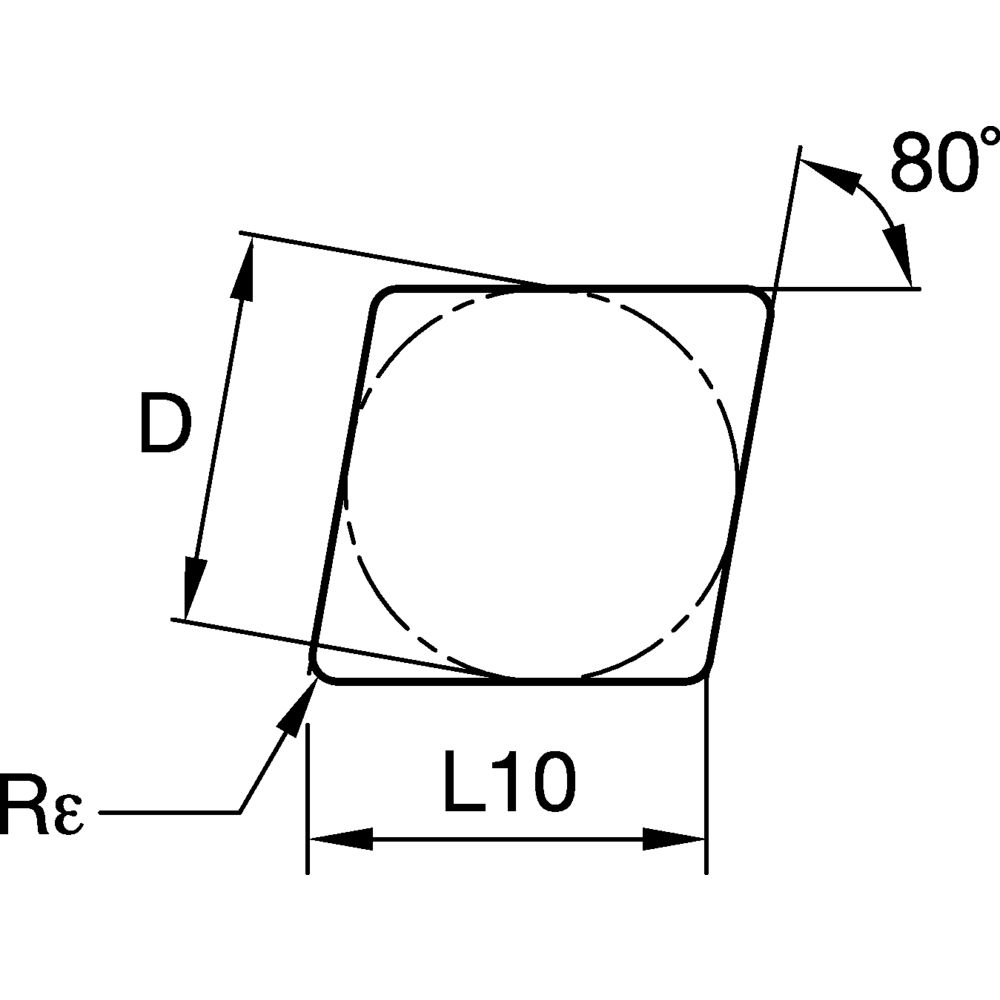

Insert ShapeC-Diamond/Rhombic 80
Insert Thickness Fraction [S]5/16
Insert Thickness Inch [S]0.3125
Insert Thickness Metric [S]7.9400
Lead Angle ANSI [KRA]5.000
Lead Angle ISO [KRI]75.000
Wiper Radius Inch [RW]0.200000
Wiper Radius Metric [RW]5.0800

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
