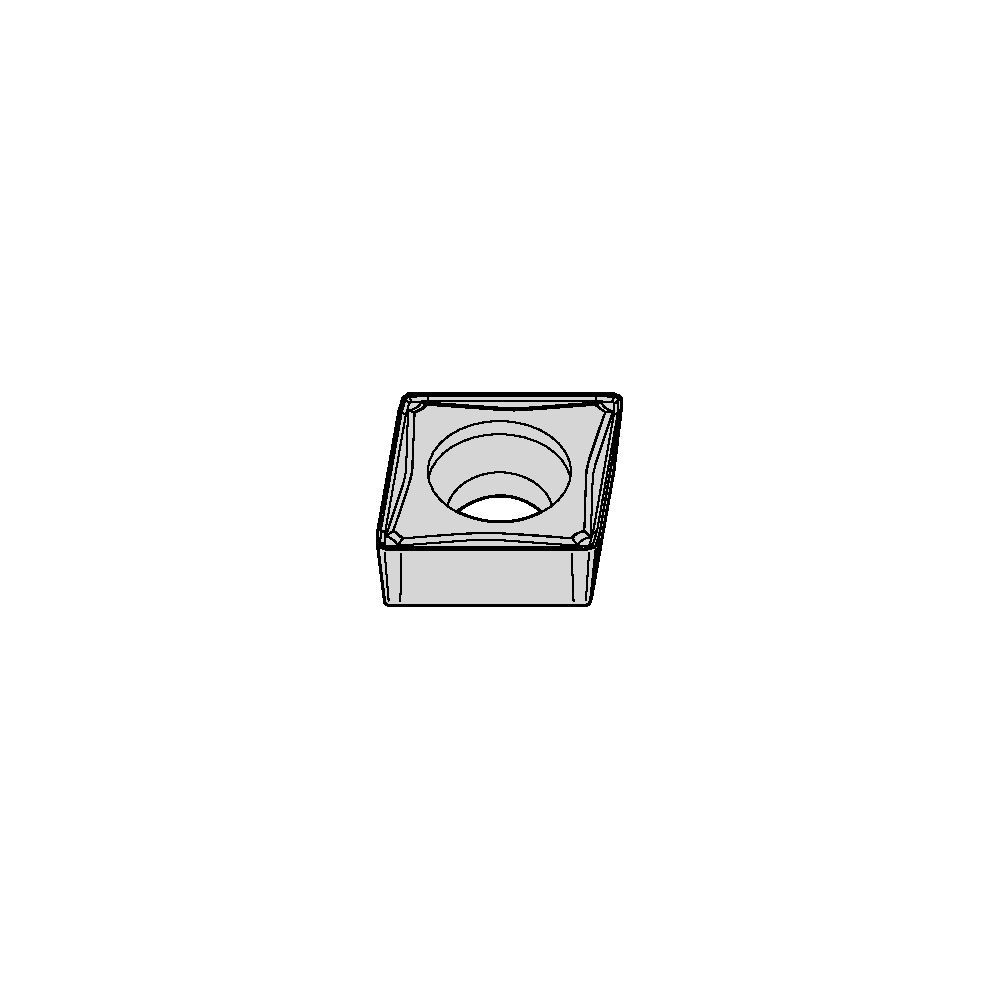

Kennametal • CCMT-FW • CCMT060202FW KC5010
Kennametal • CCMT-FW • CCMT060202FW KC5010 - Image 2
Kennametal • CCMT-FW • CCMT060202FW KC5010 - Image 3

Kennametal • CCMT-FW • CCMT060202FW KC5010

SKU: KEN1802992S/C: 1802992
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$10.60inc
GSTEACH

Price Match

Screw-On Inserts

  • Finishing wiper when surface finish is of highest importance.
  • Beyond™ Drive™ grades included.
More Info
View all:
Technical Details
Chipbreaker1-Chipbreaker On One Side
Chipbreaker Mfgr DesignationFW
Clearance Angle Major [ALPHAN]7.000
Clearance Angle Minor [ALPHANM]7.000
CoatingTiAlN
Corner Radius Frac [REPSILON].008
Corner Radius Inch [REPSILON]0.008000
Corner Radius Metric [REPSILON]0.2000
Cutting Tool MaterialCarbide
Engineering Insert GeometryMT_FW
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.2539
Ins Cut Edge Length Metric [L10]6.4480
Insert Gage Dimension Inch [M]0.0631
Insert Gage Dimension Metric [M]1.6020
Insert HandN - Neutral
Insert Hole Size Inch [D1]0.1102
Insert Hole Size Metric [D1]2.8000
Insert IC Size Fraction [D]1/4
Insert IC Size Inch [D]0.2500
Insert IC Size Metric [D]6.3500
Insert Mounting3-Part Cycl w/40-60 TaperScrew
Insert Num of Cutting Edges2
Insert ShapeC-Diamond/Rhombic 80
Insert Thickness Fraction [S]3/32
Insert Thickness Inch [S]0.0938
Insert Thickness Metric [S]2.3800
Lead Angle ANSI [KRA]5.000
Lead Angle ISO [KRI]75.000
Wiper Radius Inch [RW]0.091000
Wiper Radius Metric [RW]2.3000

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
