Kennametal • KSEM™ • Drill Body • 1 x D • SSF Shank • Inch • KSEM0625R1SSF075

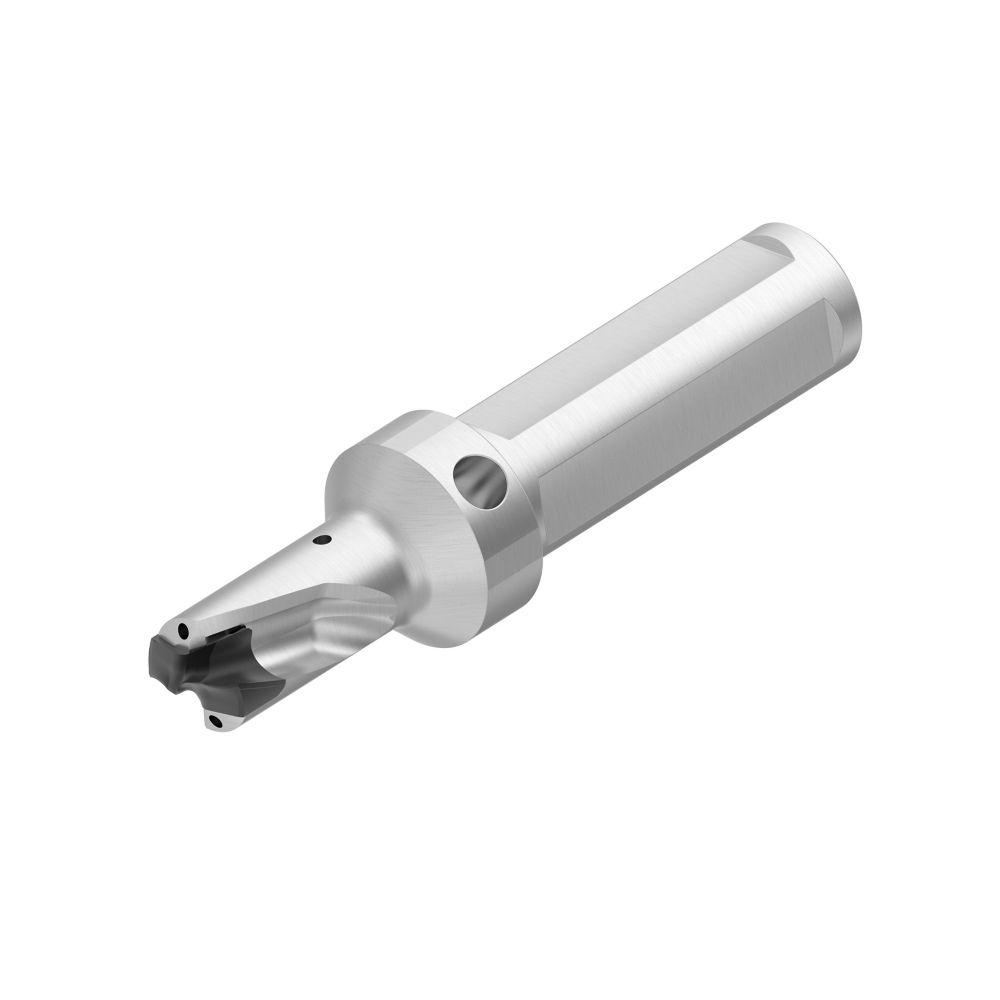

Kennametal • KSEM™ • Drill Body • 1 x D • SSF Shank • Inch • KSEM0625R1SSF075 - Image 2

Kennametal • KSEM™ • Drill Body • 1 x D • SSF Shank • Inch • KSEM0625R1SSF075

SKU: KEN1792224S/C: 1792224
Usually ships in 5 daysExcluding weekends / Subject to availability

$238.98inc
GST

Price Match

Modular Drilling • Flanged Shank with Flat (SSF)

  • The central locking screw mechanism ensures secure clamping of the insert, resulting in process safety and long tool life for both the drill body and the insert.
  • Internal coolant supply directly to the cutting zone, for extended tool life and efficient chip evacuation.
More Info
View all:

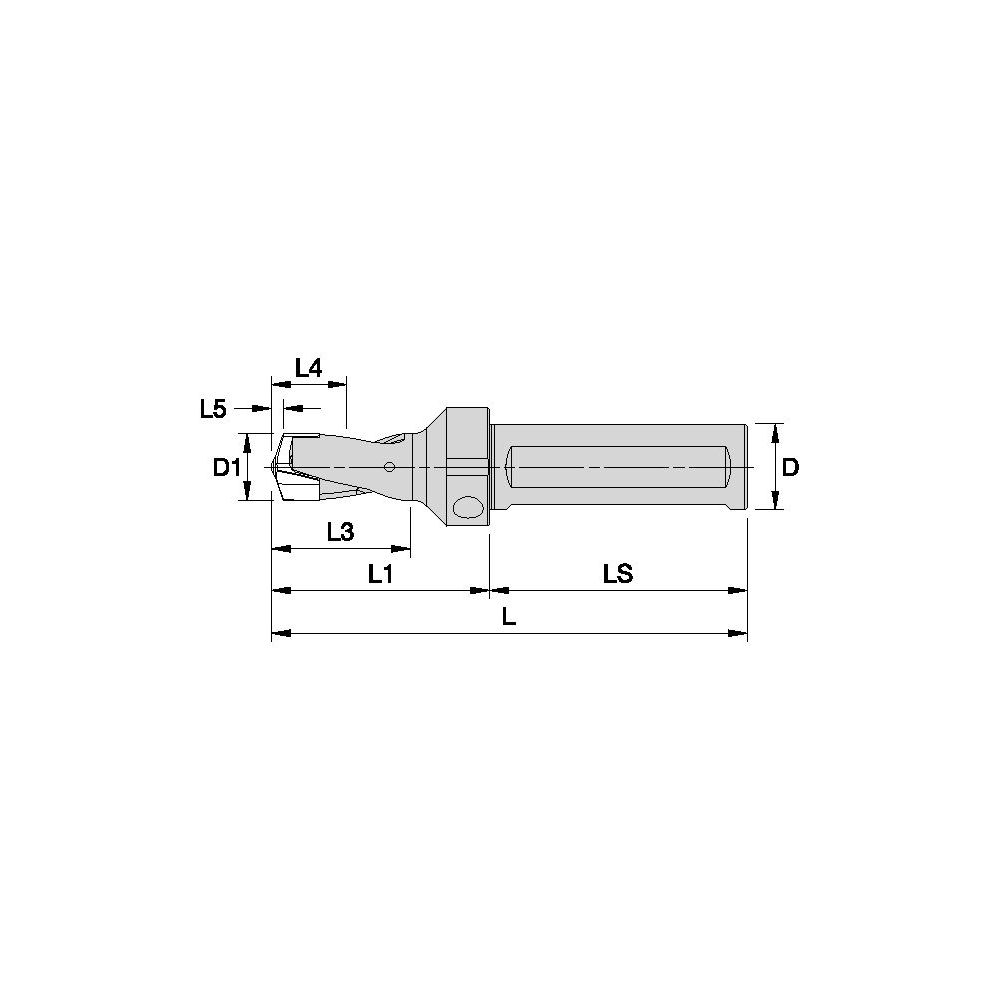

Technical Details
Adapter Style Machine SideCylindrical Shank 2 Flats
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Frac [D]3/4
Adapter/Shank/Bore Dia Inch [D]0.7500
Adapter/Shank/Bore Dia Metric [D]19.0500
Body Dia Workpiece Side Inch [D2]0.8716
Body Dia Workpiece Side Metric [D2]15.4800
Body Material GroupSteel
Clamping Length Inch [L9]2.0000
Clamping Length Metric [L9]50.800
Clamping LG Mach Side Inch [L9MS]2.0000
Clamping LG Mach Side Metric [L9MS]50.8000
Coolant Entry StyleAxial & Radial Coolant
Coolant ExitAngular Axial Coolant Exit
Coolant Size Radial [CF]1/8-27 NPT
Coolant SupplyYes
Coolant Supply Size [CS]1/8-27 NPT
Drill Dia Max Inch [D1MAX]0.7126
Drill Dia Max Metric [D1MAX]18.1000
Drill Diameter Min Frac [D1]5/8
Drill Diameter Min Inch [D1]0.6250
Drill Diameter Min Metric [D1]15.8750
Drill Flute DesignHelical Flute
Drill Point Length Inch [L5]0.0992
Drill Point Length Metric [L5]2.5200
Drill Tool DesignS-Steel Body
FamilyKSEM
Flute Length Inch [L3]1.2810
Flute Length Metric [L3]32.5370
Functional Length Inch [LF]1.7193
Functional Length Metric [LF]43.6700
Gage Ins 1 First Dia OutsideKSEM0625
Gage Length Inch [L1]2.1875
Gage Length Metric [L1]55.5630
Hand of ToolR - Right
Ins Atch LG Hldr Inch [LATTH]1.7193
Ins Atch LG Hldr Metric [LATTH]43.6700
Insert ShapeKSEM Drill
Insert/Blade Seat Size [SSC]1
Length/Diameter Ratio [L4/D1]1
Max Drill Depth Inch [L4]0.7100
Max Drill Depth Metric [L4]18.0340
Maximum Body Diameter Inch [D5]1.1250
Maximum Body Diameter Metric [D5]28.5750
Num of Insert Cutting Dia 11
Number of Flutes2
Overall Length Inch [L]4.1875
Overall Length Metric [L]106.3630
Shank Length Inch [LS]2.0000
Shank Length Metric [LS]50.8000
Tool Assembly Length Inch [LTA]2.0883
Tool Assembly Length Metric [LTA]53.0430

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
