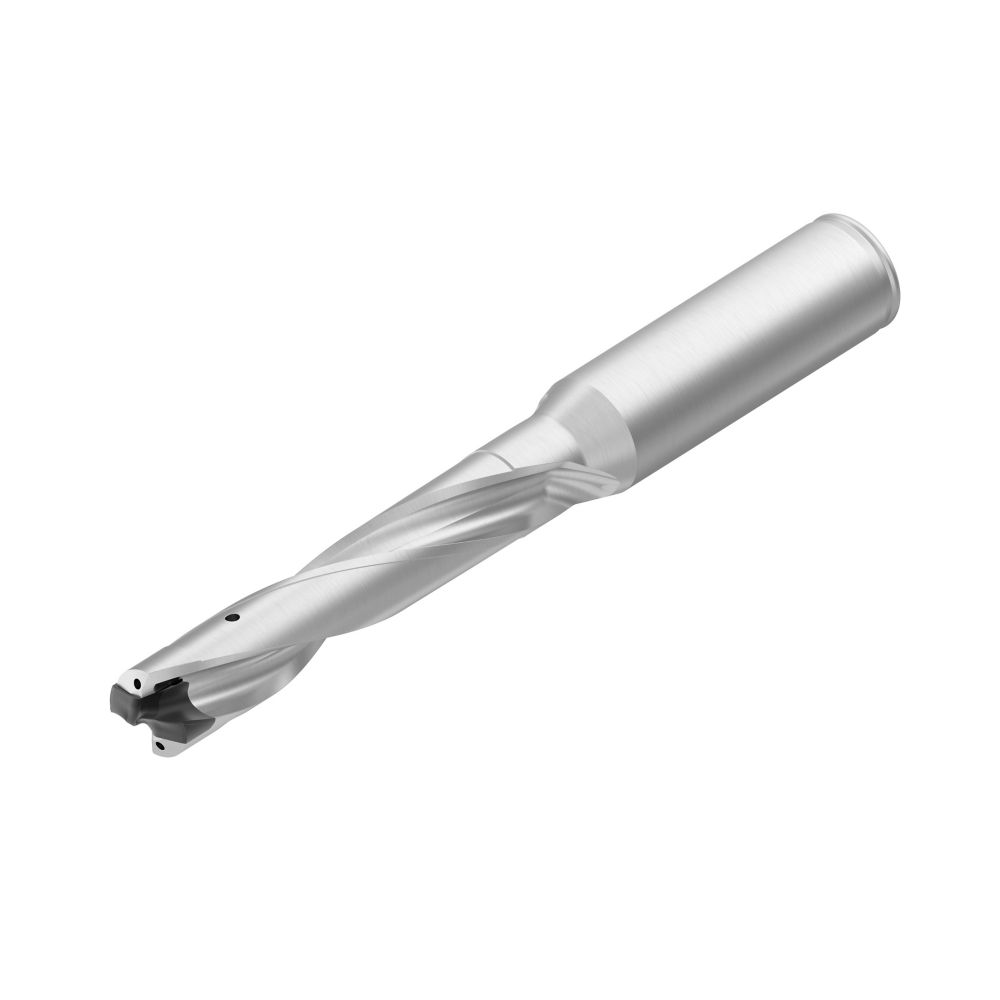

Kennametal • KSEM™ • Drill Body • 5xD • SS Shank • Inch • KSEM0516R5SS075
Kennametal • KSEM™ • Drill Body • 5xD • SS Shank • Inch • KSEM0516R5SS075 - Image 2

Kennametal • KSEM™ • Drill Body • 5xD • SS Shank • Inch • KSEM0516R5SS075

SKU: KEN1786059S/C: 1786059
Usually ships in 5 daysExcluding weekends / Subject to availability

$317.02inc
GST

Price Match

Modular Drilling • Straight Shank (SS)

  • The central locking screw mechanism ensures secure clamping of the insert, resulting in process safety and long tool life for both the drill body and the insert
  • Internal coolant supply directly to the cutting zone, for extended tool life and efficient chip evacuation
More Info
View all:
Technical Details
Adapter Style Machine SideStraight-Cylindrical
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Frac [D]3/4
Adapter/Shank/Bore Dia Inch [D]0.7500
Adapter/Shank/Bore Dia Metric [D]19.0500
Body Dia Workpiece Side Inch [D2]0.5048
Body Dia Workpiece Side Metric [D2]12.8200
Body Material GroupSteel
Clamping Length Inch [L9]2.0000
Clamping Length Metric [L9]50.800
Clamping LG Mach Side Inch [L9MS]2.0000
Clamping LG Mach Side Metric [L9MS]50.8000
Coolant Entry StyleConcentric Axial Coolant
Coolant ExitAngular Axial Coolant Exit
Coolant Hole Dia Inch [A]0.1378
Coolant Hole Dia Metric [A]3.5000
Coolant SupplyYes
Drill Dia Max Inch [D1MAX]0.5314
Drill Dia Max Metric [D1MAX]13.5000
Drill Diameter Min Inch [D1]0.5160
Drill Diameter Min Metric [D1]13.1060
Drill Flute DesignHelical Flute
Drill Point Length Inch [L5]0.0818
Drill Point Length Metric [L5]2.0790
Drill Tool DesignS-Steel Body
FamilyKSEM
Flute Length Inch [L3]3.1300
Flute Length Metric [L3]79.5020
Functional Length Inch [LF]4.8819
Functional Length Metric [LF]124.0000
Gage Ins 1 First Dia OutsideKSEM0516
Hand of ToolR - Right
Ins Atch LG Hldr Inch [LATTH]4.8819
Ins Atch LG Hldr Metric [LATTH]124.0000
Insert ShapeKSEM Drill
Insert/Blade Seat Size [SSC]C
Length/Diameter Ratio [L4/D1]5
Max Drill Depth Inch [L4]2.5781
Max Drill Depth Metric [L4]65.4840
Num of Insert Cutting Dia 11
Number of Flutes2
Overall Length Inch [L]5.2500
Overall Length Metric [L]133.3500
Protruding Length Inch [LPR]5.2500
Protruding Length Metric [LPR]133.3500
Shank Length Inch [LS]2.0000
Shank Length Metric [LS]50.8000
Tool Assembly Length Inch [LTA]4.8819
Tool Assembly Length Metric [LTA]124.0000
