Kennametal • KSEM™ • Drill Body • 5xD • SSF Shank • Inch • KSEM0547R5SSF075
Kennametal • KSEM™ • Drill Body • 5xD • SSF Shank • Inch • KSEM0547R5SSF075 - Image 2

Kennametal • KSEM™ • Drill Body • 5xD • SSF Shank • Inch • KSEM0547R5SSF075

SKU: KEN1785288S/C: 1785288
Usually ships in 5 daysExcluding weekends / Subject to availability

$320.65inc
GST

Price Match

Modular Drilling • Flanged Shank with Flat (SSF)

  • The central locking screw mechanism ensures secure clamping of the insert, resulting in process safety and long tool life for both the drill body and the insert
  • Internal coolant supply directly to the cutting zone, for extended tool life and efficient chip evacuation
More Info
View all:

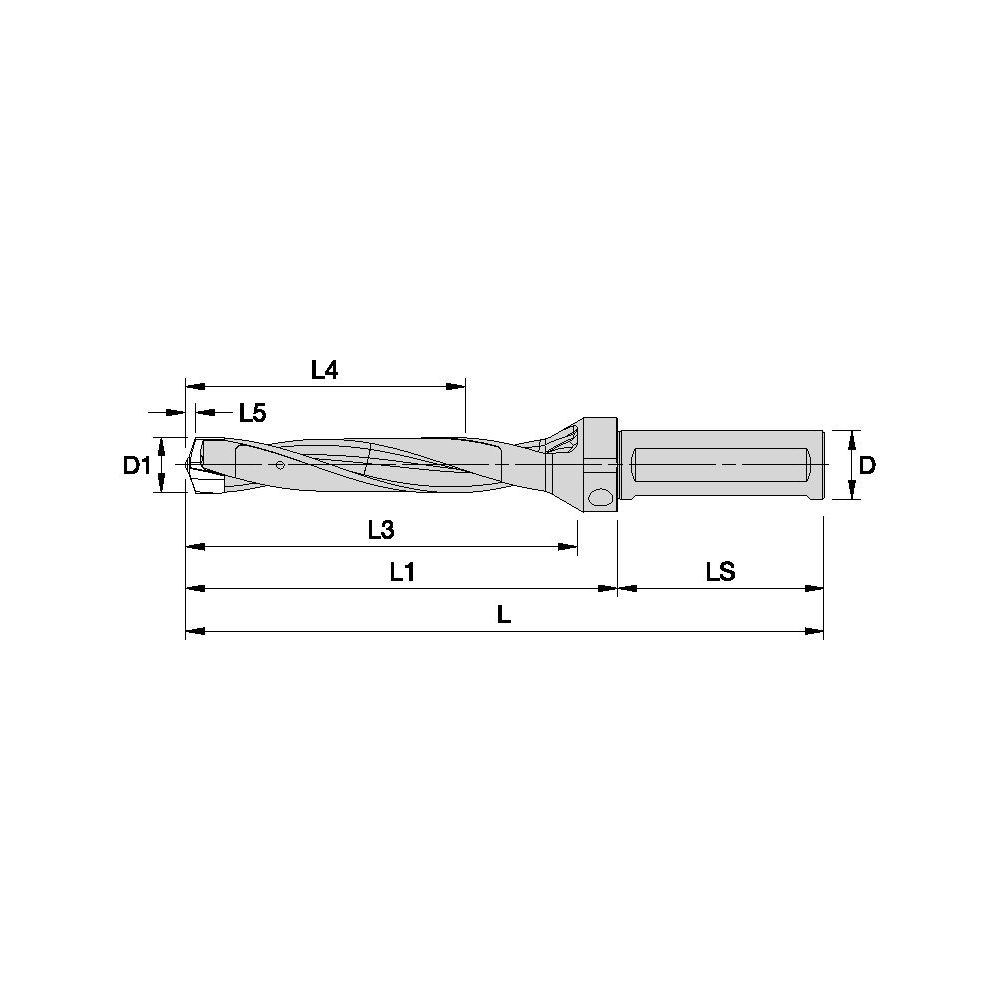

Technical Details
Adapter Style Machine SideCylindrical Shank 2 Flats
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Frac [D]3/4
Adapter/Shank/Bore Dia Inch [D]0.7500
Adapter/Shank/Bore Dia Metric [D]19.0500
Body Dia Workpiece Side Inch [D2]0.5361
Body Dia Workpiece Side Metric [D2]13.6200
Body Material GroupSteel
Clamping Length Inch [L9]2.0000
Clamping Length Metric [L9]50.800
Clamping LG Mach Side Inch [L9MS]2.0000
Clamping LG Mach Side Metric [L9MS]50.8000
Coolant Entry StyleAxial & Radial Coolant
Coolant ExitAngular Axial Coolant Exit
Coolant Size Radial [CF]1/8-27 NPT
Coolant SupplyYes
Coolant Supply Size [CS]1/8-27 NPT
Drill Dia Max Inch [D1MAX]0.5667
Drill Dia Max Metric [D1MAX]14.3940
Drill Diameter Min Inch [D1]0.5470
Drill Diameter Min Metric [D1]13.8940
Drill Flute DesignHelical Flute
Drill Point Length Inch [L5]0.0868
Drill Point Length Metric [L5]2.2050
Drill Tool DesignS-Steel Body
Drill Tool StyleIndexable Drill
FamilyKSEM
Flute Length Inch [L3]3.2300
Flute Length Metric [L3]82.0420
Functional Length Inch [LF]3.7390
Functional Length Metric [LF]94.9700
Gage Ins 1 First Dia OutsideKSEM0547
Gage Length Inch [L1]4.1250
Gage Length Metric [L1]104.7750
Hand of ToolR - Right
Ins Atch LG Hldr Inch [LATTH]3.7390
Ins Atch LG Hldr Metric [LATTH]94.9700
Insert ShapeKSEM Drill
Insert/Blade Seat Size [SSC]B
Length/Diameter Ratio [L4/D1]5
Max Drill Depth Inch [L4]2.7344
Max Drill Depth Metric [L4]69.4540
Maximum Body Diameter Inch [D5]1.1250
Maximum Body Diameter Metric [D5]28.5750
Num of Insert Cutting Dia 11
Number of Flutes2
Overall Length Inch [L]6.1250
Overall Length Metric [L]155.5750
Shank Length Inch [LS]2.0000
Shank Length Metric [LS]50.8000
Tool Assembly Length Inch [LTA]3.7390
Tool Assembly Length Metric [LTA]94.9700
