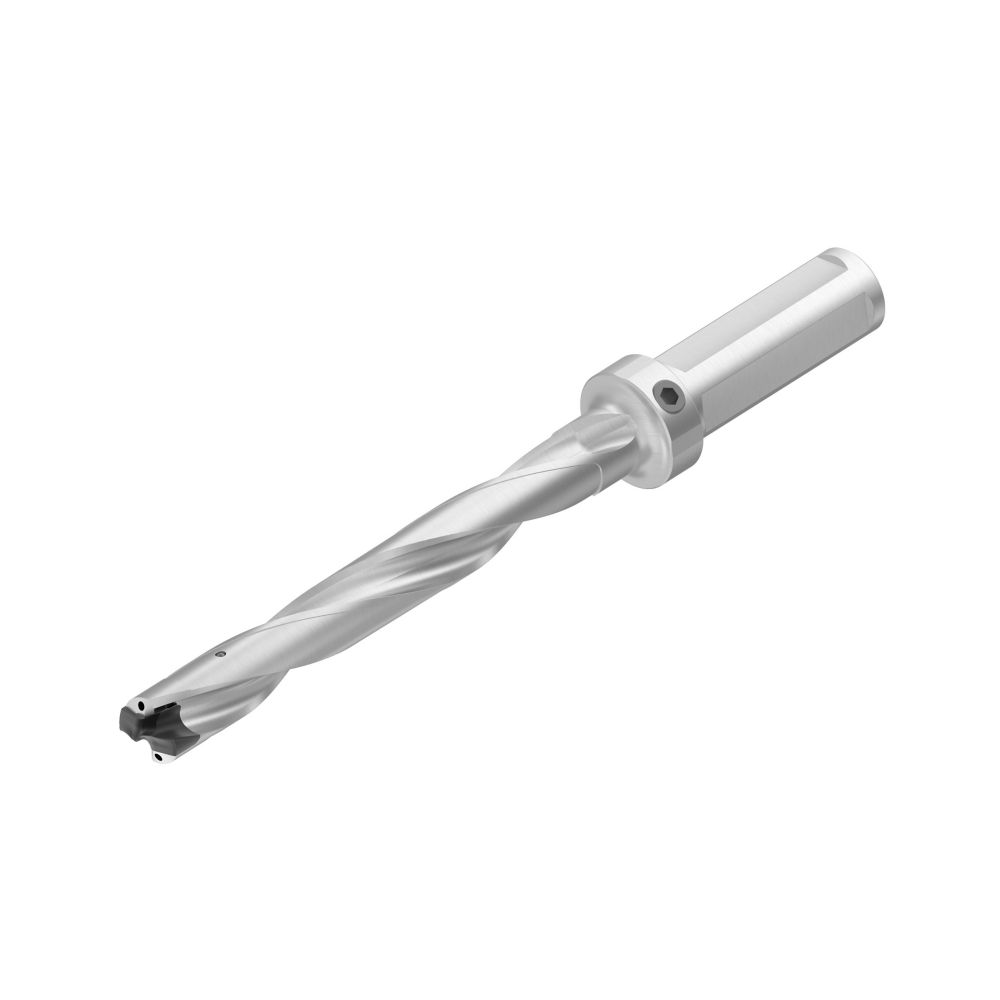

Kennametal • KSEM™ • Drill Body • 8 x D • SSF Shank • Inch • KSEM1000R8SSF100

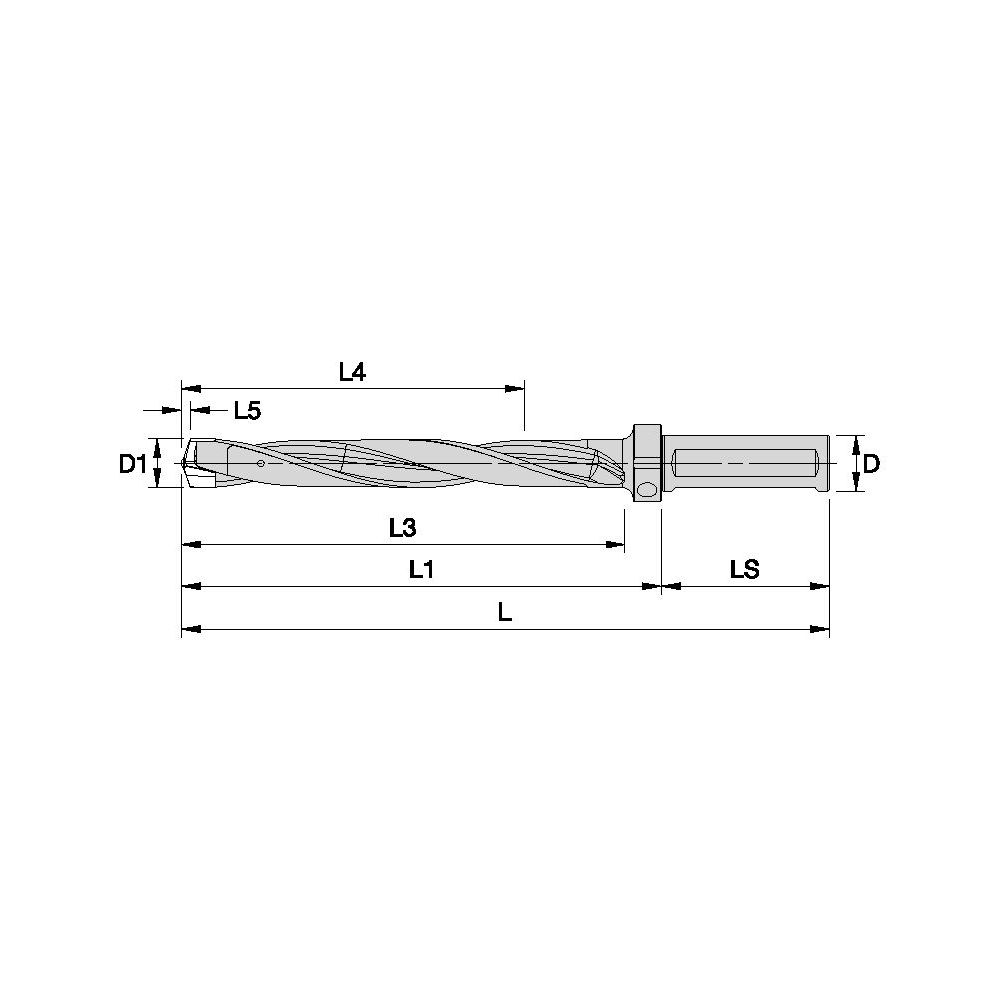

Kennametal • KSEM™ • Drill Body • 8 x D • SSF Shank • Inch • KSEM1000R8SSF100 - Image 2

Kennametal • KSEM™ • Drill Body • 8 x D • SSF Shank • Inch • KSEM1000R8SSF100

SKU: KEN1517256S/C: 1517256
Usually ships in 5 daysExcluding weekends / Subject to availability

$853.05inc
GST

Price Match

Modular Drilling • Flanged Shank with Flat (SSF)

  • The central locking screw mechanism ensures secure clamping of the insert, resulting in process safety and long tool life for both the drill body and the insert.
  • Internal coolant supply directly to the cutting zone, for extended tool life and efficient chip evacuation.
More Info
View all:
Technical Details
Adapter Style Machine SideCylindrical Shank 2 Flats
Adapter Type Machine SideCylindrical
Adapter/Shank/Bore Dia Frac [D]1
Adapter/Shank/Bore Dia Inch [D]1.0000
Adapter/Shank/Bore Dia Metric [D]25.4000
Body Dia Workpiece Side Inch [D2]0.9892
Body Dia Workpiece Side Metric [D2]25.1200
Body Material GroupSteel
Clamping Length Inch [L9]3.0000
Clamping Length Metric [L9]76.200
Clamping LG Mach Side Inch [L9MS]3.0000
Clamping LG Mach Side Metric [L9MS]76.2000
Coolant Entry StyleAxial & Radial Coolant
Coolant ExitAngular Axial Coolant Exit
Coolant Size Radial [CF]1/8-27 NPT
Coolant SupplyYes
Coolant Supply Size [CS]1/4-18 NPT
Drill Dia Max Inch [D1MAX]1.0197
Drill Dia Max Metric [D1MAX]25.9000
Drill Diameter Min Frac [D1]1
Drill Diameter Min Inch [D1]1.0000
Drill Diameter Min Metric [D1]25.4000
Drill Flute DesignHelical Flute
Drill Point Length Inch [L5]0.1538
Drill Point Length Metric [L5]3.9080
Drill Tool DesignS-Steel Body
FamilyKSEM
Flute Length Inch [L3]9.0063
Flute Length Metric [L3]228.7600
Functional Length Inch [LF]9.0226
Functional Length Metric [LF]229.1800
Gage Ins 1 First Dia OutsideKSEM1000
Gage Length Inch [L1]9.6250
Gage Length Metric [L1]244.4750
Hand of ToolR - Right
Ins Atch LG Hldr Inch [LATTH]9.0226
Ins Atch LG Hldr Metric [LATTH]229.1800
Insert ShapeKSEM Drill
Insert/Blade Seat Size [SSC]5
Length/Diameter Ratio [L4/D1]8
Max Drill Depth Inch [L4]8.0000
Max Drill Depth Metric [L4]203.2000
Maximum Body Diameter Inch [D5]1.3750
Maximum Body Diameter Metric [D5]34.9250
Num of Insert Cutting Dia 11
Number of Flutes2
Overall Length Inch [L]12.6250
Overall Length Metric [L]320.6750
Shank Length Inch [LS]3.0000
Shank Length Metric [LS]76.2000
Tool Assembly Length Inch [LTA]9.0226
Tool Assembly Length Metric [LTA]229.1800
