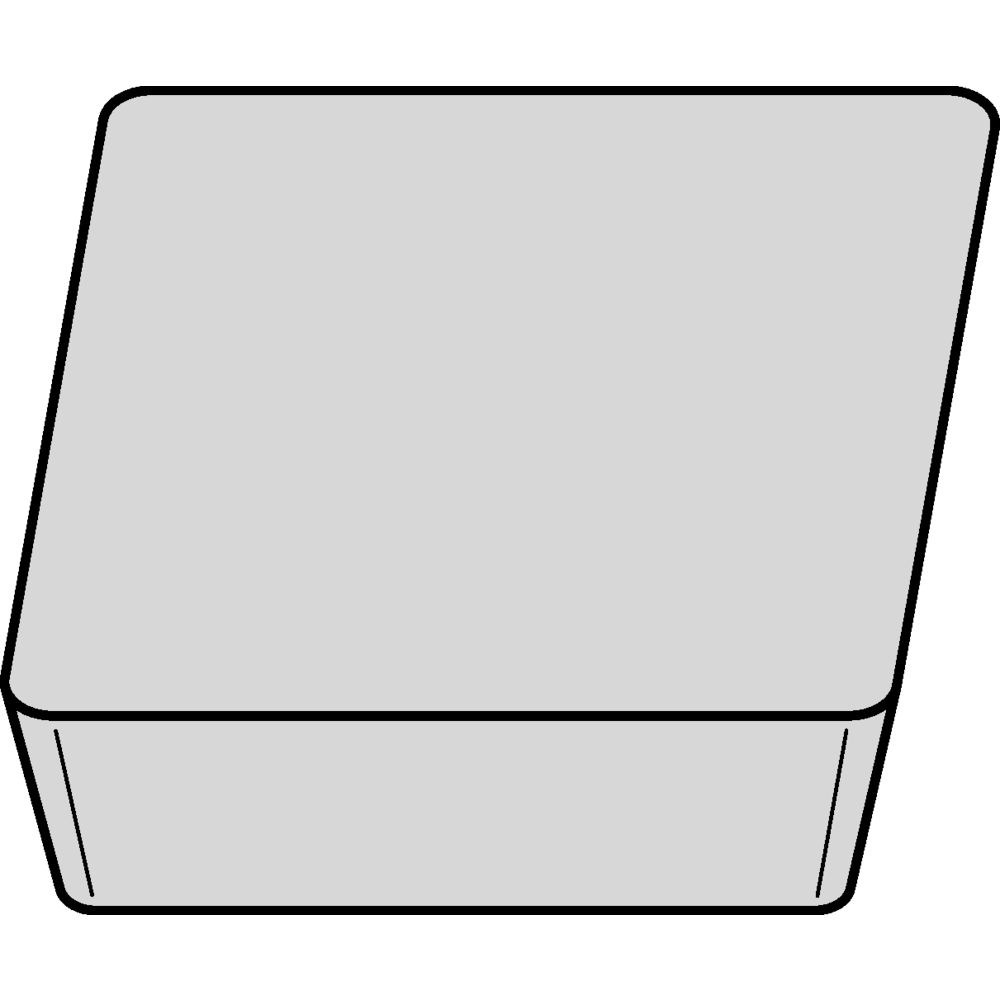

Kennametal • CPGN120308 KC730
Kennametal • CPGN120308 KC730 - Image 2

Kennametal • CPGN120308 KC730

SKU: KEN1183375S/C: 1183375
Usually ships in 5 daysExcluding weekends / Subject to availability
Available in packs of 5. Pricing is for individual items in the pack.

$17.95inc
GSTEACH

Price Match

Kendex™ Positive Inserts

This product doesn't have any features.

More Info
View all:

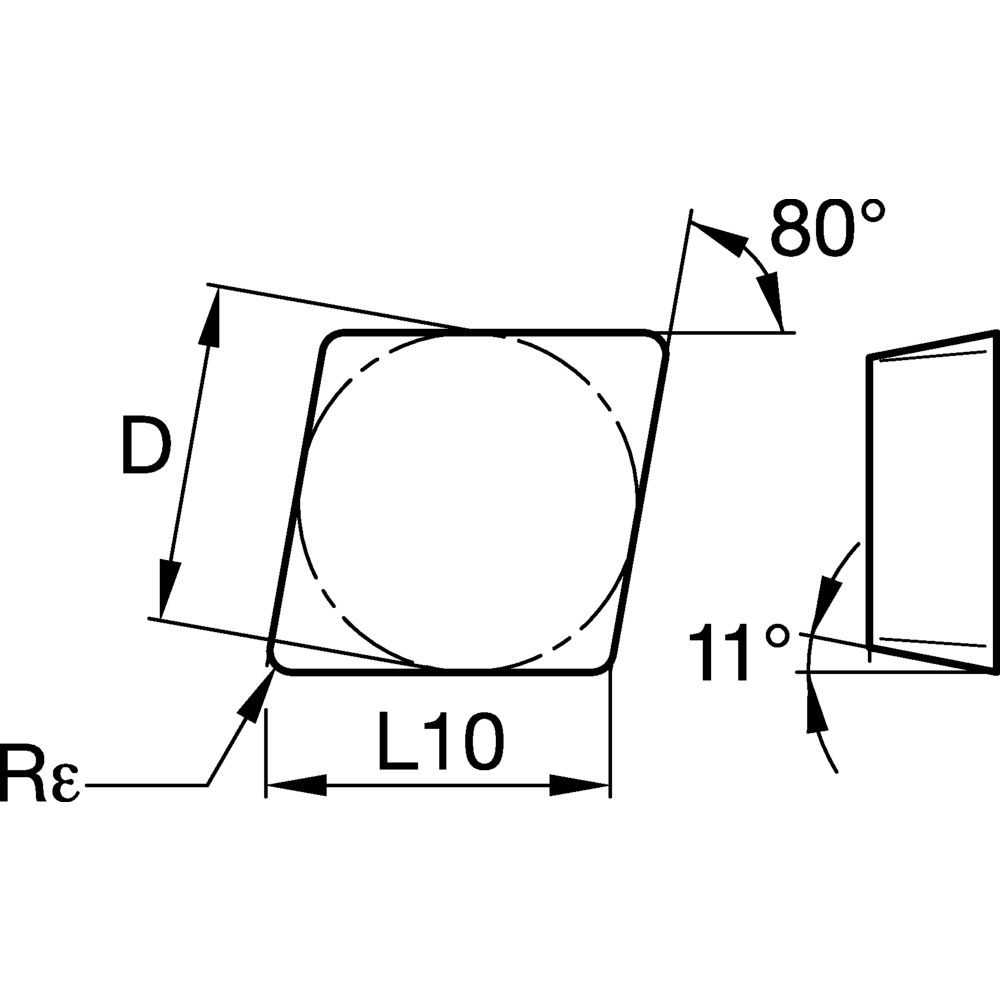

Technical Details
Chipbreaker0-No Chipbreaker
Clearance Angle Major [ALPHAN]11.000
Clearance Angle Minor [ALPHANM]11.000
CoatingTiN
Corner Radius Frac [REPSILON]1/32
Corner Radius Inch [REPSILON]0.031250
Corner Radius Metric [REPSILON]0.8000
Cutting Tool MaterialCarbide
Engineering Insert GeometryGN
Hand of ToolN - Neutral
Ins Cut Edge Length Inch [L10]0.5077
Ins Cut Edge Length Metric [L10]12.8960
Insert Gage Dimension Inch [M]0.1216
Insert Gage Dimension Metric [M]3.0880
Insert HandN - Neutral
Insert IC Size Fraction [D]1/2
Insert IC Size Inch [D]0.5000
Insert IC Size Metric [D]12.7000
Insert Mounting1-Without Fixing Hole
Insert Num of Cutting Edges2
Insert ShapeC-Diamond/Rhombic 80
Insert Thickness Fraction [S]1/8
Insert Thickness Inch [S]0.1250
Insert Thickness Metric [S]3.1800

We don't have any datasheets for this product.

We don't have any media for this product.

This product is handy for all trades.
